Wireless Array
Viewing Status on the Wireless Array 141
IDS Statistics
The Xirrus Array employs a number of IDS/IPS (Intrusion Detection System/
Intrusion Prevention System) strategies to detect and prevent malicious attacks on
the wireless network. This status-only window provides detailed intrusion
detection statistics for the selected IAP.
Note that you must have Intrusion Detection Mode enabled to collect IDS
statistics. See “Intrusion Detection” on page 348. Information about IDS events is
discussed in the “IDS Event Log Window” on page 155.

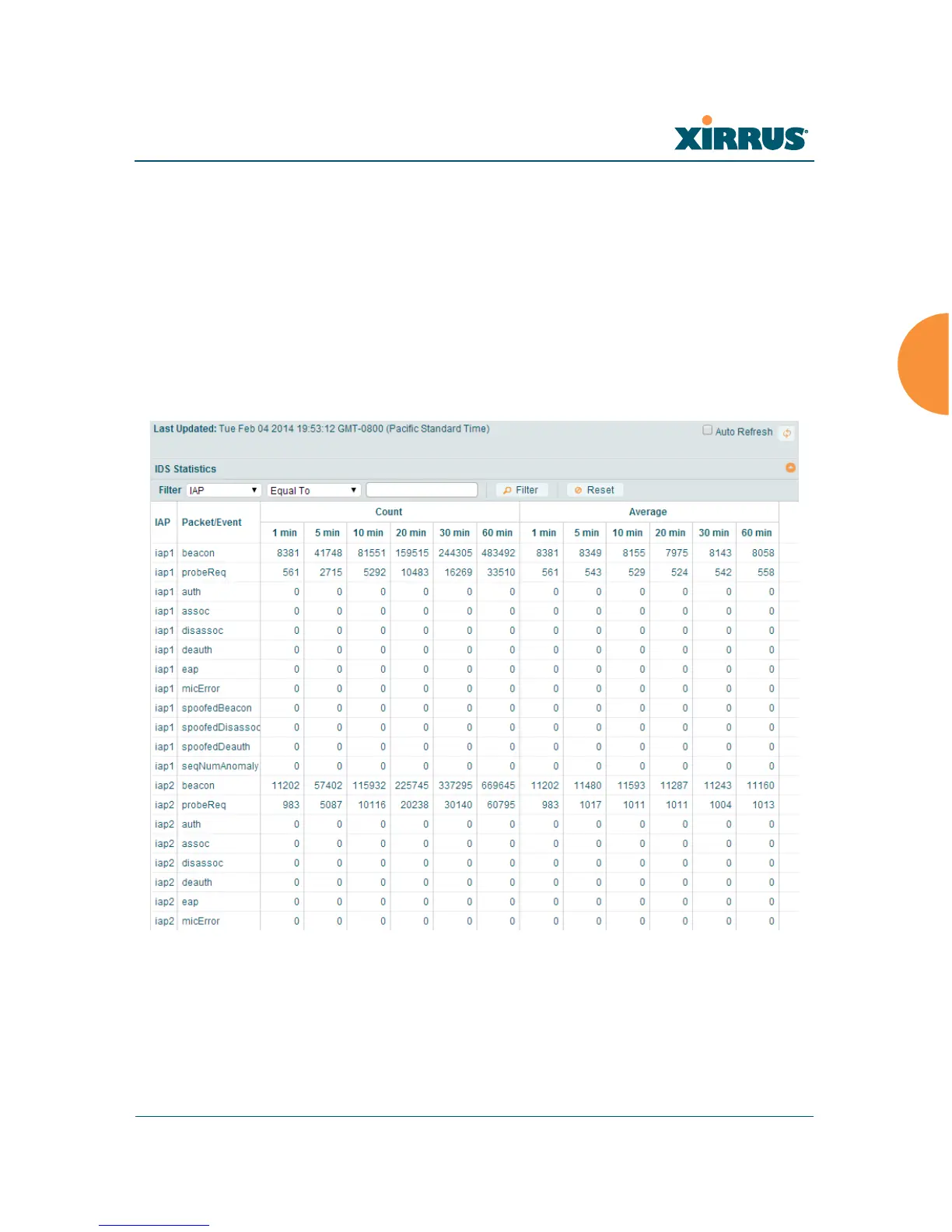

Figure 84. IDS Statistics Page
Use the filter feature to show only information for a selected IAP or for selected
event types. Select the type of Filter: IAP to select IAPs, or Packet/Event to select
particular attack types. Select the type of string matching, for example, Begins
with or Contains. Then enter the string to be matched and click the Filter button.
