Wireless Array
16 Introduction

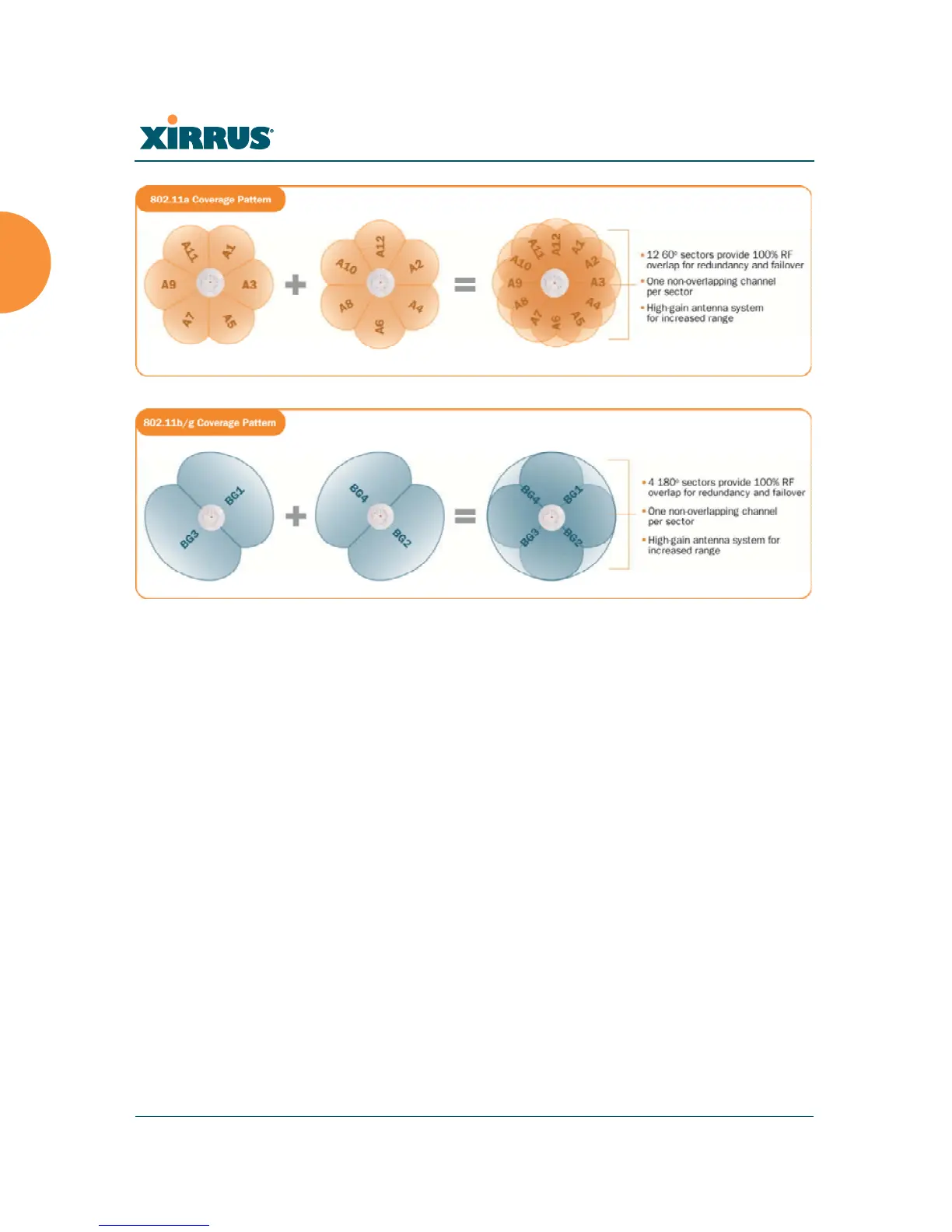

Figure 7. Coverage Schemes (XR-7230 shown)
802.11a/n
Delivers 60° wireless coverage per IAP, with 6 dBi of gain.
802.11b/g/n
Delivers 180° wireless coverage, with 3 dBi of gain.
802.11a/b/g/n (monitor only)
Delivers 360° wireless coverage, with 2 dBi of gain.
Non-Overlapping Channels
Complete use of non-overlapping channels limits interference and delivers
maximum capacity. On the XR-7630, up to 16 non-overlapping channels are fully
utilized across the 5GHz and 2.4GHz spectrums.
