Wireless Array
150 Viewing Status on the Wireless Array
By Category: Check this box if you wish to analyze and list traffic by
what types of applications are in use, such as Games or Collaboration.
Auto Refresh instructs the Array to periodically refresh this window
automatically. Use the Refresh button to refresh the window right now.
Pie Charts

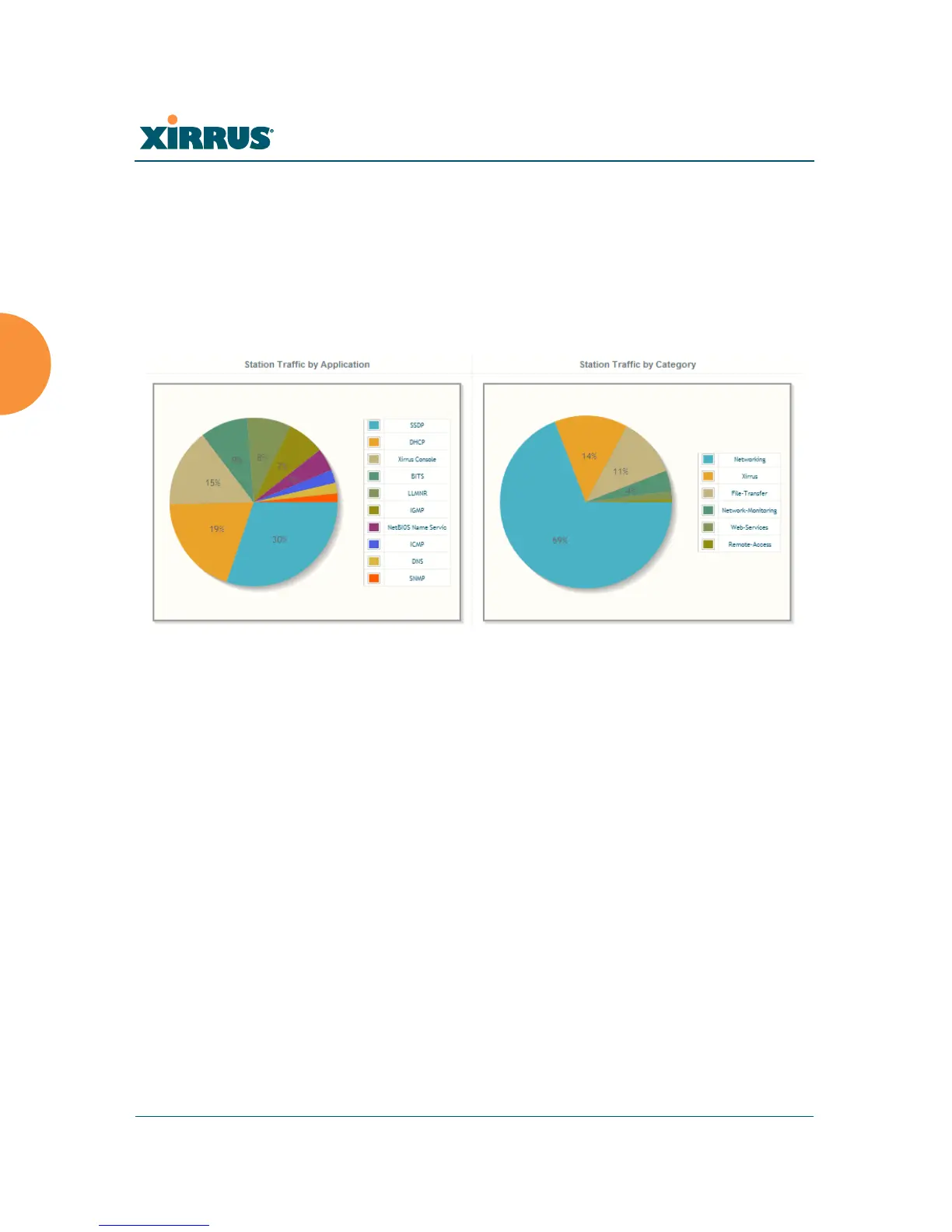

Figure 90. Application Control (Pie Charts)
These charts provide a quick way to determine how your wireless bandwidth is
being used. There are charts for Station Traffic and/or Array Management
Tra ff ic , depending on which checkboxes you selected. Similarly, there are charts
for By Application and/or By Category, depending on your selections. The top
ten applications or categories are listed, by percentage of bandwidth usage.
