XPENG P7 2023 - EV System Layout

Instructions for XPENG Owners
14

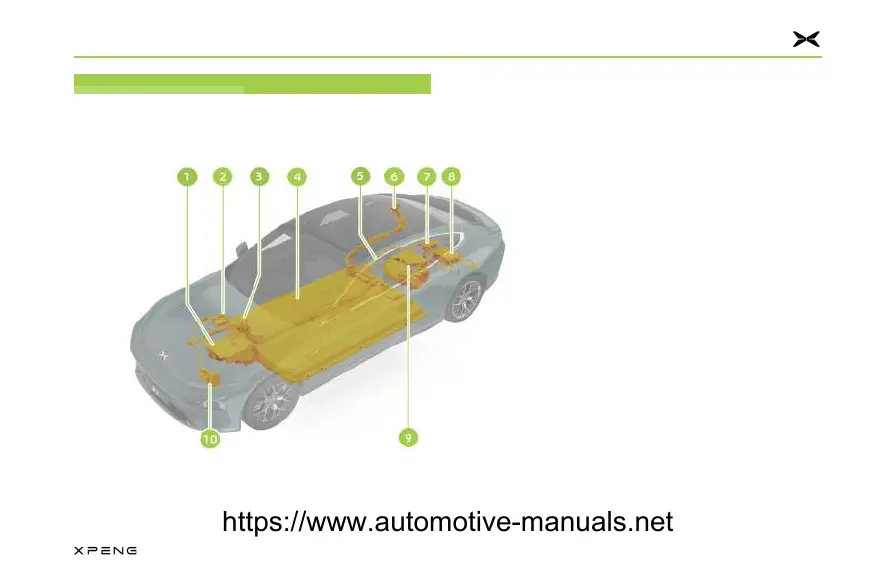

EV System LayoutEV System Layout
System LayoutSystem Layout
1. Front electric drive
system*
2. PTC heater
3. 4WD HV power
distribution box*
4. Traction battery Refer
to Page 15
5. 3-in-1 HV power supply
cable
6. Charging port
7. 2WD HV power
distribution box
8. CCS/DCDC converter
9. Rear electric drive
system
10. A/C compressor
