HOW TO USE YOUR CARAVAN’S EQUIPMENT
Other Internal Doors
INTERNAL DOORS
Toilet/Shower Room Doors
Operation from within the shower
room

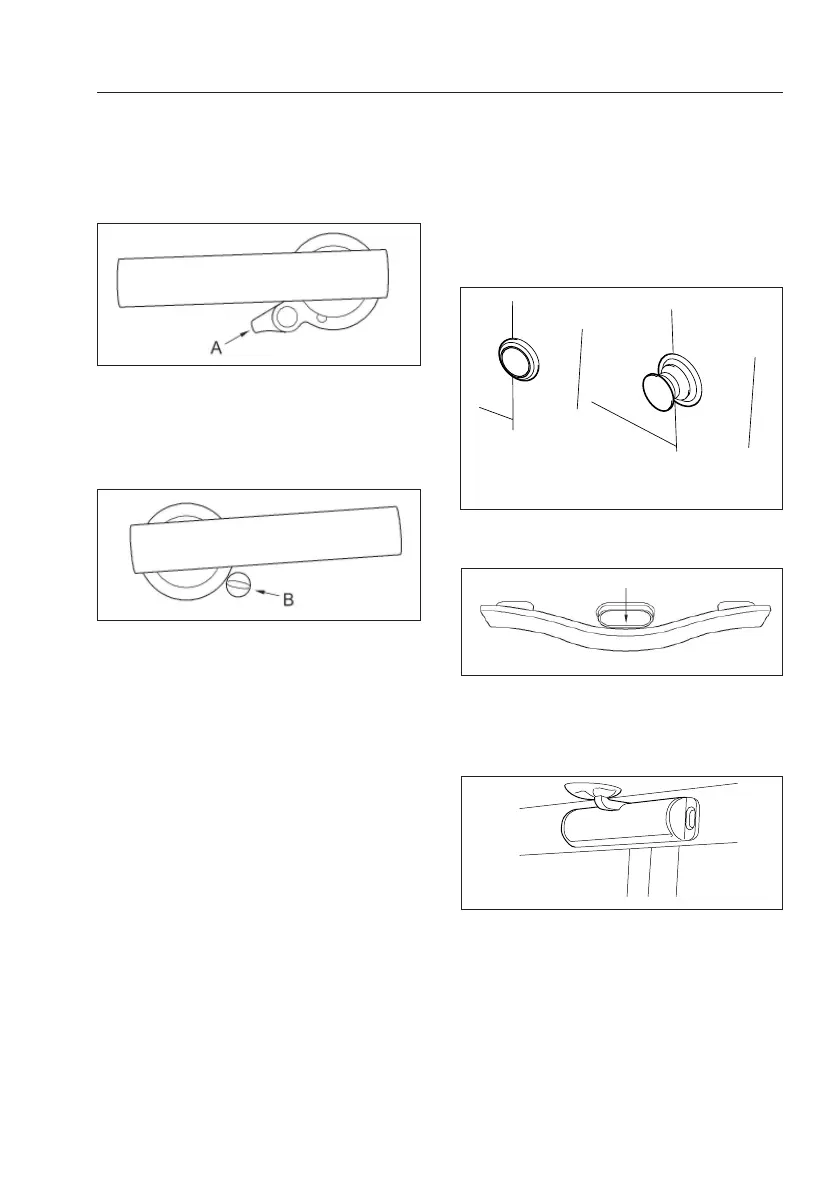

To lock the door, push the small lever down
(identified in the drawing as A) then to unlock,
push this lever back to the original position.
Operation from outside the shower
room
To open and close the door, push the lever
down.
If the door is locked and needs to be opened,
it can be opened by inserting a coin into the
lower slot (identified in the drawing B) and
turning the slot.
OTHER INTERNAL DOORS
Other internal doors such as the wardrobe
and table storage locker are fitted with a 2-
position button lock. Push the button to lock
the door and the button should remain flush
with the door. Push the button again to
release and the button should then protrude
from the door surface.
Paddle Latch (Where Fitted)
To open the locker, push the paddle
downwards and pull the handle towards you.
Concealed Latch (Where Fitted)
To open the locker, press the latch and pull
the door towards you.
