HOW TO USE YOUR CARAVAN’S EQUIPMENT
ALDE HEATING (3030 CONTROL PANEL)
(AFFINITY/CAPIRO/CRUSADER/CAMINO/BUCCANEER)
Turning the boiler on and off
Start the system by pressing the On/Off button on the control panel (Fig. 1). The start image is
displayed (Fig. 2) and the system starts with the last selected settings. When the heating system
and control panel are on, a green diode lights up on the On/Off button.
To turn off the heating system, press the on/off button. The control panel and LED switch off.

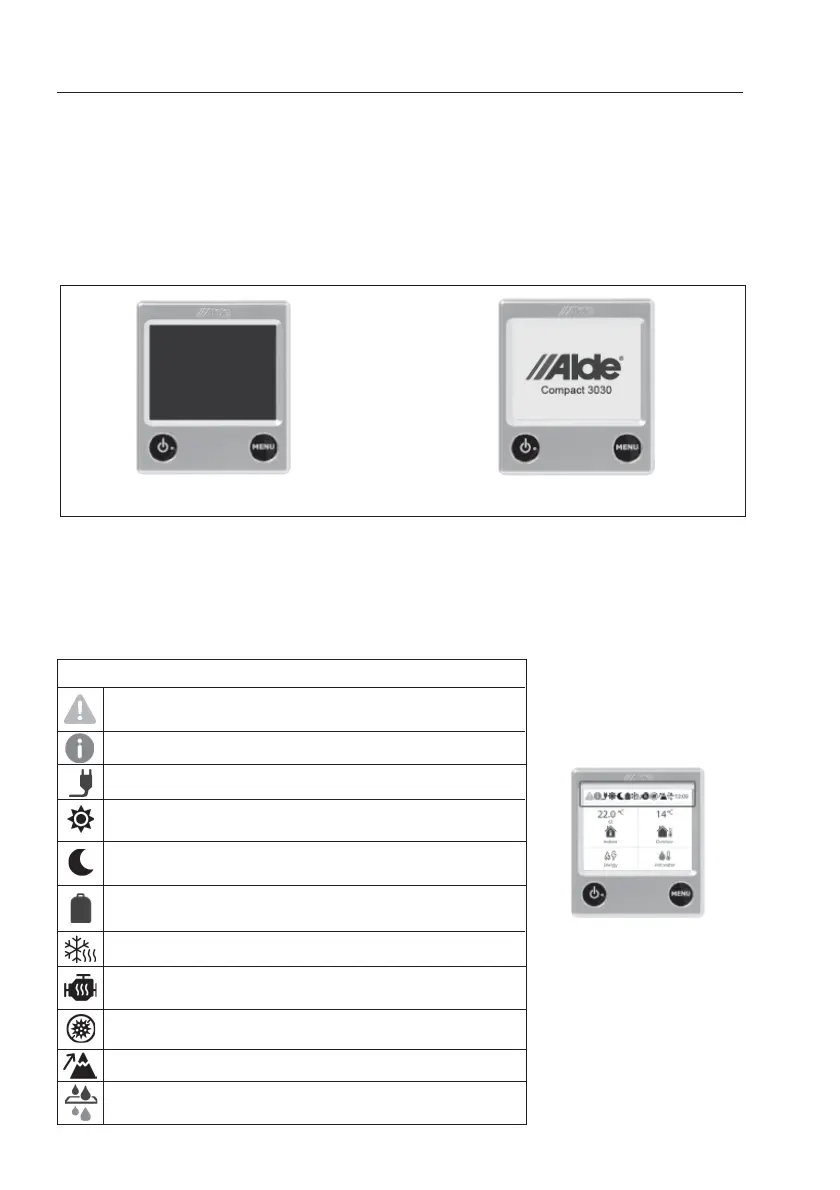

Fig 1. System switched off, LED off
Fig 2. System starts, LED lights up
Note: If the “Status page” is set to “Dark”, the Control Panel goes dark when it enters sleep
mode, but lights up when you touch the screen.
Status Screen
When the control panel enters sleep mode, the status screen appears. Tap the respective
symbol on the status screen to reach its submenu. Press the “MENU” button to reach the
Settings menu. Features marked with asterisks (*) are accessories.
Operating messages. Displayed if temporary service interruption
occurs, this is not an error. Await. See Operating messages.
Information. Flashes when there is an information message.
230V. Electricity (230V) is connected to the boiler.
Day Mode. Appears when the feature is on and turns green
when it is active.
Symbol description of the top row of the status screen (Fig. 3)
Fig 3. Top row of
status screen
Night Mode. Appears when the feature is on and turns green
when it is active.
LPG bottle full/empty*. Appears if a DuoControl is installed.
Black bottle = Gas available. Red bottle = One bottle empty.
EisEx*. Appears if EisEx is turned on and turns green when active.
Engine heating*. Shown if the engine heater is installed and
turned on and turns green when active.
Anti-bacteria. The boiler’s automatic bacterial elimination setting
is running.
High altitude mode. Flashes if the high altitude mode is active.
Alde AquaClear UV-C*. Water filter.
To Next Page
