Xplore 304 - Disconnecting Mains Supply When Leaving Site; Overseas Electrical Connection

6-2
GETTING STARTED
the other end of the flexible orange
supply cable. Switch on the main switch
at the site supply point (if appropriate).
(vii) Place any surplus cable under the
caravan. Ensure that the surplus cable is
not coiled up as it could overheat.
(viii) Now switch on the mains isolating switch
within the caravan, this can be found on
the main consumer board.
(ix) Check the RCD is working by pressing
the test button. The 12V system must be
switched off before carrying out this
process. Once pressed all electrical
lights and appliances should cease to
operate. Reset, and then check the
electrical system is operational.
(x) Finally in order to get your 12V system
operational, ensure the 12V switch is in
the ‘ON’ position. Refer to index for
further details on the control panel fitted.
DISCONNECTING MAINS SUPPLY
WHEN LEAVING SITE
(i) Switch ‘OFF’ the RDC in the caravans
distribution unit.
(ii) Remove the male 3 pin plug from the
site supply.
(iii) Disconnect the female 3 pin plug from
the caravan and store the cable in an
appropriate locker.
OVERSEAS ELECTRICAL
CONNECTION
Please note: Connection to a mains voltage
supply OVERSEAS requires particular
attention.
Care must be taken when connecting
supplies abroad since the supplies can be of
REVERSE POLARITY.
The significance of REVERSE POLARITY is
that when equipment is switched off, it may
not be electrically isolated. The only certain
way of making equipment safe is to unplug it.
A means of checking the polarity of the mains
supply when overseas is recommended.
There are available several proprietary
makes of equipment for the purpose.
If it can be achieved, it is preferable to
connect live to live, and neutral to neutral to
maintain full electrical protection.
CHECK all caravan equipment is set-up to
accept the site supply before actually
switching on.

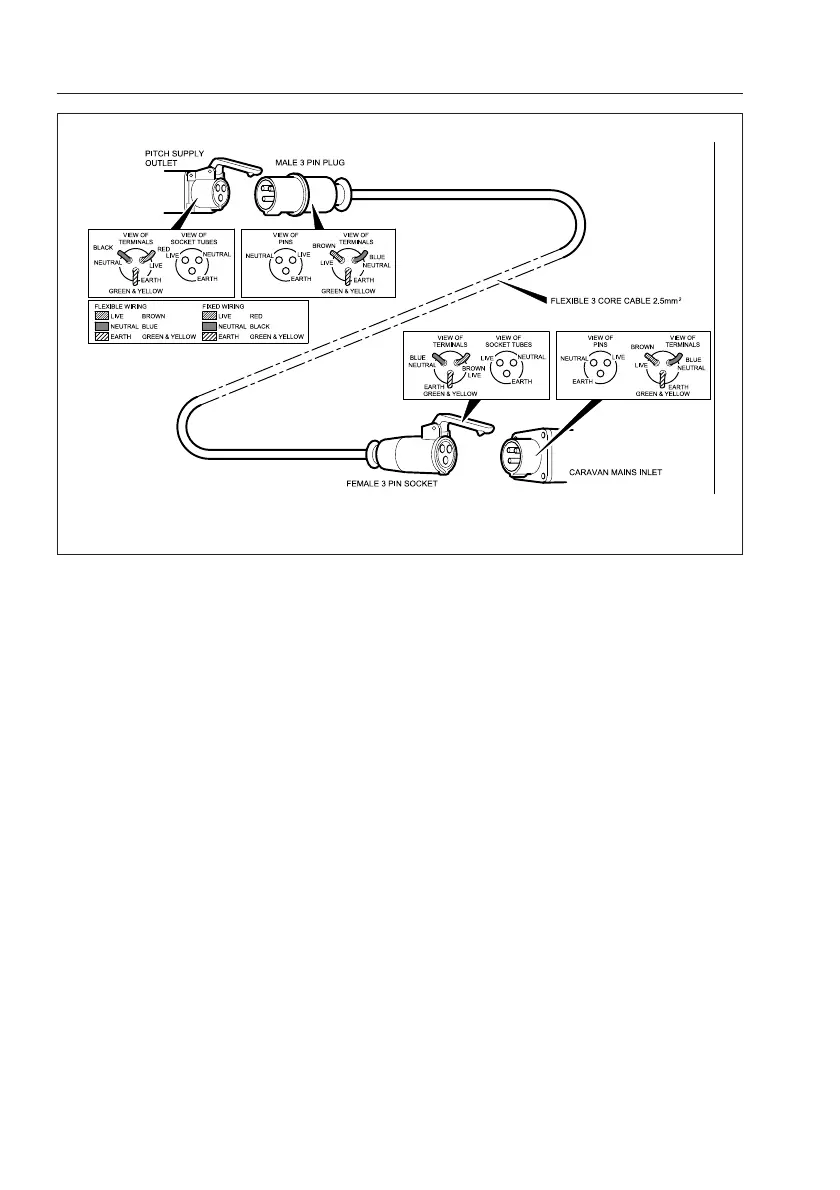

WIRING OF CONNECTING CABLE AND CARAVAN MAINS INLET
WARNING: It is essential that connections are made exactly as shown. If terminal
markings are not in accordance with the above diagram they must be ignored.
