Xplore 304 - Lift up Bed Extensions (Where Fitted)

8-83
HOW TO USE YOUR CARAVAN’S EQUIPMENT
LIFT UP BED EXTENSIONS
(Where Fitted)
The centre dinette bed has lift up extensions
and these are operated by depressing the
lever behind the flap of the hinge. While
pressing the lever the extension flap can then
be lifted into place.
This lever must also be depressed in order to
lower the flap.

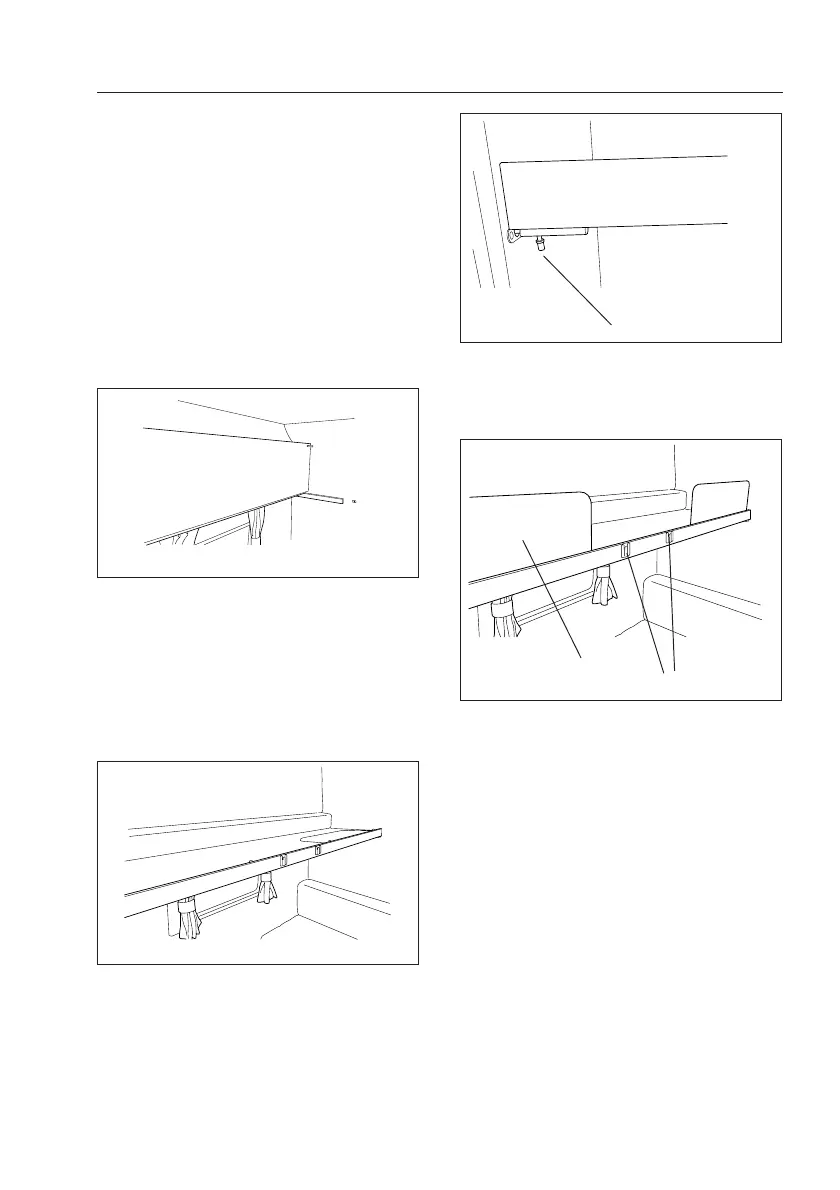

Drop Down Bunk (304 only)
Starting with the bunk locked in the upright
position as shown in Figure 1.
Release the bolts at both ends of the bunk
from this position and lock them into the
open position. Ensure the bolts are locked
in the open position to prevent any
damage to the walls when the bunk is
being lowered.
Next lower the bunk with care into the
position shown in Figure 2.
Once in place, put both of the bolts into
the closed position to secure the bunk
from any unintentional folding. As shown in
Figure 3.
2
Fig 1
Fig 3
Fig 2
Bolt catch in the closed position
Finally, before using the bunk lift both the
safety flaps into upright position as shown in
Figure 4 also attach the provided ladder to
the fixed brackets also shown in Figure 4.
Please note: The maximum recommended
weight for using this bunk is 75 kgs.
3
Fig 4
Safety Flaps
Ladder
