5.5 Main Power board

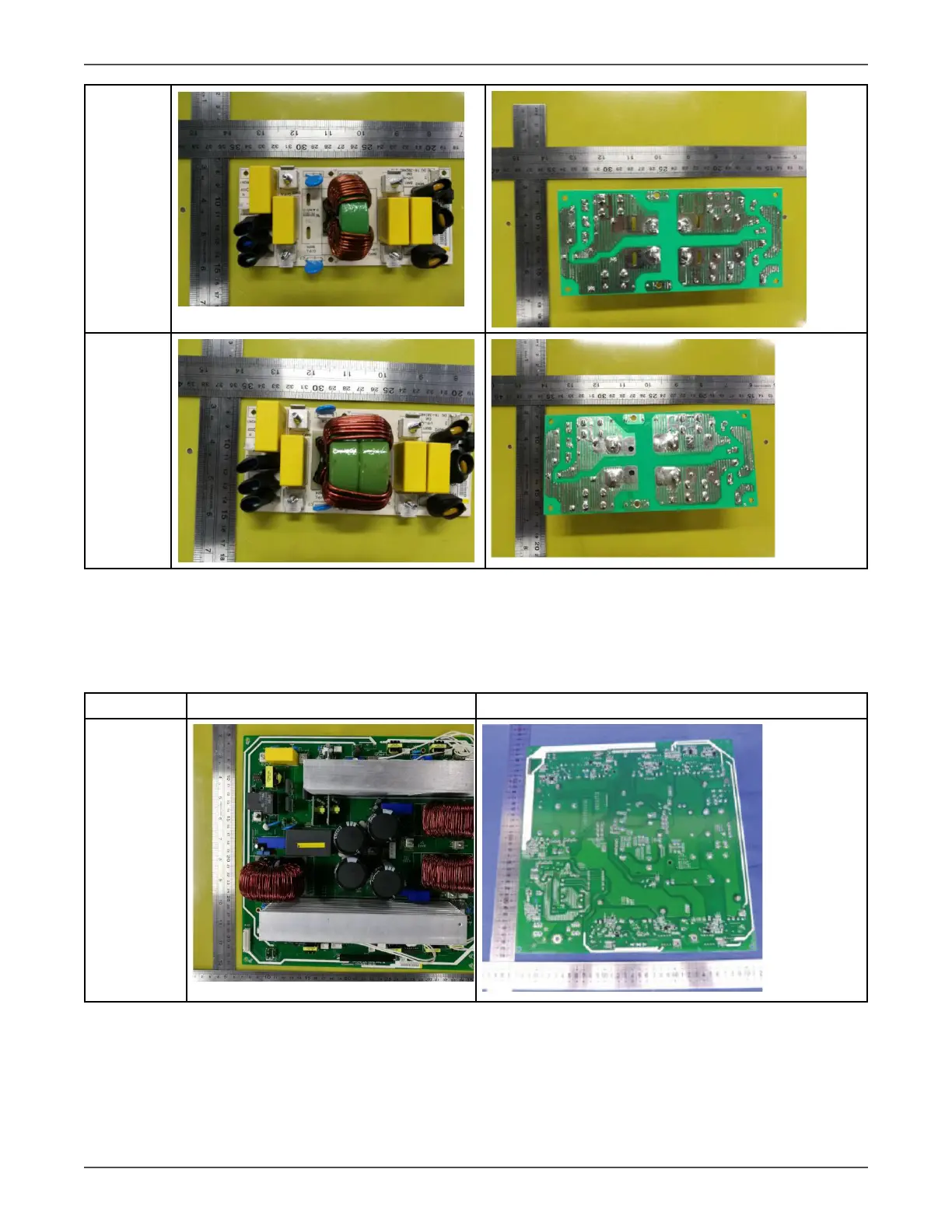

The Main converts the AC/DC power to a pure sine waveform. And then it converts the DC/AC power. There are
many semiconductors and easy-failure components on the board, so it’s required to pay more aenon when
UPS is abnormal.
component side 10k
6k
