Xtreme TX91 - Connecting UPS with Battery Packs

Xtreme Power Conversion Corporaon
TX91 3.8- 10kVA User’s Manual
Page 12
Uninterrupble Power Supply

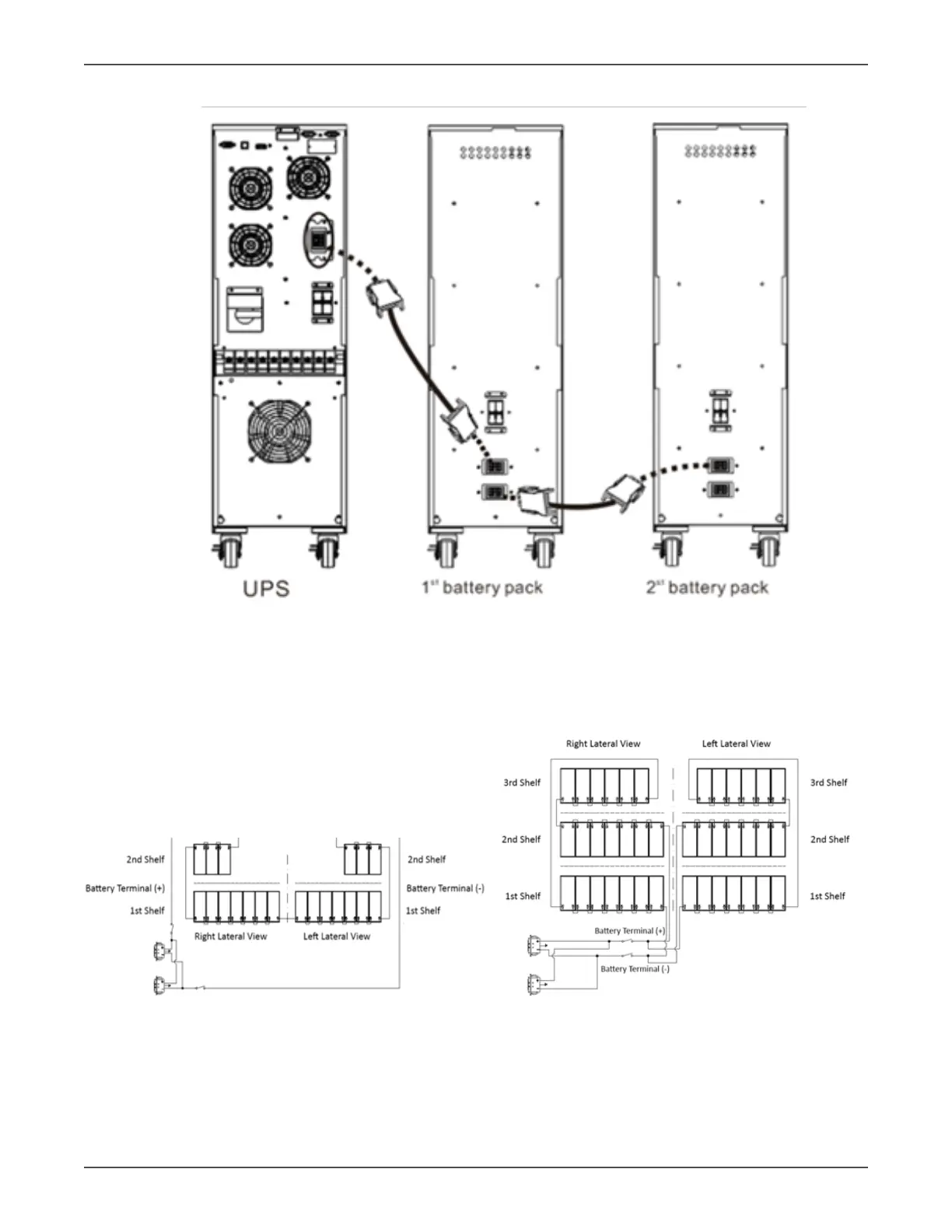

2.5 Connecng UPS with Baery Packs
1. Connect one end of baery connecon cable to Baery DC connector.
2. Connect other end of baery connecon cable to UPS external baery connector.
3. If there is another external baery connect one end of Baery connecon cable to rst
baery pack DC connector. Then connect other end to second baery pack DC connector.
2.6 Baery Wiring Diagram
TX91-BP20 Baery Wiring Diagram TX91-BP40 Baery Wiring Diagram
Figure 2-18 Figure 2-19
