Xylem FLYGT SmartRun SRC 311 User Guide

Introduction and Safety
SRC 311

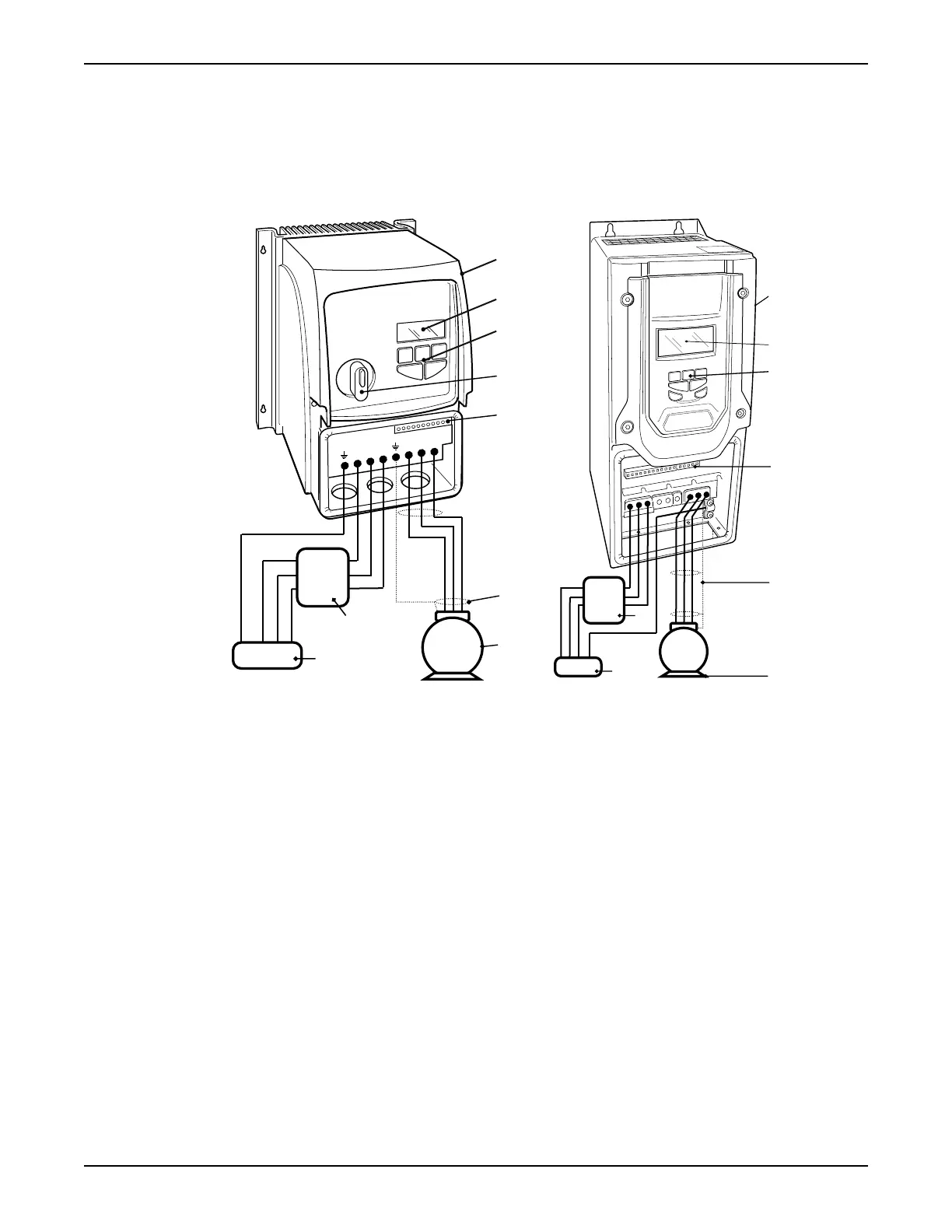

Frame Size 2 - 3 Frame Sizes 4 - 6
4
9
M

PE
1
2
3
5
6
7
8
U
V
W
L3
L2/N
L1/N
L1 L2 L3
M
PEL1
L2
L3
1
2
3
4
5
6
7
8
1. Mechanical mounting, see Mechanical Installation (page 6).
2. Display (Status, Diagnostics, and Programming).
3. Keypad Operations see Display and buttons (page 15).
4. Safe torque off (STO) disabled in SRC 311 application by bridging control terminal (1
and 12) and (9 and 13), for more instructions, see Installation, Operation, and
Maintenance manual.
5. Motor cable Sizes, see Output power and current ratings (page 18).
6. Motor connections, check for Star or Delta connection according to the motor
voltage rating.
Motor Nameplate Details:
• Motor rated voltage
• Motor rated current
• Motor rated frequency
• Motor rated speed (Optional)
7. AC Supply Connection, see Output power and current ratings (page 18).
• 200 – 240 V + / - 10%: 1 / 3–Phase
• 380 – 380 V + / - 10%: 3–Phase
8. Fuses or MCB, see Output power and current ratings (page 18).
9. Applies to switched version only In-built Controls: Power On / Off
Introduction and Safety
2 SRC 311 - SmartRun
™
User guide
