I/O and Cabling Considerations

Shown as

Male to DCE

XYPLEX

105

1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8

22 RNG

20 DTR

DCD 8

GND 7

RCV 3

XMT 2

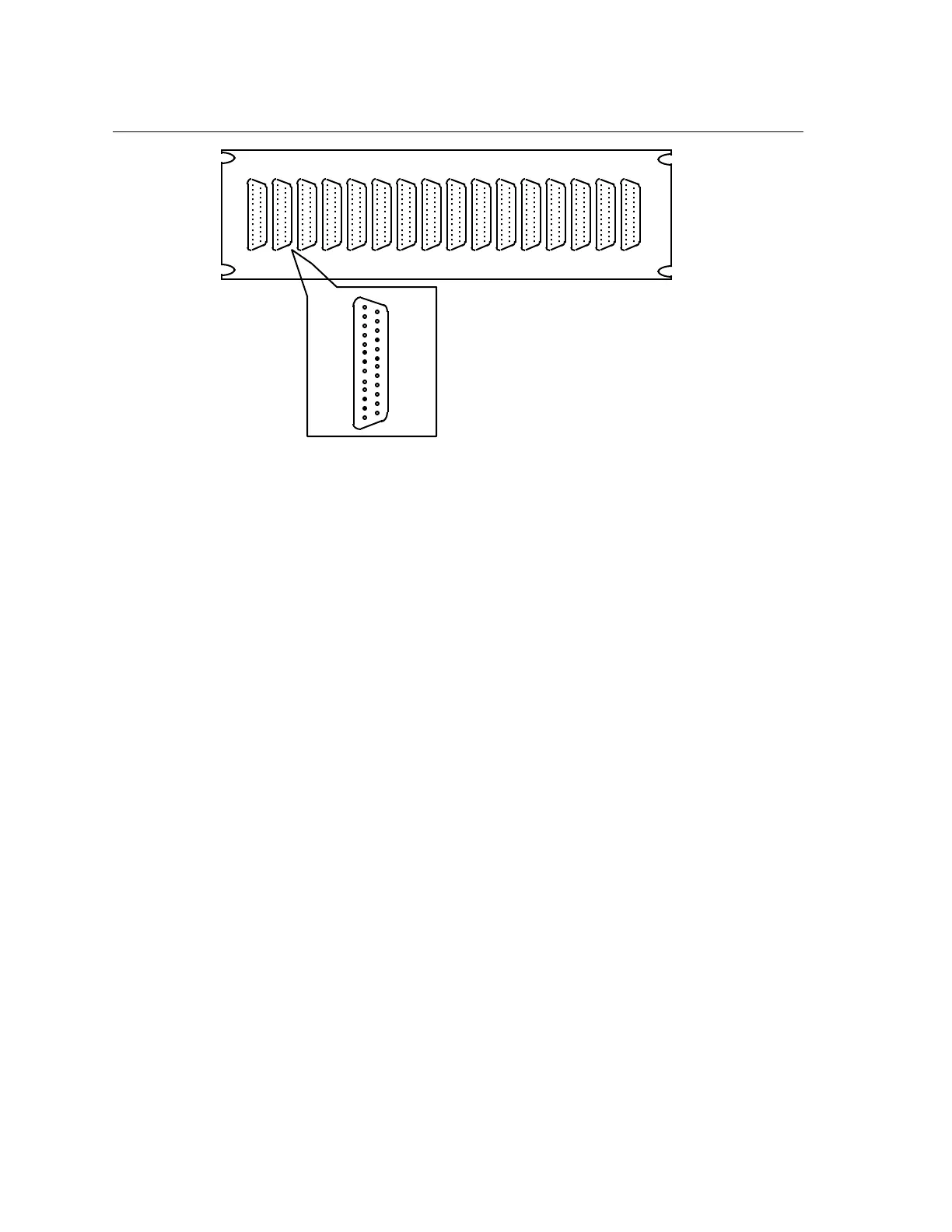

Figure 3-14. 16-Port Distribution Panel.

3-36 0021
