Yamaha 03D - Page 20

Top Panel 11
03D—Owner’s Manual

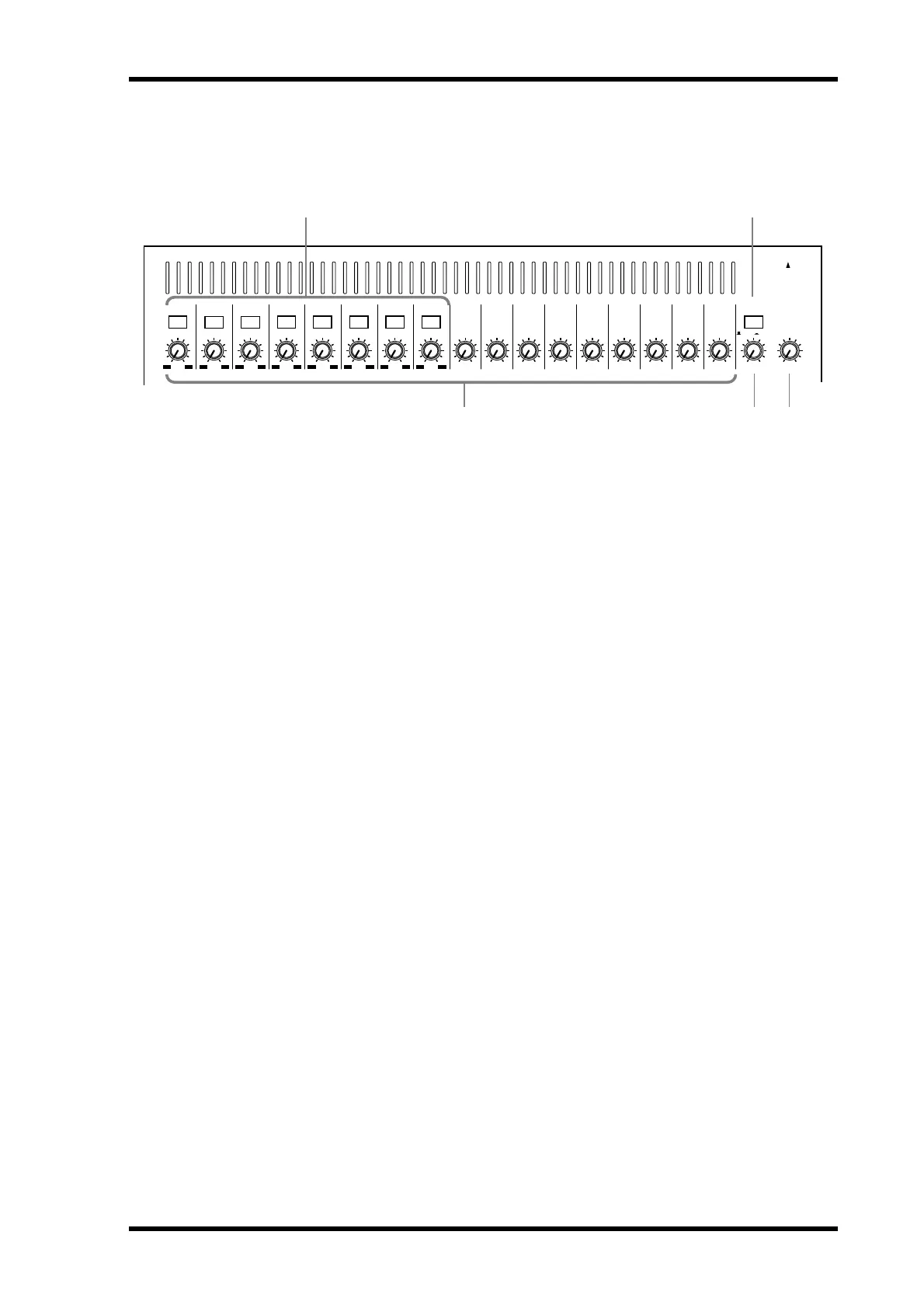

Analog Control Section
A PAD switches
These switches are used to turn on and off the input pads. See Pad (input channels 1–8)
on page 37 for more information.
B GAIN controls
These controls are used to adjust the gain of the input preamps. See Gain on page 37 for
more information.
C MONITOR OUT switch
This switch is used to select the signal source—SOLO or 2TR IN—for the MONITOR
OUT and PHONES.
D MONITOR OUT LEVEL control
This control sets the level of the signals appearing at the MONITOR OUT connectors.
The signal source is set using the adjacent MONITOR OUT switch.
E PHONES LEVEL control
This control is used to adjust the phones level. The signal source is set using the MON-
ITOR OUT switch.
PHONES
PHONES
+10 –34
–60–16
26dB
1
+10 –34
–60–16
26dB
2
+10 –34
–60–16
26dB
3
+10 –34
–60–16
26dB
4
+10 –34
–60–16
26dB
5
+10 –34
–60–16
26dB
6
+10 –34
–60–16
26dB
7
+10 –34
–60–16
26dB
8
+10 –20
+10
9
GAIN
+10 –20
+10
10
GAIN
+10 –20
+10
11
GAIN
+10 –20
+10
12
GAIN
+10 –20
+10
13
GAIN
+10 –20
+10
14
GAIN
+10 –20
+10
15
GAIN
+10 –20
+10
16
GAIN
+10 –20
+10
ST IN
GAINGAIN GAIN GAIN GAIN GAIN GAIN GAIN GAIN
100
MONITOR
OUT
LEVEL
100
LEVEL
1 3
42 5
SOLO/ 2TR IN
PAD
