Aux Send Block Diagram 95
03D—Owner’s Manual

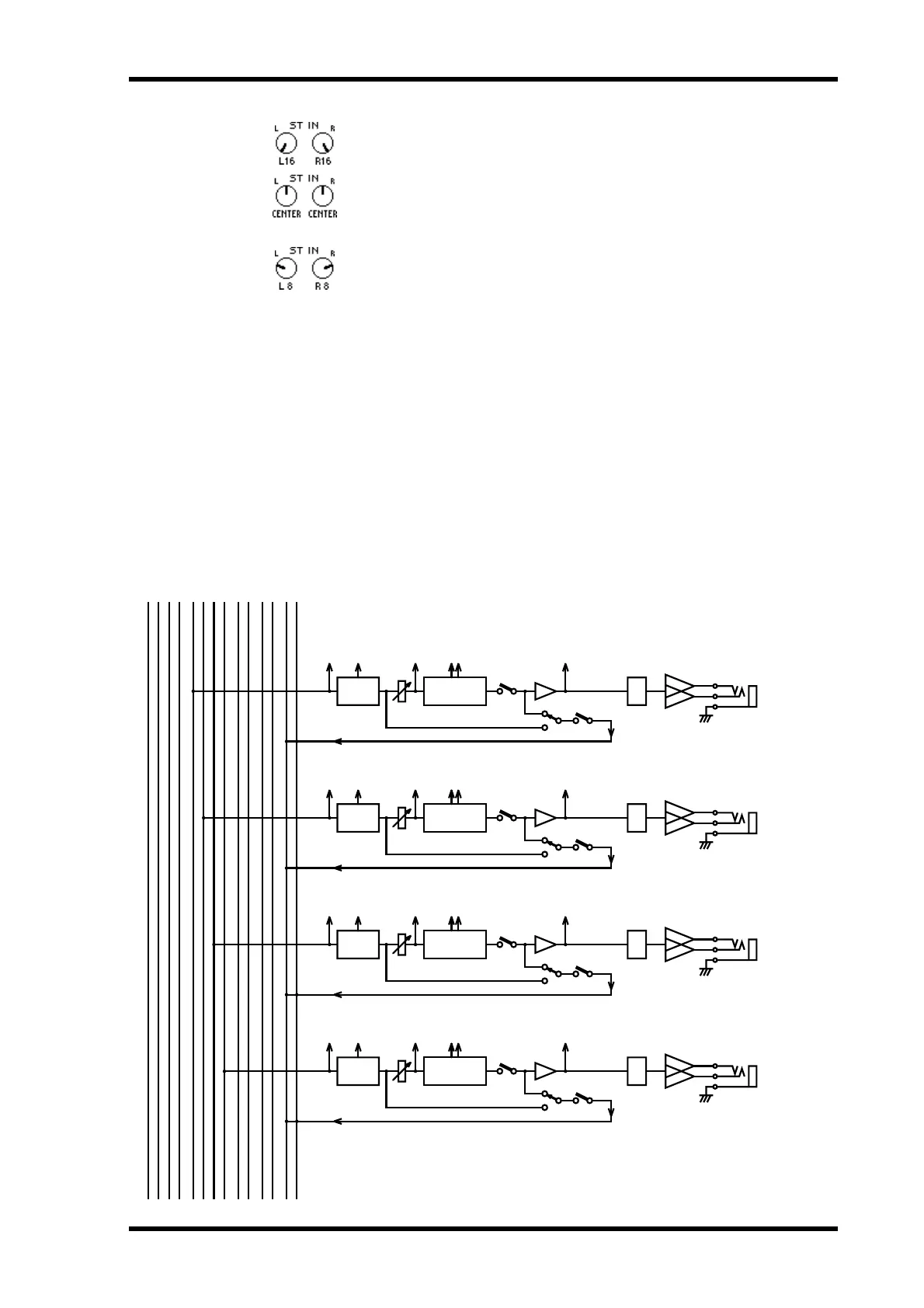

With the left control set at L16 and the right control set at R16, as shown,
the width of a stereo signal is 100%.
With both controls set at CENTER, as shown, the width of a stereo signal
is reduced to zero.
Setting the controls to positions in between these two extremes allows
you set the width of the stereo signal from zero to 100%. To maintain a
central balance, however, you must set both controls to corresponding
values. For example, L5 and R5, or L10 and R10.
Including center, there are 33 pan positions.
Aux send pan controls are not affected by the Individual, Gang, and Inverted Gang pan
modes found on the Pan 1–16 and Pan 17–24 pages.
Aux Send Block Diagram
L16←L15←···←L2←L1← CENTER →R1→R2→···→R15→R16
Left
Center
Right
ON
SOLO
SOLO
SOLO
SOLO
Meter Meter
AUX 1 OUT
Dynamics
4Band
PEQ
Meter
DA
Meter
Meter
ON
Meter Meter
AUX 2 OUT
Dynamics
4Band
PEQ
Meter
DA
Meter
Meter
ON
Meter Meter
AUX 3 OUT
Dynamics
4Band
PEQ
Meter
DA
Meter
Meter
ON
Meter Meter
AUX 4 OUT
Dynamics
4Band
PEQ
Meter
DA
Meter
Meter
ST
L R
SOLO
L R
EFF
1 2
AUX
1 2 3 4
BUS
1 2 3 4
