18 Chapter 2—Touring the 03D
03D—Owner’s Manual
I AUX OUTs
These are balanced 1/4-inch phone jacks
with a +4 dB nominal output level. Either
balanced or unbalanced phone plugs can be
connected. They output the aux send sig-
nals and can be used to feed external effects
processors, foldback amplifiers, and so on.
J REC OUT
These are phono jacks with a –10 dBV nominal output level.
The adjacent SOURCE SELECT switch is used to select the
signal source: ST OUT or BUS 1 and BUS 2. They can be
connected to a cassette, DAT, or other recorder.
K ST OUT
These are balanced XLR-3-32-type
connectors with a +4 dB nominal
output level. They are wired pin
1–ground, pin 2–hot (+), and pin
3–cold (–). They output the main ste-
reo mix.

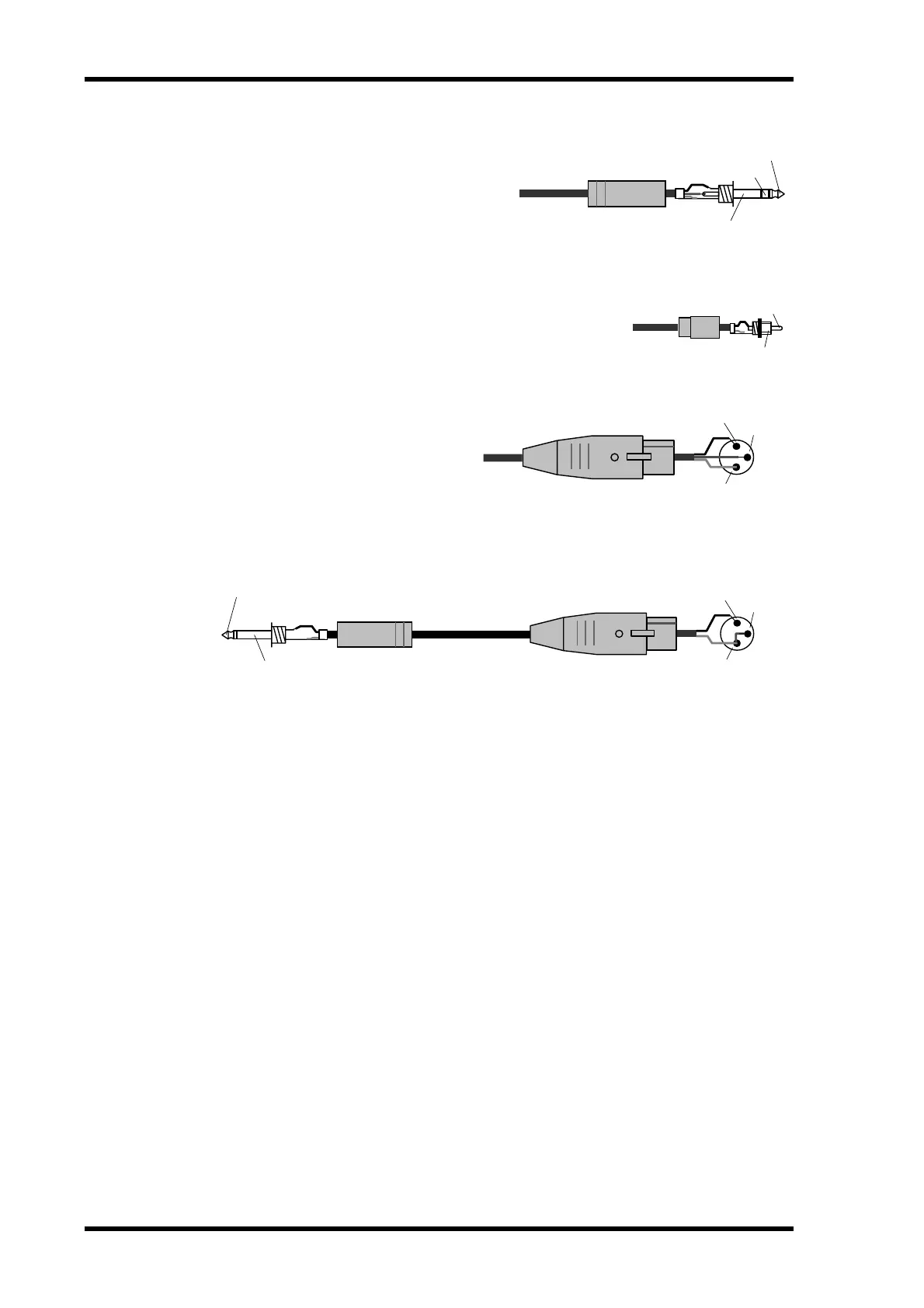

If you need to connect the balanced ST OUT to an unbalanced phone jack input, use a
cable with the following wiring scheme (i.e., XLR pins 3 and 1 linked).
1/4" TRS phone plug
Tip (hot)
Ring (cold)
Sleeve (ground)
Phono plug
Tip
Sleeve
Female XLR plug
1 (ground)
3 (cold)
2 (hot)
Female XLR plug
1 (ground)
3 (cold)
2 (hot)
1/4" phone plug
Tip (hot)
Sleeve (ground)
