Yamaha AS2000BL - Page 55

ABCDEFGH I J
1
2
3
4
5
6
7
A-S2000
55
(Side B)

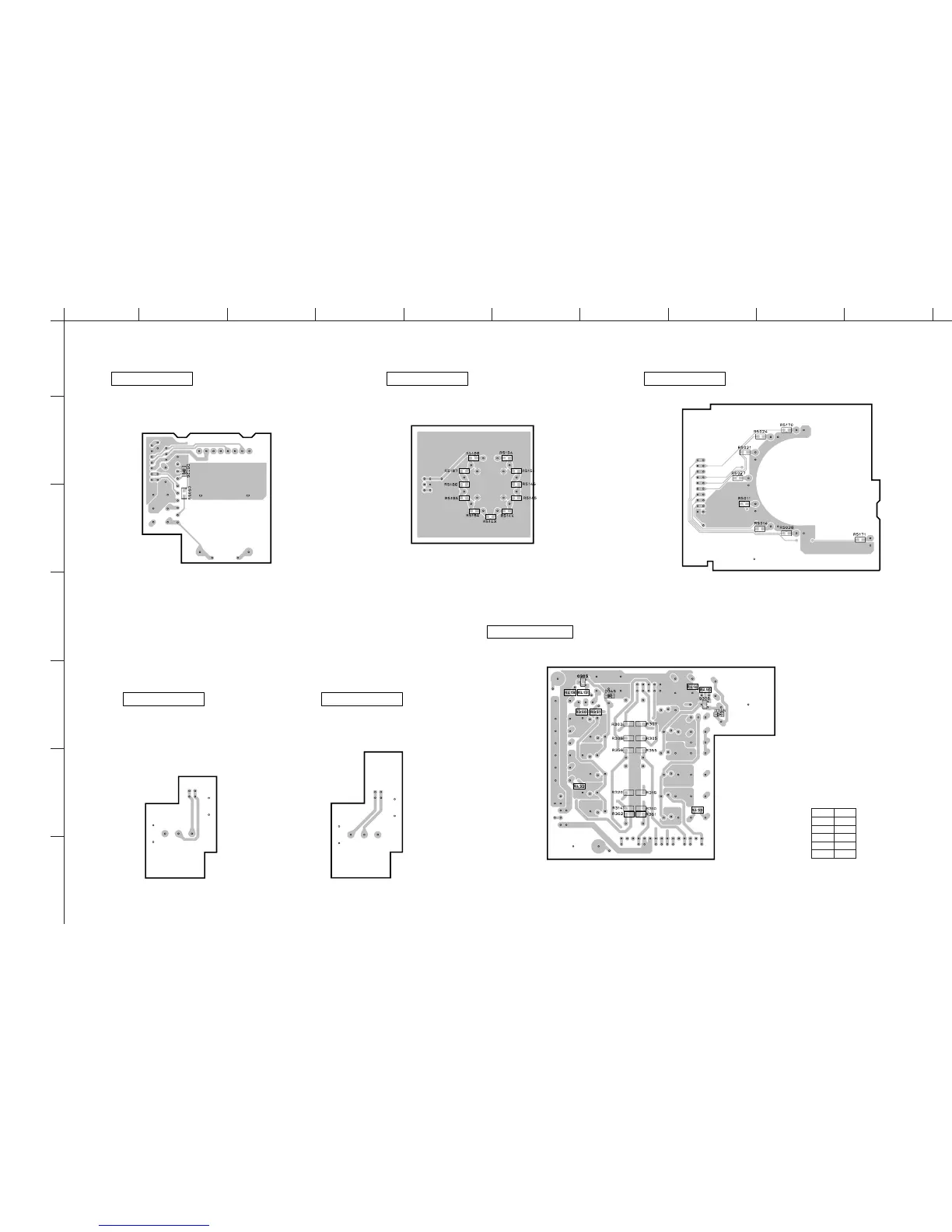

FRONT (4) P.C.B.
(Side B)
FRONT (7) P.C.B.
(Side B)
FRONT (8) P.C.B.
(Side B)
FRONT (5) P.C.B.
(Side B)
FRONT (6) P.C.B.
(Side B)
FRONT (11) P.C.B.
• Semiconductor Location
D345 G5
D346 H5
D5026 B2
Q305 G5
Q306 H5
Ref no. Location
