7. FUNCTION(2)P.C.B.の外し方
a.
F
のネジ4本、
G
のネジ1本を外します。(Fig.8)
b. CB401-404を外します。(Fig.8)
c. TRコネクターを外します。(Fig.8)
d. 底面のケーブル(W4004)を外します。(Fig.9)
e. FUNCTION(2)P.C.B.を取り外します。(Fig.8)
7. Removal of FUNCITON (2) P.C.B.
a. Remove 4 screws (F) and a screw (G). (Fig. 8)
b. Remove CB401-404. (Fig. 8)
c. Remove the connector TR. (Fig. 8)
d. Disconnect the cable (W4004) from the bottom. (Fig. 9)
e. Remove FUNCTION (2) P.C.B.. (Fig. 8)

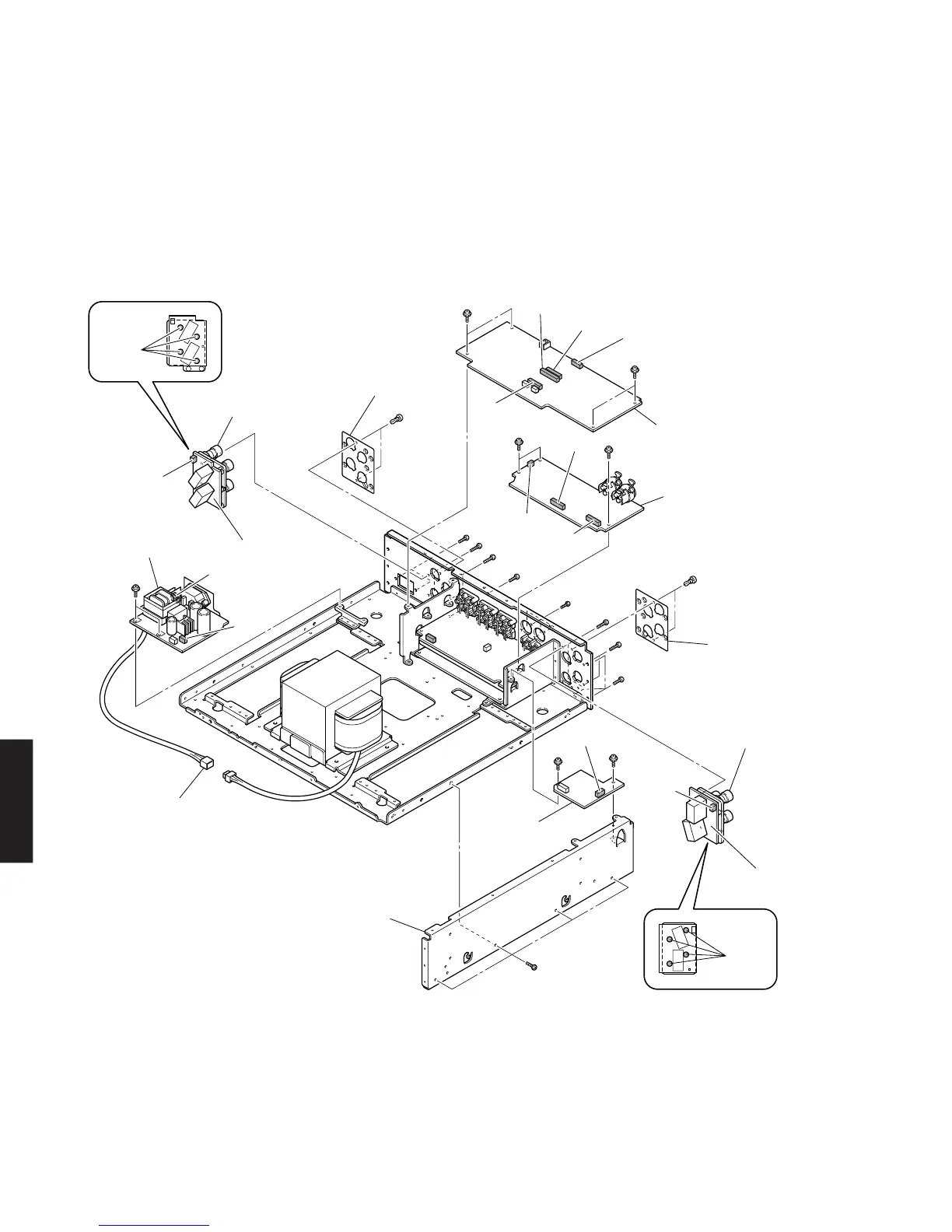

Fig. 8
N
N
H
H
F
F
G
I
L
Q
R
R
O
P
J
K
M
M
CB27
CB201
CB202
CB203
CB401
CB23
CB2
CB79
CB59
CB402
CB403
CB404
Frame side R
フレームサイドR
Connector TR
TRコネクター
Solder
ハンダ
Barrier SP R
バリアSPR
Barrier SP L
バリアSPL
Speaker terminal L
スピーカーターミナルL
Speaker terminal R
スピーカーターミナルR
FUNCTION (2) P.C.B.
FUNCTION (3) P.C.B.
BALANCE P.C.B.
FRONT (11) P.C.B.
FRONT (13) P.C.B.
FRONT (12) P.C.B.
Solder
ハンダ
