Support for Shure AXT400, QLXD4 and ULXD4
V4.1 Supplementary Manual
9

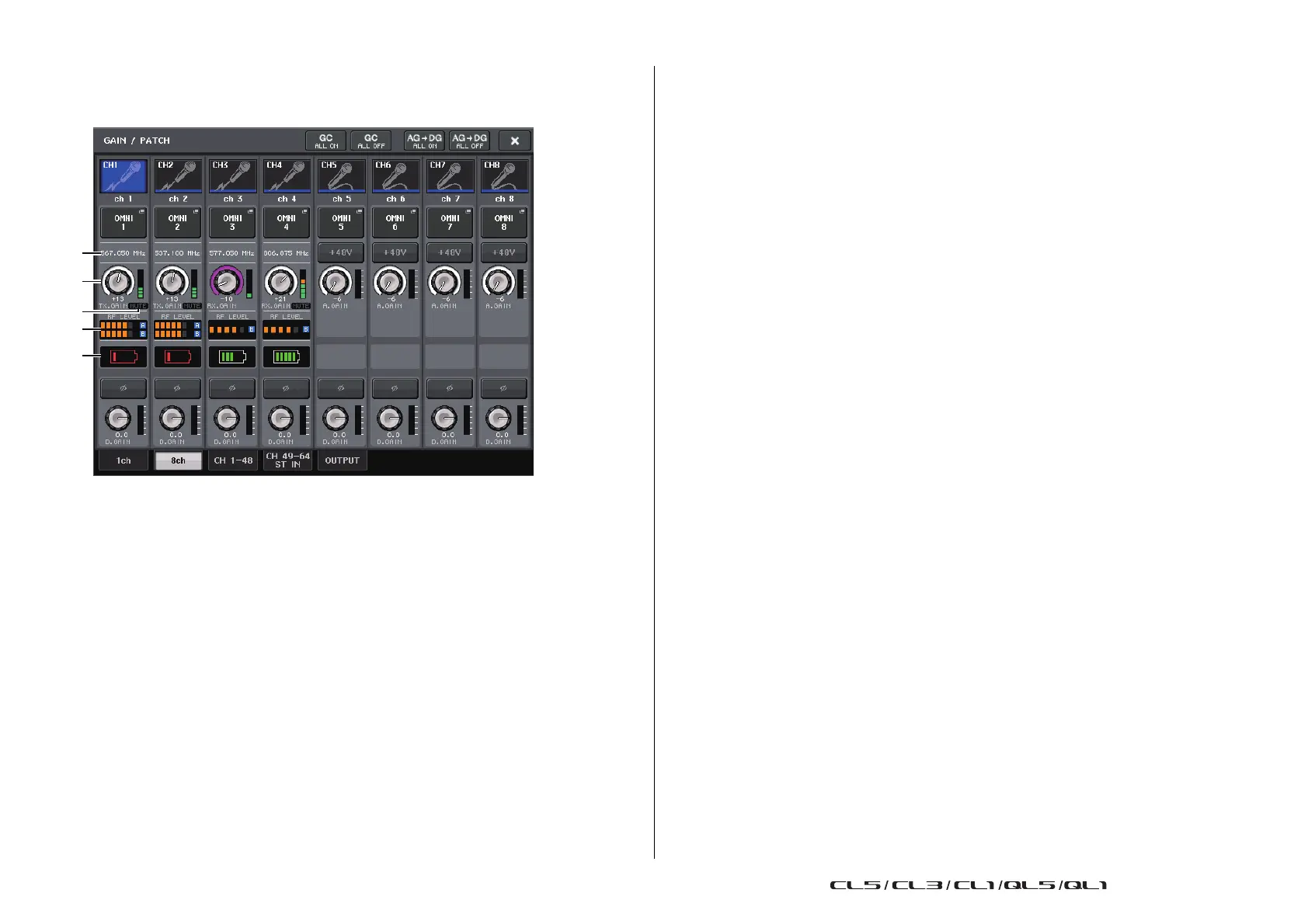

GAIN/PATCH window (8ch)
For Shure AXT400 / QLXD4/ULXD4
If there is a control connection for AXT400 on CH 1-2, a control connection for QLXD4 on
CH3, and a control connection for ULXD4 on CH4.
1 Frequency
Indicates the frequency that is currently set for the RF signal.
2 TX.GAIN knob (for AXT400)
RX.GAIN knob (for QLXD4/ULXD4)
Sets each gain for the transmitter. To adjust the value, press the knob to select it, and
use the multifunction knobs (for CL series consoles) or the TOUCH AND TURN knob (for
CL/QL series consoles). The level meter located at the immediate right of the knob
indicates the input level.
NOTE
When the AXT400 is connected via a ShowLink® remote control, a gray circle is displayed here
instead of a knob, and the gain cannot be adjusted.
3 MUTE indicator
Indicates the mute status (on/off) of the audio signal for the receiver.
NOTE
For QLXD4, the MUTE button is not displayed.
4 RF (Radio Frequency) signal meter
Shows bars to indicate the level of the RF signal (both A and B channels for AXT400).
An active antenna indicator is shown on the right side. It indicates which antenna is
enabled.
NOTE
For details about the relationship between the number of bars and the actual strength of the RF
signal, refer to the manual from Shure.
5 Battery indicator
Shows bars to indicate the remaining battery power.
NOTE
For details about the relationship between the number of bars and maximum operation time, refer
to the manual from Shure.
To Next Page
