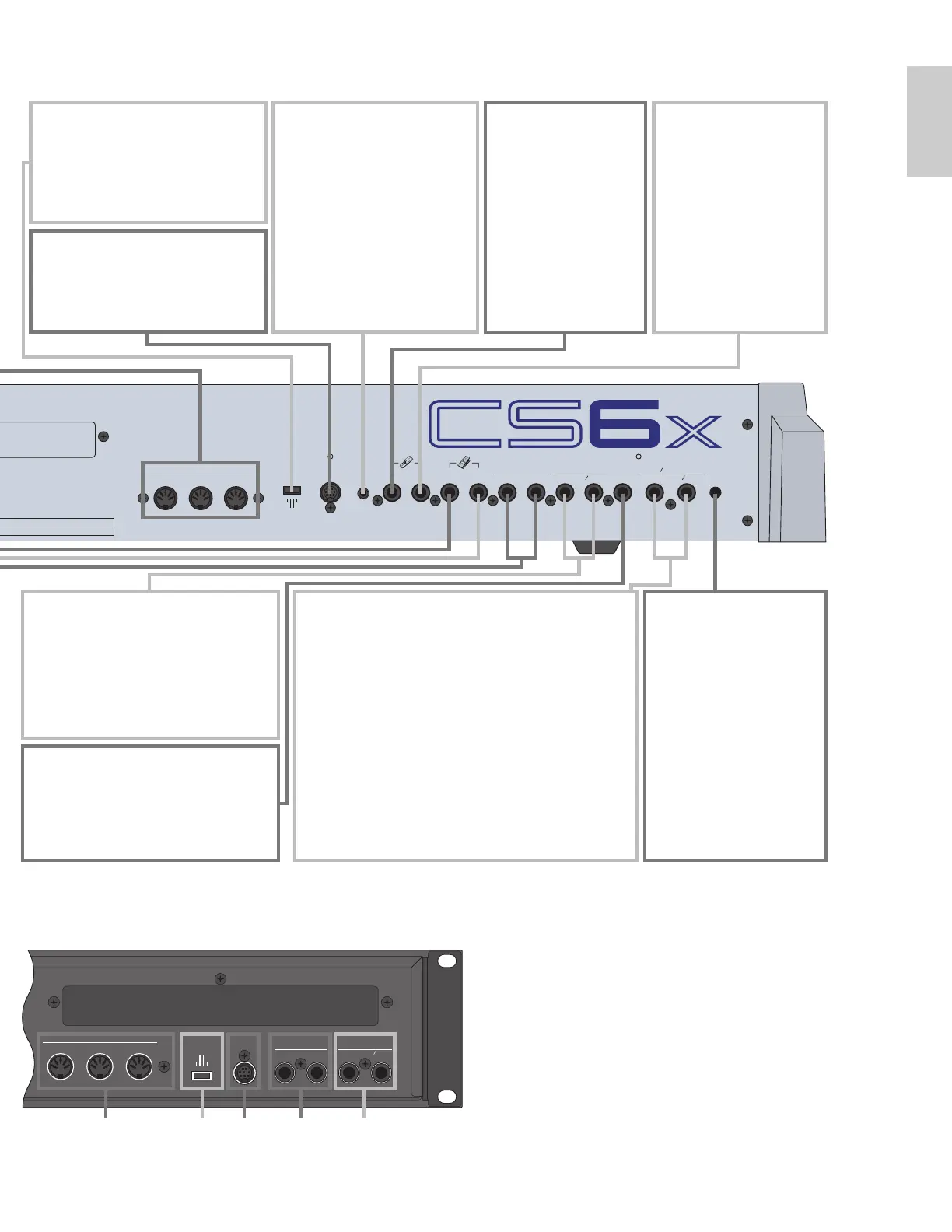

INDIVIDUAL OUTPUT
1
2
HOST SELECT
Mac
PC-1PC-2
MIDI
8
FOOT SWITCH
jack (Pages 18, 48)
Connect an optional
Foot switch (FC4 or
FC5) here. Using the
foot switch, you can
control of a range of on
or off a specific function
by foot, as assigned on
the instrument. (Pages
53, 165)
9
SUSTAIN jack
(Pages 18, 48)
An optional Foot Switch
(FC4 or FC5) can be
connected here. You can
use the Foot Switch as a
damper pedal on the
acoustic piano or for a
sustained effect.
$
PHONES jack (Page 13)
Connect a pair of headphones here.
#
OUTPUT L/MONO and R jack (Page 13)
Line level audio signals are output via
these phone jacks. For monophonic
output, use just the L/MONO jack.
^
GAIN knob
(Pages 73, 144
)
Use this to adjust the input
gain of the audio signals at
the A/D INPUT jacks. You
may need to adjust this
depending on the type of
device (microphone, other
instrument output, etc.)
connected when using a
A/D Input part.
%
A/D INPUT jacks (Page 14)
External audio signals can be input via these phone jacks.
Use these when recording Phrase Clips by connecting a
microphone or other audio equipment. To record a
monophonic line level signal, you use LINE 1. Use
MIC/LINE 2 to record a microphone level signal. To
record a stereo line level signal, use both jacks. However,
stereo signals are merged into a monophonic signal
internally when recording.
5
HOST SELECT switch (Page 16)
Select the type of computer
connected to the synthesizer via the
TO HOST connector .
6
TO HOST terminal
Connect a computer here using an
optional serial computer cable
(Page 16).
7
BREATH jack (Pages 18, 48)
Connect an optional breath
controller BC3 here. You can
use the Breath Controller to
change the output level or tone
of the sounds according to the
strength of your breath.
4 5 6 @ #
