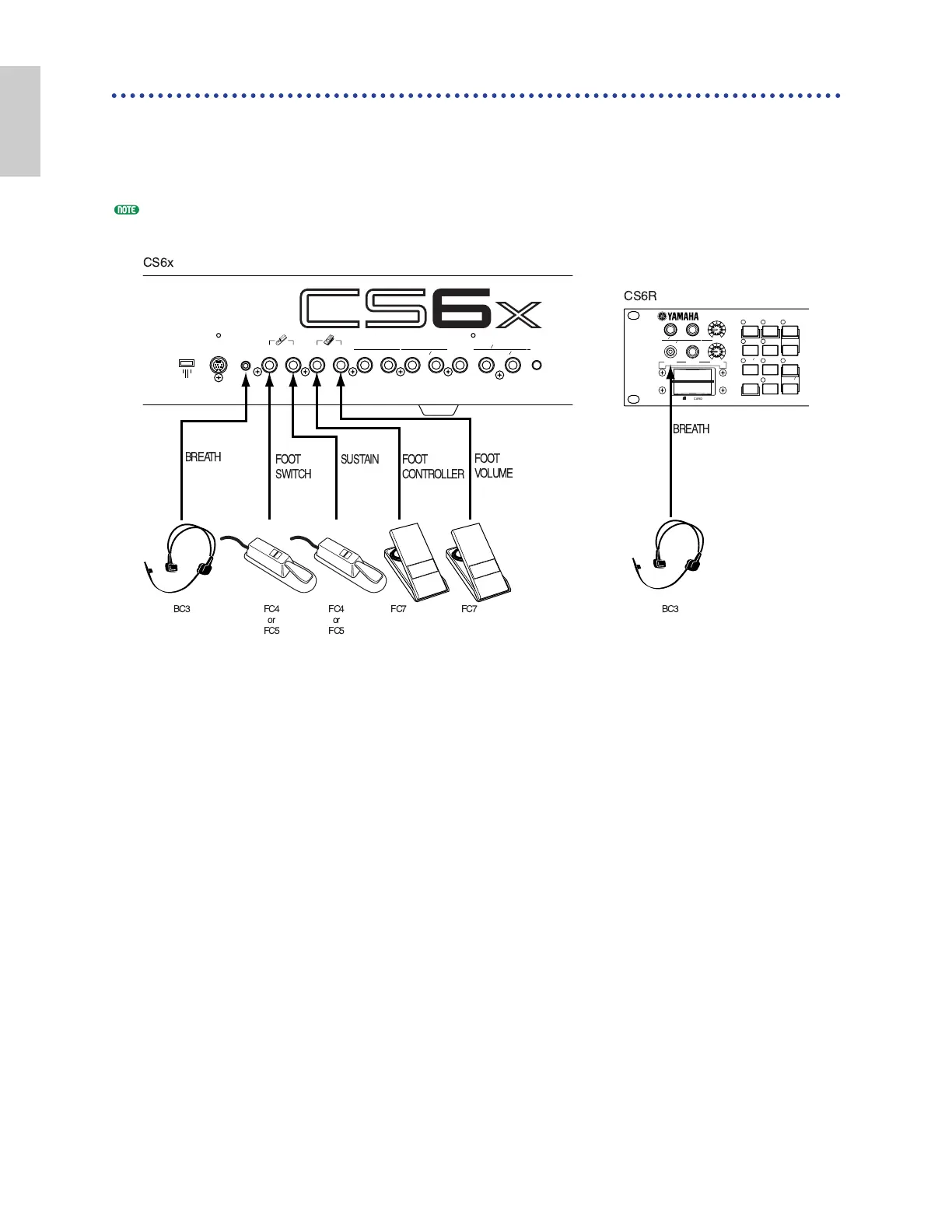

Connecting Various Controllers
The CS6x has several controller jacks on the rear panel, including FOOT SWITCH, SUSTAIN, FOOT
CONTROLLER, FOOT VOLUME and BREATH. You can connect optional controllers like a Foot
Switch (the FC4 or FC5), Foot Controller (the FC7) and Breath Controller (BC3, etc.) to control tone,
volume, pitch and other parameters. The CS6R only has a Breath Controller connector on its front
panel, but other controls (equivalent to the CS6x) may be available using external MIDI controllers.
Details about how to these controllers are given on Page 47.
