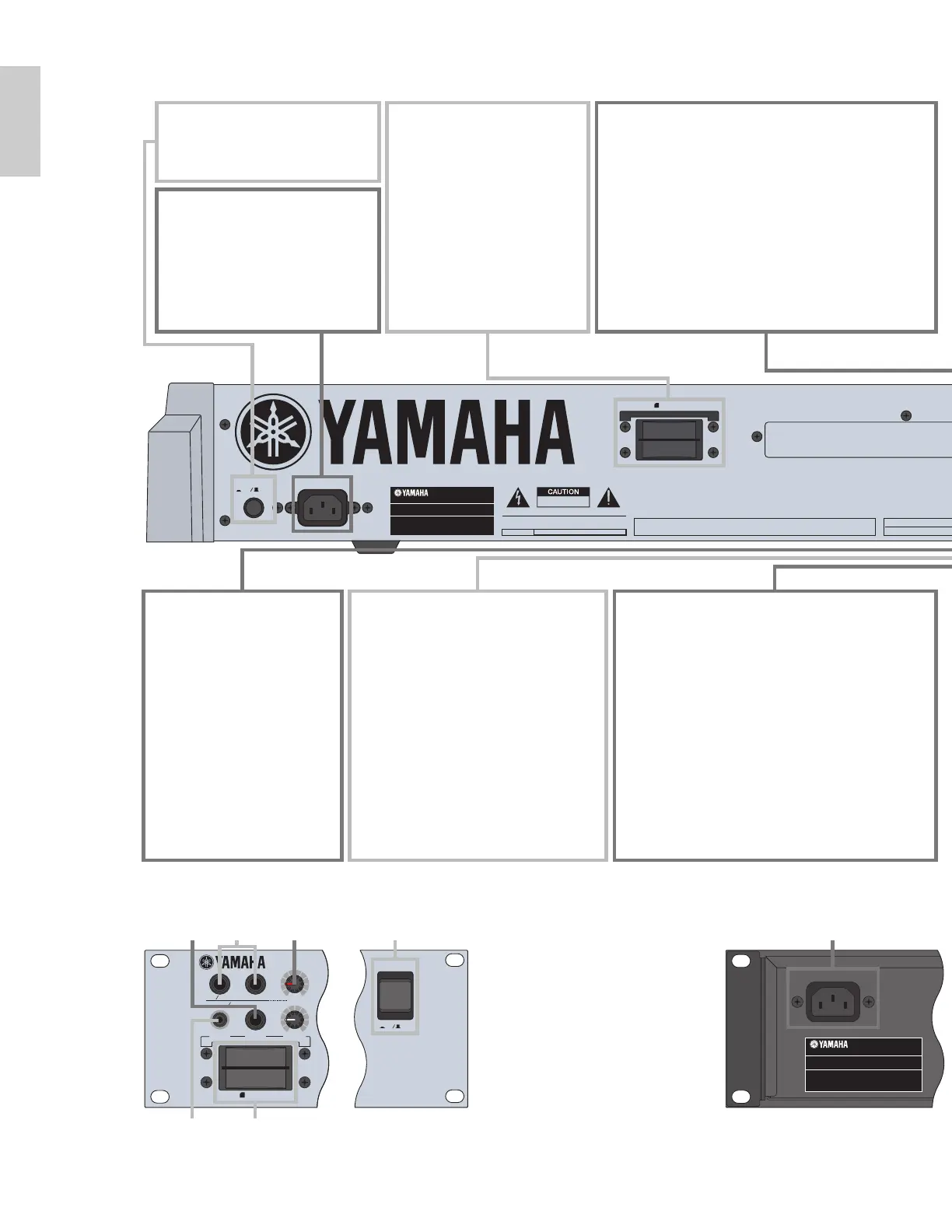

1
POWER switch (Page 19)
Use this to switch the synthesizer
on or off.
)
FOOT CONTROLLER jack
(Pages 18, 48) (CS6x only)
An optional foot controller
(FC7, etc.) can be connected
here. Using the foot controller,
you can control tones, pitches,
volumes or the like by foot.
!
FOOT VOLUME jack
(Pages 18, 48) (CS6x only)
An optional foot controller (FC7, etc.) can
be connected here. You can control the
output level from the instrument by foot.
In Utility Mode, you can select Volume or
Expression for this controller.
@
INDIVIDUAL OUTPUT 1 and 2 jacks (Page 13)
Line level audio signals are output from the
synthesizer via these phone jacks (1/4" mono phone
plug). The output is separated from that at the
OUTPUT L/MONO and R jacks. In Performance
Mode, you can specify which Parts can be output from
these separate outputs.
2
AC INLET terminal (Page 12)
Plug the female end of the supplied
AC power cord in here before
plugging it into an AC wall outlet.
3
CARD slot (Page 171)
Insert a Memory Card here to
transfer various data to/from
the instrument. Read carefully
the precautions on use of a
Memory Card (Page 171)
before using a card.
4
MIDI IN, OUT, and THRU connectors (Page 15)
MIDI IN receives MIDI messages from an external MIDI
device. Use this connector to control the synthesizer from
an external MIDI device. MIDI OUT sends out MIDI
messages generated by the synthesizer, such as notes
played on the keyboard or panel control/knob variations,
to an external MIDI sound module or device. MIDI THRU
just reflects the MIDI messages received at MIDI IN.
Connect other MIDI devices here.
CS6x
CS6R
$ % ^ 1 2
& 3
To Next Page
