Yamaha CS6X User Manual

151
Phrase Clip Mode
❏ Settings: Depends on the length of the Phrase Clip
■ End (End Point)
Set the End Point of the Phrase Clip’s looped
section. This can also be useful for removing
unwanted noise at the end of the Phrase Clip.
❏ Settings: Depends on the length of the Phrase Clip.
OSC Out (Oscillator Out)
You can set the following output parameters for each
Clip Key of a Clip Kit.
■ Level
Set the output level of each Clip Key.
❏ Settings: 0 ~ 127
■ InsEF (Insertion Effect)
Set the Insertion Effect to which the output signal
from each Clip Key is sent. The Insertion Effect is
bypassed if you select thru.
❏ Settings: thru, ins1 (Insertion Effect 1), ins2 (Insertion
Effect 2)
■ RevSend (Reverb Send)
Set the Send level of the Clip Key signal sent from
Insertion Effect 1/2 (or the bypassed signal) to the
Reverb effect.
❏ Settings: 0 ~ 127
OSC Out) Level InsEF RevSend ChoSend
Key=C 3 127 thru 64 127

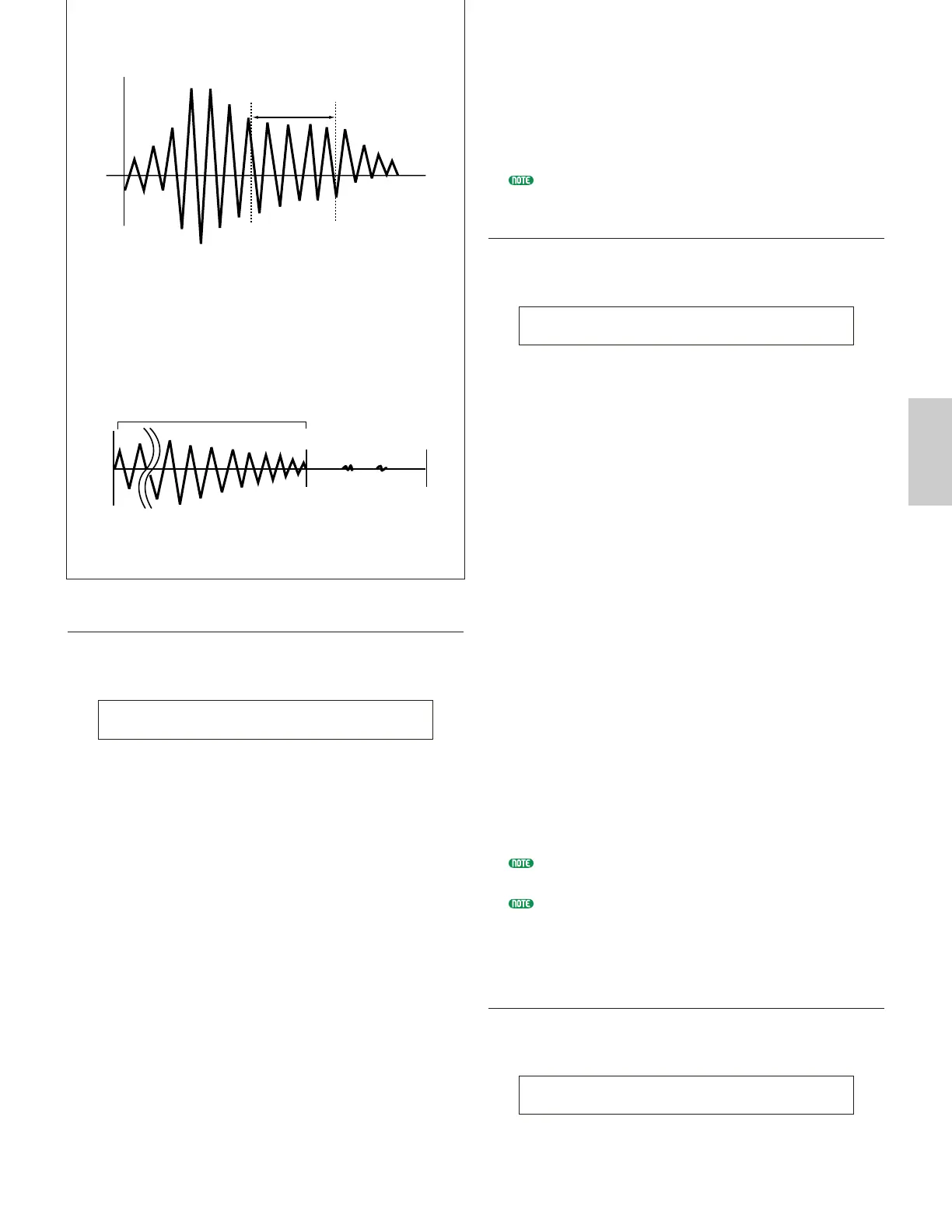

Record Start
Data End
End Point
Noice
Necessary portion
Start Point
Loop
Point
Looped Section
End
Point
■ ChoSend (Chorus Send)
Set the Send level of the Clip Key signal sent from
Insertion Effect 1/2 (or the bypassed signal) to the
Chorus effect.
❏ Settings: 0 ~ 127
Details about Effects are given on Page 65.
OSC Pan (Oscillator Pan)
You can set the following Pan parameters for each Clip
Key in the Clip Kit.
■ Pan
Set the stereo Pan position for each Clip Key. This
will also be used as the basic Pan position for the
Alternate, Random and Scale settings.
❏ Settings: L63 (Left) ~ C (Center) ~ R63 (Right)
■ Alter (Alternate)
Set the amount by which the sound is panned
alternately left and right for each note you press.
The Pan setting is used as the basic Pan position.
❏ Settings: L64 ~ 0 ~ R63
■ Random
Set the amount by which the sound is panned
randomly left and right for each note you press. The
Pan setting is used as the basic Pan position.
❏ Settings: 0 ~ 127
■ Output
Assign each Clip Key to an output.
❏ Settings: L&R (OUTPUT L and R), ind 1&2
(INDIVIDUAL OUTPUT 1 and 2), ind1
(INDIVIDUAL OUTPUT 1), ind2, ind3, ind4,
ind5, ind6
Settings “ind3 to “ind6” are for future expansion
purposes and are currently not available.
For example, if you select “ind 1&2,” the left channel
will be output through INDIVIDUAL OUTPUT 1 and
the right channel will be output through INDIVIDUAL
OUTPUT 2.
OSC Other (Oscillator Other)
You can set parameters which govern the sound of each
Clip Key of a Clip Kit.
OSCíOther) KeyOn Assign AltGrp
Key=C 3 normal single off
OSCíPan) Pan Altar Random Output
Key=C 3 C L63 63 L&R

Yamaha CS6X Specifications

General

Polyphony	64 voices
Multitimbral	16 parts
Keyboard	61 keys
Arpeggiator	Yes
Sampling	No
Waveform ROM	16MB
Velocity Sensitivity	Yes
Aftertouch	Yes
LFO	Yes
Display	LCD
Year Released	1999
Oscillators	AWM2
Effects	Reverb, Chorus
Outputs	Headphones
Memory	512 presets, 128 user
Storage	SmartMedia Card
Connectors	MIDI In/Out/Thru
Control	Pitch bend, Modulation wheel
Filter	Resonant multimode (low-pass, high-pass, band-pass)
