Powering Up
Power-on Procedure
When you have made all the necessary connections between your synthesizer and any other devices,
make sure that all volume settings are turned down all the way to zero. Then turn on the every device
in your setup in the order of MIDI masters (senders), MIDI slaves (receivers), then audio equipment
(mixers, amplifiers, speakers, etc.). This ensures the smooth flow of signals from the first device to the
last (first MIDI, then audio).
When powering down the setup, first turn down the volume for each audio devices, then switch off
each device in the reverse order (first audio devices, then MIDI).
When the CS6x/CS6R as MIDI receiver:
Switching the CS6x/CS6R On
Before you switch your synthesizer on or off, first turn down the volume of any audio equipment connected to it.
1Press the POWER switch.
2A splash screen is displayed briefly.
3The Voice or Performance Play Mode screen appears next.
VCE Play) PRE1:001(A01)[Sq:Generation]
EQLow-Q EQMid-G EQHi-G FLT-Rez HPF
CS6x
POWER
PLG1INTPRE1
PLG2EXTPRE2
EXIT ENTER
DEC NO INC YES
DRUM DRUM
MEMORY
ON
OFF
AC INLET
POWER
ON OFF
CS6R

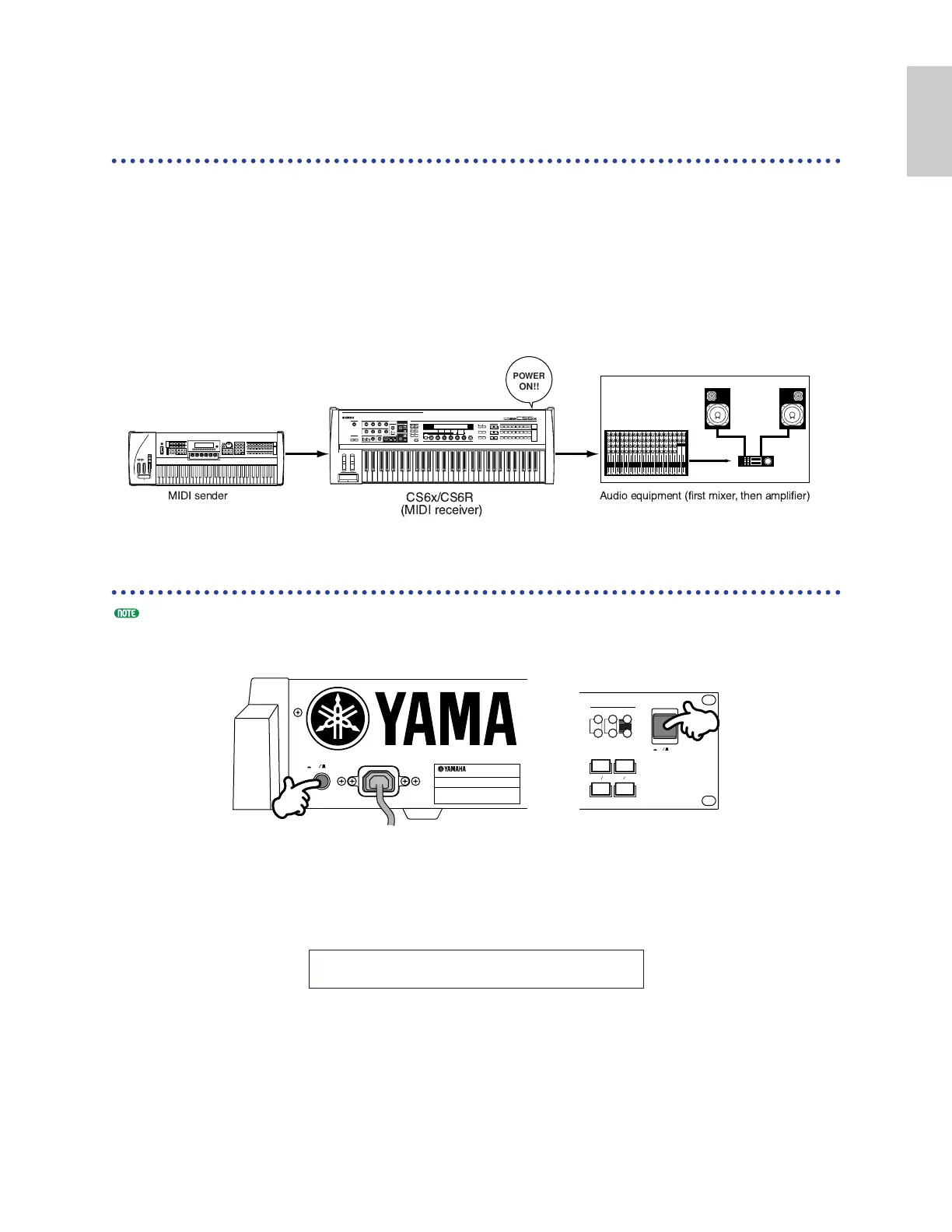

MIDI sender Audio equipment (first mixer, then amplifier)
1 2 3 4 5 6 7 8 9 10 1 1 12 13 1 4 15 16 L R
POWER
ON!!
CS6x/CS6R
(MIDI receiver)
C

Yamaha CS6X Specifications

General

Polyphony	64 voices
Multitimbral	16 parts
Keyboard	61 keys
Arpeggiator	Yes
Sampling	No
Waveform ROM	16MB
Velocity Sensitivity	Yes
Aftertouch	Yes
LFO	Yes
Display	LCD
Year Released	1999
Oscillators	AWM2
Effects	Reverb, Chorus
Outputs	Headphones
Memory	512 presets, 128 user
Storage	SmartMedia Card
Connectors	MIDI In/Out/Thru
Control	Pitch bend, Modulation wheel
Filter	Resonant multimode (low-pass, high-pass, band-pass)
