Yamaha CS6X User Manual

17
Basics
Section

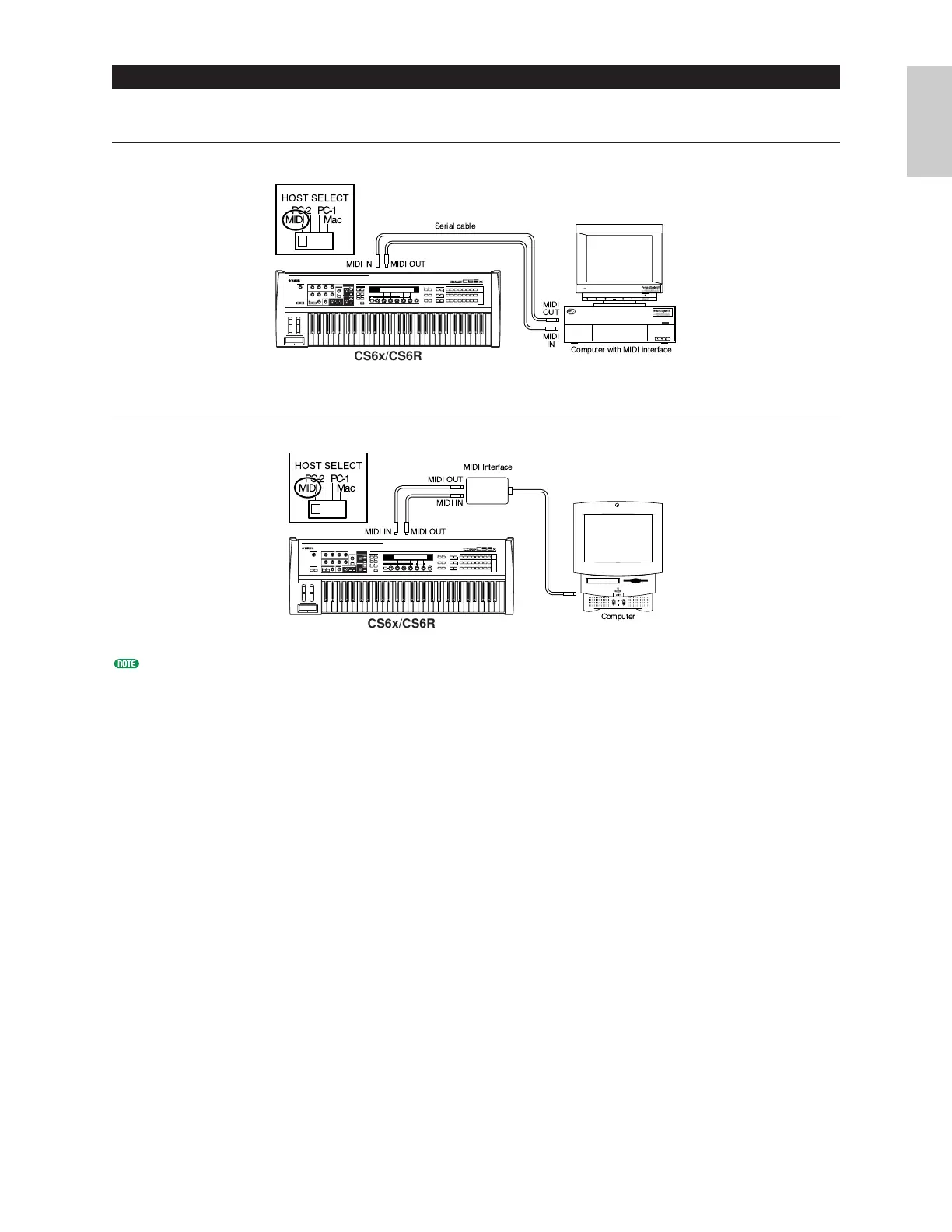

2: MIDI Interface to MIDI IN and OUT
Using the computer’s MIDI interface
Using an external MIDI interface
You will need to an appropriate MIDI application (sequencer, editor, etc.) for your computer platform.
MIDI Interface
MIDI OUT
MIDI IN
MIDI IN MIDI OUT
HOST SELECT
PC-2 PC-1
MIDI Mac
CS6x/CS6R
C
Computer
Computer with MIDI interface
Serial cable
HOST SELECT
PC-2 PC-1
MIDI Mac
MIDI OUT
MIDI
OUT
MIDI
IN
MIDI IN
CS6x/CS6R
C
IBM
PersonalSystem/V
PS/V
PersonalSystem/V

Yamaha CS6X Specifications

General

Polyphony	64 voices
Multitimbral	16 parts
Keyboard	61 keys
Arpeggiator	Yes
Sampling	No
Waveform ROM	16MB
Velocity Sensitivity	Yes
Aftertouch	Yes
LFO	Yes
Display	LCD
Year Released	1999
Oscillators	AWM2
Effects	Reverb, Chorus
Outputs	Headphones
Memory	512 presets, 128 user
Storage	SmartMedia Card
Connectors	MIDI In/Out/Thru
Control	Pitch bend, Modulation wheel
Filter	Resonant multimode (low-pass, high-pass, band-pass)
