Yamaha CS6X User Manual

180
Appendix

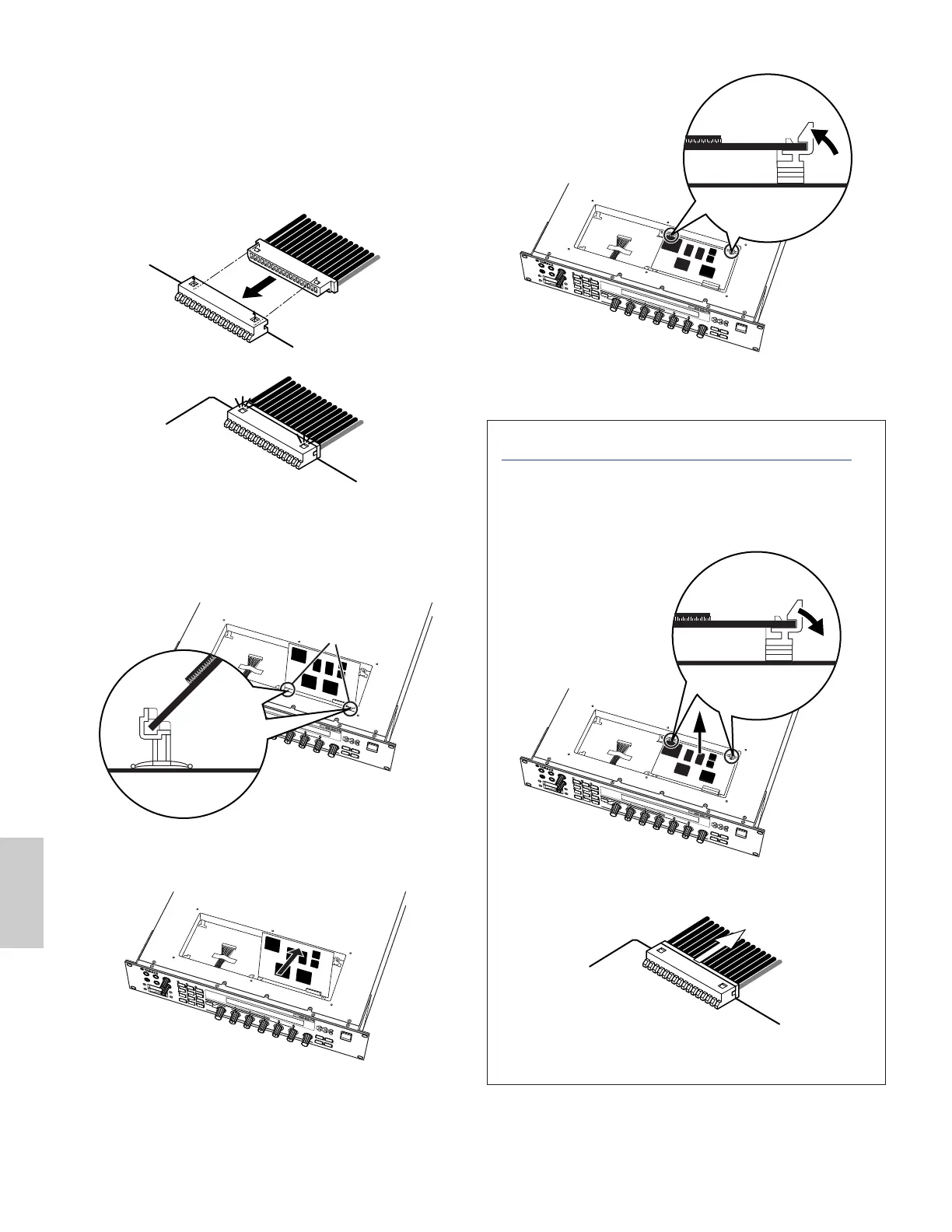

5 Take out the Plug-in board from the anti-static bag.
When installing the board, the side with a connector and
ICs must be on top.
6 Carefully plug the cable connector into the Plug-in board
connector until the two notches on the cable connector
lock into the sockets on the board as shown in the
illustration.
7 Mount the Plug-in board onto the plate as detailed in the
following steps.
7-1 Insert one side of the Plug-in board (the connector
side) into the hooks 1 as shown in the illustration.
7
-2 Press down the other side until it is securely
settled on the hooks 2.
PLG2
Hooks 1
Hooks 1
PLG2
8 Replace the Plug-in board cover by fastening the six flat-
head screws you removed in the step 2 above.
Removing the Plug-in board from the keyboard
1 Press down the hooks 2 in the direction as shown in the
illustration and take the board out from the hooks 2 by
lifting up the one side.
2 Pull out the other side of the board from the hooks 1.
3 Pull out the cable connector from the Plug-in board
connector.
Hooks 2
PLG2
Hooks 2
PLG2

Yamaha CS6X Specifications

General

Polyphony	64 voices
Multitimbral	16 parts
Keyboard	61 keys
Arpeggiator	Yes
Sampling	No
Waveform ROM	16MB
Velocity Sensitivity	Yes
Aftertouch	Yes
LFO	Yes
Display	LCD
Year Released	1999
Oscillators	AWM2
Effects	Reverb, Chorus
Outputs	Headphones
Memory	512 presets, 128 user
Storage	SmartMedia Card
Connectors	MIDI In/Out/Thru
Control	Pitch bend, Modulation wheel
Filter	Resonant multimode (low-pass, high-pass, band-pass)
