Yamaha CS6X User Manual

51
Basics
Section

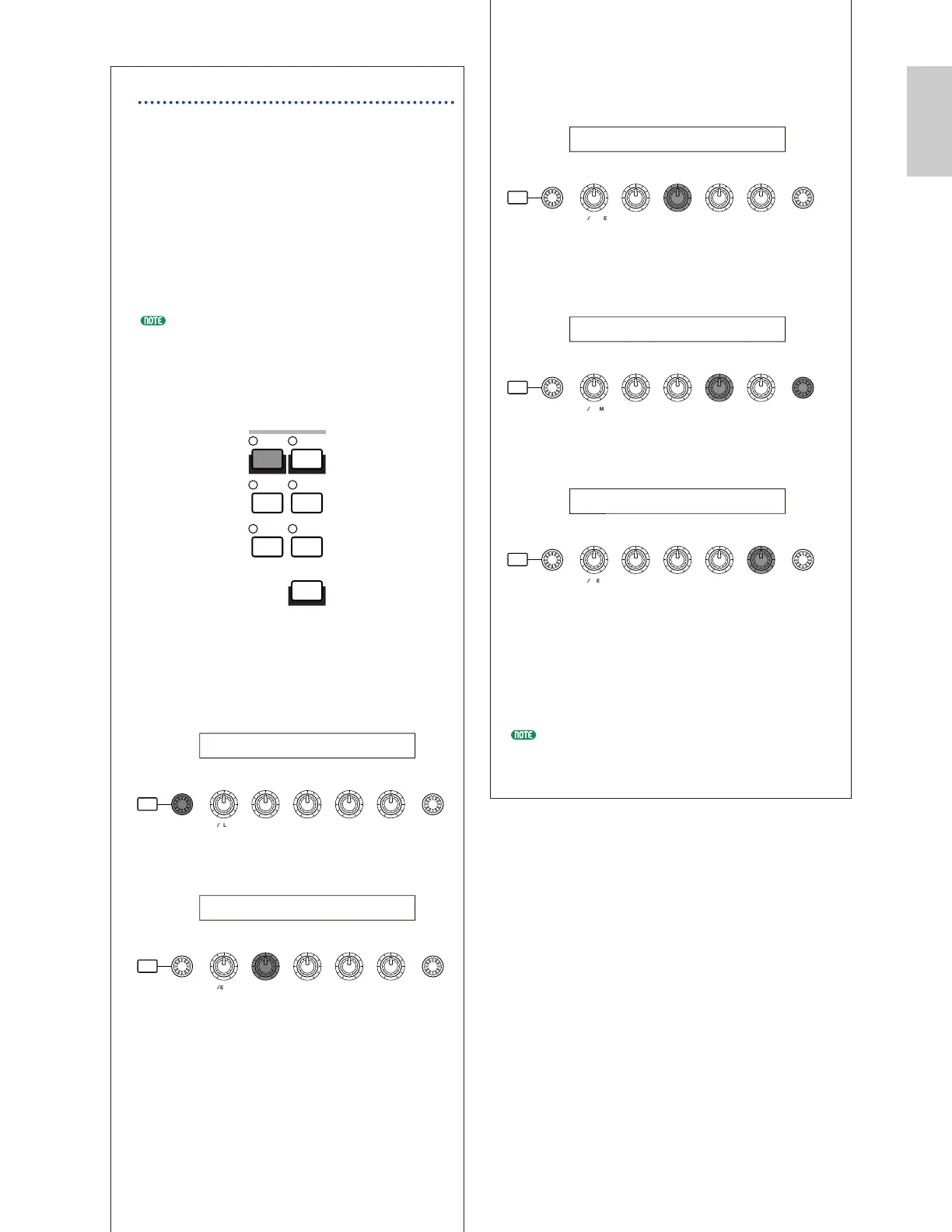

Assigning Parameters to Knobs [1] and [2]
The following procedure explains how you can
assign a desired parameter to Knob [1] or [2].
You can assign controllers to each Voice (or
Part in a Performance) or Clip Kit. Control
Settings can be assigned as a Control Set, and a
each Controller can be used to control multiple
parameters (although this varies according to
the type of Voice or Clip kit). Here we
introduce an example of how to set up Control
Set 1 for Internal Voice 001 (A01) by assigning
PCH-Crs (Pitch: Coarse) to Knob [1].
You can also assign, separately, a different
MIDI Control Change Number to the same
knob in Voice Mode and Performance Mode.
Details are given on Page 168.
1 Press the [VOICE] key to enter Voice Play Mode.
2 Select Internal Voice 001 (A01) and press
the [EDIT] key to enter Voice Edit Mode.
3 Use the [PAGE] knob to switch to the CTL
Set1 (Control Set 1) screen.
4 Use Knob [B] to assign “KN1 (16)” (Knob
[1]) to the Src (Source) parameter.
SHIFT PAGE
PART
/ ELEMENT
DATAA B C 1 2
CTLíSet1) Src Dest EL Sw Depth
C 1234 KN1(16) FLT-Rez --34 +14
SHIFT PAGE
PART
/ ELEMENT
DATAA B C 1 2
CTL Set1) Src Dest EL Sw Depth
C 1234 MW(01) FLT-Rez --34 +14
VOICE PERFORM
UTILITY CARD
EDIT
COMPARE
JOB
STORE
MODE
5 Use Knob [C] to assign PCH-Crs
(Pitch:Coarse) to the Dest (Destination)
parameter.
6 Use Knob [1] and the [DATA] knob to specify
the Element to be controlled. Knob [1] moves
the cursor (blinking) and the [DATA] knob
displays the Element to be controlled.
7 Use Knob [2] to set the Depth parameter.
The larger the setting, the greater the depth
of control.
8 Store the edited Voice (Page 116).
Now you have Internal Voice 001 (A01)
assigned PCH-Crs (Pitch:Coarse) to Knob [1].
When you select and play this Voice in Voice
Play Mode, you can control the pitch of the
Voice if you turn Knob [1].
Details about the assignable control functions
are given in the Control Set Destination
Parameters in the separate Data List.
SHIFT PAGE
PART
/ ELEMENT
DATAA B C 1 2
CTLíSet1) Src Dest EL Sw Depth
C 1234 KN1(16) PCH-Crs 1234 +34
SHIFT PAGE
PART
/ ELEMENT
DATAA B C 1 2
CTLíSet1) Src Dest EL Sw Depth
C 1234 KN1(16) PCH-Crs 1--4 +14
SHIFT PAGE
PART
/ ELEMENT
DATAA B C 1 2
CTLíSet1) Src Dest EL Sw Depth
C 1234 KN1(16) PCH-Crs --34 +14

Yamaha CS6X Specifications

General

Polyphony	64 voices
Multitimbral	16 parts
Keyboard	61 keys
Arpeggiator	Yes
Sampling	No
Waveform ROM	16MB
Velocity Sensitivity	Yes
Aftertouch	Yes
LFO	Yes
Display	LCD
Year Released	1999
Oscillators	AWM2
Effects	Reverb, Chorus
Outputs	Headphones
Memory	512 presets, 128 user
Storage	SmartMedia Card
Connectors	MIDI In/Out/Thru
Control	Pitch bend, Modulation wheel
Filter	Resonant multimode (low-pass, high-pass, band-pass)
