DSP-AX1/RX-V1
DSP-AX1/RX-V1
1. DSP THROUGH
There are 3 sub menu items (ANALOG BYPS, DSP 0dB, FULL BIT).
Details of DIAG menu
In each menu, “SPEAKERS” is always set to “LARGE”, D-RANGE to “MAX”, LFE LEVEL to 0dB (-10dB when
DOLBY DIGITAL is used) and CENTER DELAY to 0ms unless otherwise specified.
AC3D2av outputs signals using 2ch though. (L/F)
• DSP6#1 outputs the L/R input signals to C/LFE (SD611), RLef/RRef (SD613), FL/FR (SD614),
RC (SD615, L only).
• DSP6#2 outputs the output signals from DSP6#1 to C/RC (SD621), RL/RR (SD623), FL/FR
(SD622), SWL/SWR (SD624).
Note: (SDxxx) represents a terminal name of DSP6#1 and DSP6#2.
ANALOG BYPS [Remote control code: 7A—90(PRG 9)]
• The input mode is fixed to use the analog (A/D) system.
• The L/R signal is output through the analog bypass without using the DSP section.
• C/RC, RL/RR, FL/FR, SWL/SWR signals are output using L/R through via DSP.

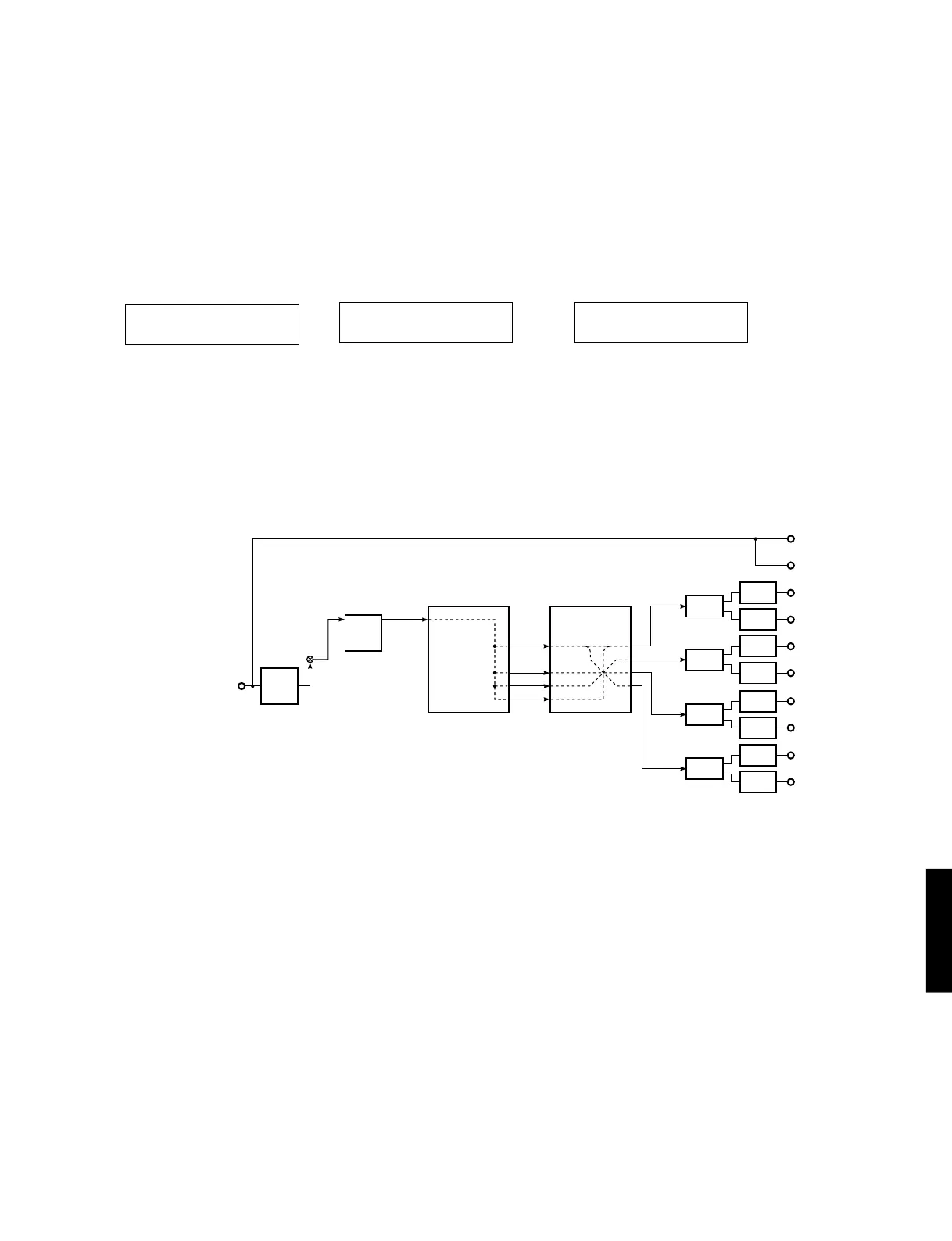

1. DSP THROUGH
ANALOG BYPS
AC3D2av
YSS918
PCM THR
DSP6#2 YSS910
A/D
AK5383
ANALOG
SWL
SWR
FILTER
DF1704
D/A
PCM1704
D/A
PCM1704
RL
RR
FILTER
DF1704
D/A
PCM1704
D/A
PCM1704
FL
FR
FILTER
DF1704
D/A
PCM1704
D/A
PCM1704
C
RC
FILTER
DF1704
D/A
PCM1704
D/A
PCM1704
L
R
DSP6#1 YSS910
L/R
C/LFE
LFE
RLef/RRef
FL/FR
RC/ZERO
RC
FL/FR
RL/RR
SWL/SWR
C/RC
IC3
IC6
IC7 IC8
IC4
1. DSP THROUGH
DSP 0dB
1. DSP THROUGH
FULL BIT
16
RLef : RL EFFECT
RRef : RR EFFECT
ZERO : Digital 0
CD ANALOG IN : – 20dBV, Both ch
VOLUME : MAX
PRE OUT
MAIN L (1kHz) : – 3.7dBV
MAIN R (1kHz) : – 3.7dBV
CENTER (1kHz) : – 3.2dBV
REAR CENTER (1kHz) : – 3.4dBV
FRONT L (1kHz) : – 3.5dBV
FRONT R (1kHz) : – 3.4dBV
REAR L (1kHz) : – 3.4dBV
REAR R (1kHz) : – 3.3dBV
SW L (50Hz) : – 3.3dBV
SW R (50Hz) : – 3.3dBV
SW MONO (50Hz) : + 2.7dBV
