DSP-AX1/RX-V1
DSP-AX1/RX-V1
DIR5
YSD917
AC3D2av
YSS918
PCM THR
DSP6#2 YSS910
AC3Dav
YSS908
PRO LOGIC
A/D
AK5383
DIGITAL
ANALOG
4M DRAM
RL
RR
FILTER
DF1704
D/A
PCM1704
D/A
PCM1704
RC
FILTER
DF1704
D/A
PCM1704
DSP6#1 YSS910
LSt/RSt
LSt/RSt
LS/RS
RC/ZERO
RLdr/RRdr RL/RR
RL/RR
RC
RC/ZERO RC
RL/RR
RC
IC3
IC6
IC7 IC8
IC2
IC5
IC35
IC4
ANALOG
L
R
IC11

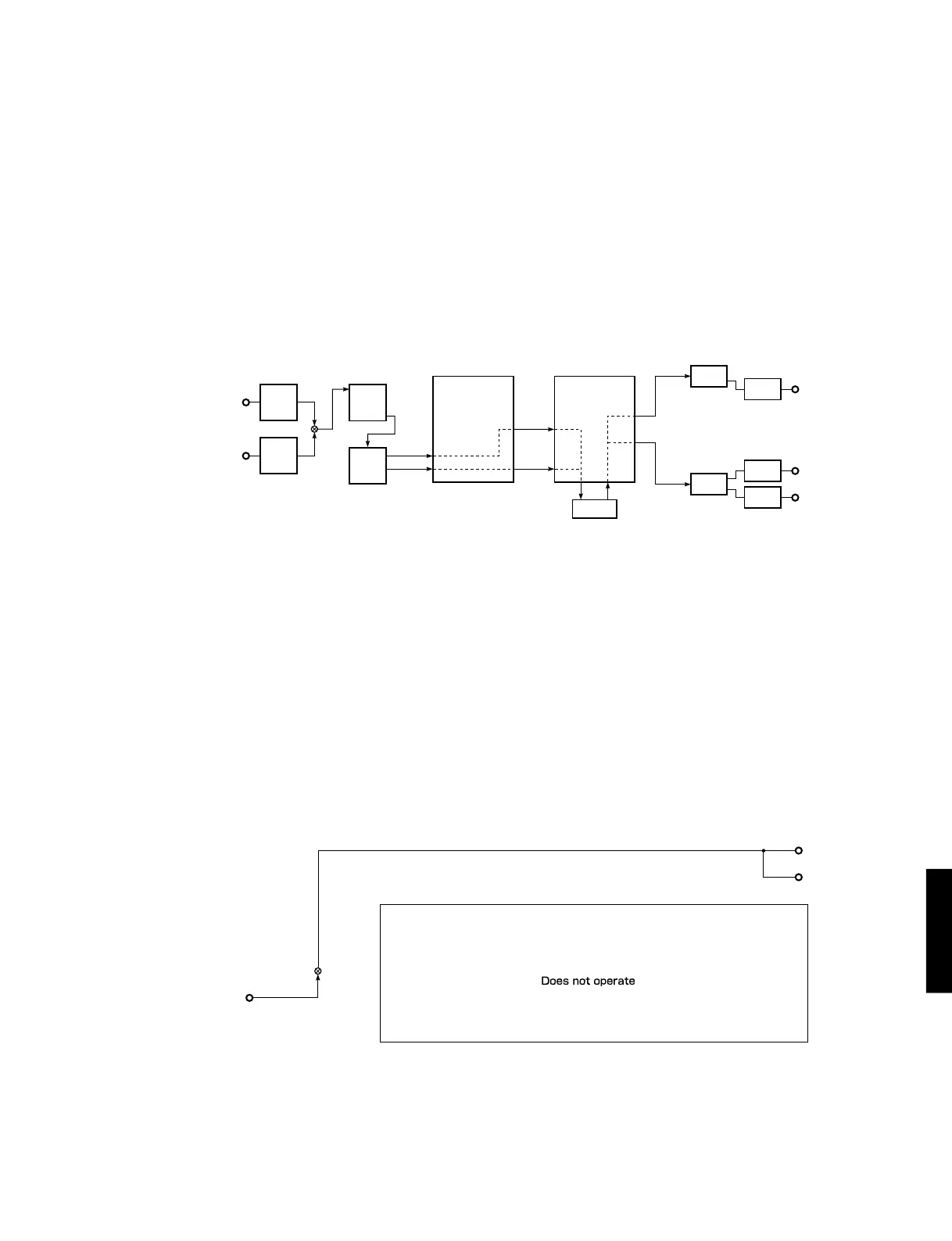

DSP BLOCK
YSS908 [Remote control code: 7A—9D (SET UP)]
When the analog, PCM audio or DOLBY DIGITAL 2/0 mode is used, LS, RS, RC signals are pro-logic
decoded in YSS908 and output.
When the DOLBY DIGITAL mode other than 2/0 is used, the pro logic function does not work and they
are muted.
(2-ch source) ... Muted in the case of multi-ch source
• AC3D2av outputs 2-ch input signals from LSt/RSt (SDA21).
• AC3D2av outputs signals using DOLBY 3 Stereo decoding operation with the auto input balance off
(with -3dB gain).
• DSP6#1 outputs LS/RS to RLdr/RRdr (SD612) and RC to RC (SD615, L only) respectively.
• DSP6#2 outputs the output signals of DSP6#1 to RL/RR (SD623) and RC (SD621, R only) through
the external RAM.
EFFECT OFF [Remote control code: 7A—9E (SET INC)]
• The input mode is fixed to Analog.
• The L/R signal is output through ANALOG MAIN BYPASS.
22
CD ANALOG IN : – 20dBV, Both ch
VOLUME : MAX
PRE OUT
MAIN L (1kHz) : – ∞ dBV
MAIN R (1kHz) : – ∞ dBV
CENTER (1kHz/50Hz) : – 0.5dBV/ – 2.0dBV
REAR CENTER (1kHz) : – ∞ dBV
FRONT L (1kHz) : – ∞ dBV
FRONT R (1kHz) : – ∞ dBV
REAR L (1kHz/50Hz) : – 43.1dBV/ – 12.2dBV
REAR R (1kHz/50Hz) : – 38.7dBV/ – 12.1dBV
SW L (50Hz) : – ∞ dBV
SW R (50Hz) : – ∞ dBV
SW MONO (50Hz) : – 45.5dBV
CD ANALOG IN : – 20dBV, L ch only
VOLUME : MAX
PRE OUT
MAIN L (1kHz) : – ∞ dBV
MAIN R (1kHz) : – ∞ dBV
CENTER (1kHz) : – ∞ dBV
REAR CENTER (1kHz/50Hz) : – 42.6dBV/ – 13.6dBV
FRONT L (1kHz) : – ∞ dBV
FRONT R (1kHz) : – ∞ dBV
REAR L (1kHz/50Hz) : – 3.4dBV/ – 5.3dBV
REAR R (1kHz/50Hz) : – ∞ dBV/ – 39.2dBV
SW L (50Hz) : – ∞ dBV
SW R (50Hz) : – ∞ dBV
SW MONO (50Hz) : – 45.5dBV
