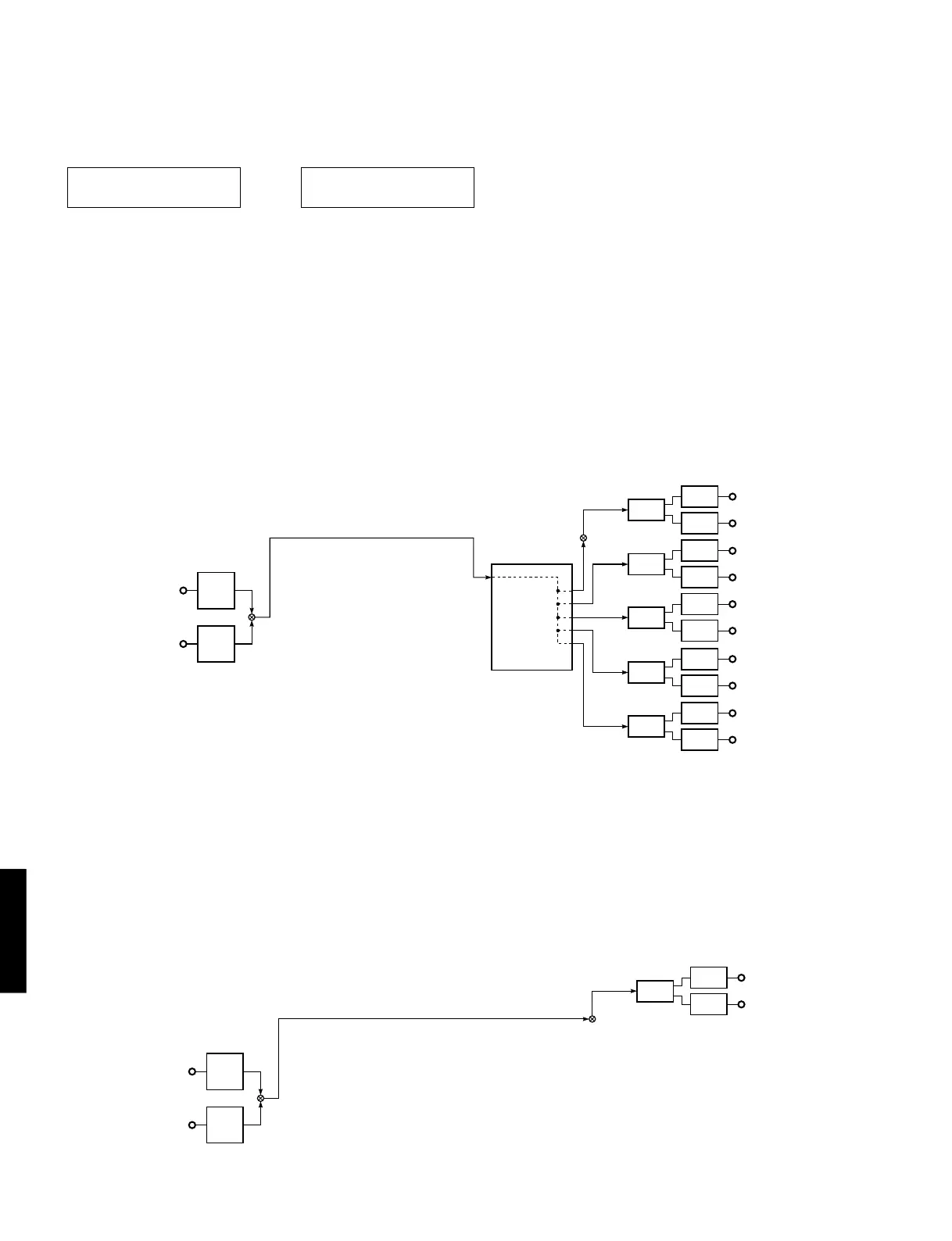

5. BYPASS
DECODER
5. BYPASS
DSP
DIR5
YSD917
DSP6#2 YSS910
L/R (DECODER BYPASS)
A/D
AK5383
DIGITAL
ANALOG
SWL
SWR
FILTER
DF1704
D/A
PCM1704
D/A
PCM1704
RL
RR
FILTER
DF1704
D/A
PCM1704
D/A
PCM1704
FL
FR
FILTER
DF1704
D/A
PCM1704
D/A
PCM1704
C
RC
FILTER
DF1704
D/A
PCM1704
D/A
PCM1704
L
R
FILTER
DF1704
D/A
PCM1704
D/A
PCM1704
FL/FR
RL/RR
SWL/SWR
C/RC
L/R
IC3
IC8
IC2
IC4
IC57
DIR5
YSD917
L/R (DECODER BYPASS)
A/D
AK5383
DIGITAL
ANALOG
L
R
FILTER
DF1704
D/A
PCM1704
D/A
PCM1704
L/R
IC3
IC2
IC4
IC57
5. BYPASS
Only PCM and analog modes are used for input signals. The bypassing operation is used according to
the menu setting. There are two sub-menu items (DECODER, DSP). This menu is useful when locat-
ing the faulty part by bypassing the decoder LSI and DSP6.
DECODER [Remote control code: 7A—9F (SET DEC)]
(2-ch source) ... Muted in the case of multi-ch source
• AC3D2av, AC3Dav and DSP6#1 are muted.
• DIR5 or A/D output (SDAT) signals are input directly to DSP6#2 and output to L/R (SD620), C/RC
(SD621), RL/RR (SD623), FL/FR (SD622) and SWL/SWR (SD624).
DSP [Remote control code: ––––]
(2-ch source) ... Muted in the case of multi-ch source
• AC3D2av, AC3Dav, DSP6#1 and DSP6#2 are muted.
• The DIR5 or A/D output (SDAT) signal is input directly to DAC and L/R is reproduced.
23
CD ANALOG IN : – 20dBV, Both ch
VOLUME : MAX
PRE OUT
MAIN L (1kHz) : – 7.5dBV
MAIN R (1kHz) : – 7.5dBV
CENTER (1kHz) : – 7.2dBV
REAR CENTER (1kHz) : – 7.4dBV
FRONT L (1kHz) : – 7.5dBV
FRONT R (1kHz) : – 7.4dBV
REAR L (1kHz) : – 1.4dBV
REAR R (1kHz) : – 1.3dBV
SW L (1kHz/50Hz) : + 7.7dBV/ + 7.5dBV
SW R (1kHz/50Hz) : + 7.7dBV/ + 7.5dBV
SW MONO (1kHz/50Hz) : + 13.8dBV/ + 13.5dBV
Reference
CD ANALOG IN : – 20dBV, Both ch
VOLUME : MAX
PRE OUT
MAIN L (1kHz) : – 3.4dBV
MAIN R (1kHz) : – 3.4dBV
CENTER (1kHz) : – ∞ dBV
REAR CENTER (1kHz) : – ∞ dBV
FRONT L (1kHz) : – ∞ dBV
FRONT R (1kHz) : – ∞ dBV
REAR L (1kHz) : – ∞ dBV
REAR R (1kHz) : – ∞ dBV
SW L (50Hz) : – ∞ dBV
SW R (50Hz) : – ∞ dBV
SW MONO (50Hz) : – ∞ dBV
Reference
