Yamaha E25B - Components; Components Diagram; Fuel Tank

14
Components
EMU2579T

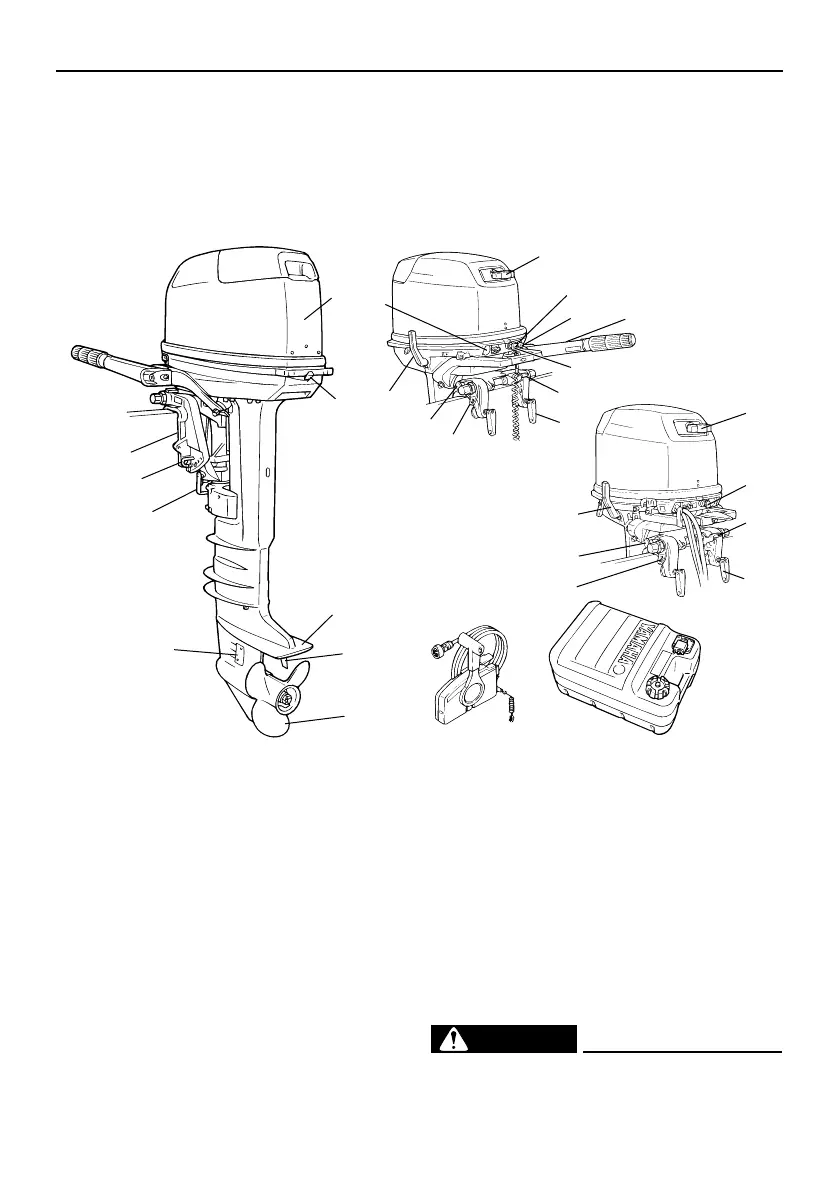

Components diagram
TIP:
* May not be exactly as shown; also may not be included as standard equipment on all mod-
els (order from dealer).
E25B, 25B, 25X, 30H
EMU25802
Fuel tank
If your model was equipped with a portable
fuel tank, its function is as follows.
WARNING
EWM00020
The fuel tank supplied with this engine is
9
8
7
6
3
4
5
2
1
19
18
17
11
12
13
14
11
19
18
17
15
16
14
15
16
21
22
10
20
ZMU07130
1. Top cowling
2. Cowling lock lever
3. Anti-cavitation plate
4. Trim tab
5. Propeller*
6. Cooling water inlet
7. Shallow water lever
8. Trim rod
9. Clamp bracket
10. Clip*
11. Manual starter handle
12. Engine stop button/Engine shut-off switch*
13. Tiller handle*
14. Choke knob
15. Tilt lock lever
16. Clamp screw
17. Restraint cable attachment
18. Tilt support knob
19. Gear shift lever
20. 2-pin connector*
21. Remote control box (binnacle mount type)*
22. Fuel tank
