Yamaha E25B - 2-Pin Connector; Battery Charging Information

Components
22

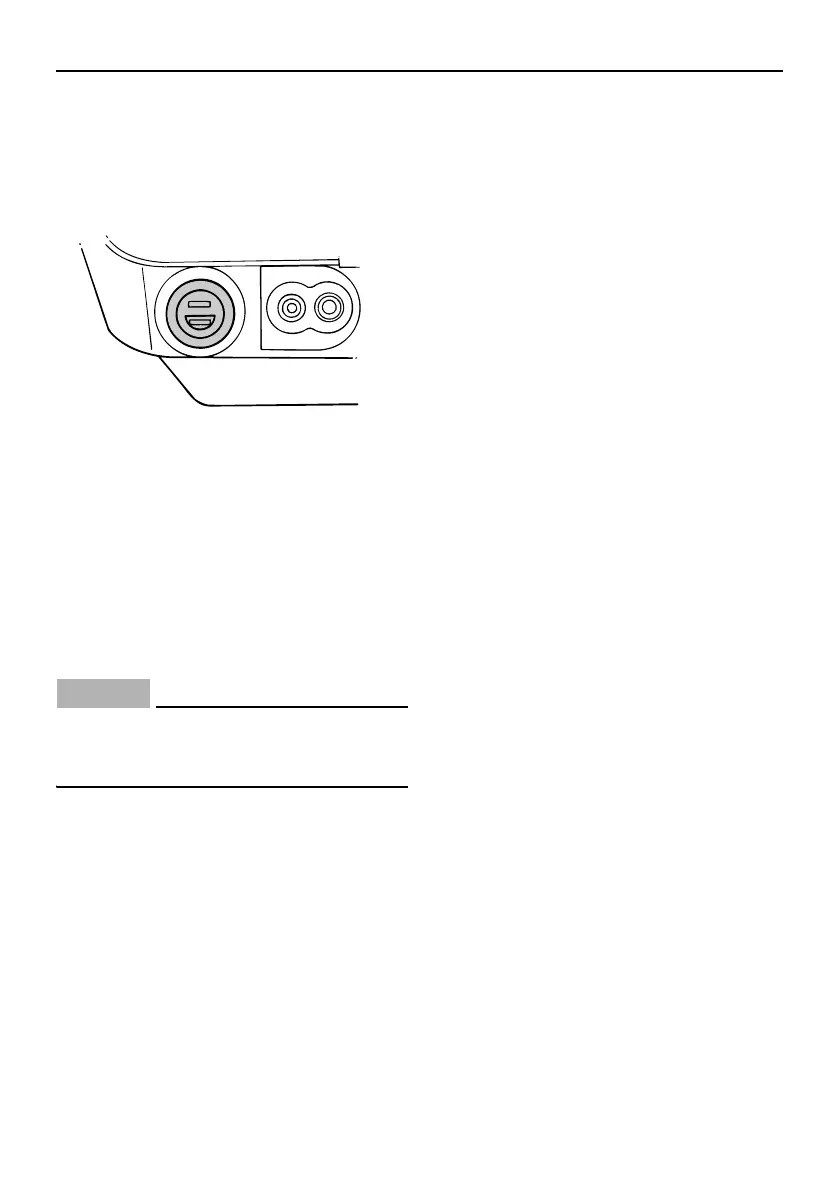

EMU26410
2-pin connector
AC 12 V-40/60/80W power is delivered
through this connector. When using it, keep
in mind the following points:
● Use a genuine Yamaha connector.
● Use lighting equipment only.
● Connect lighting equipment directly to the
2-pin connector.
● Capacity of the lighting equipment must be
more than 12 V-40/60/80W; otherwise the
bulb could burn out.
● When the connector is not in use, place
the cap on it.
NOTICE
ECM01000
Do not connect the 2-pin connector di-
rectly to the battery terminals. Otherwise
the electric system will be damaged.
EMU26420
Battery charging information
If you need to charge the battery, use a gen-
uine charge cable to make the charging cir-
cuit.
For details on the cable connections, consult
your Yamaha dealer.
TIP:
● Do not use the 2-pin connector while
charging. The battery will not be charged.
● If you need to use lighting equipment while
charging the battery, connect it to the bat-
tery, not to the 2-pin connector.
