Operation
42
EMU27872
Adjusting trim angle for manual tilt
models
There are 4 or 5 holes provided in the clamp
bracket to adjust the outboard motor trim an-
gle.
1. Stop the engine.
2. Tilt the outboard motor up, and then re-
move the trim rod from the clamp brack-
et.
3. Reposition the rod in the desired hole.
To raise the bow (“trim-out”), move the rod
away from the transom.
To lower the bow (“trim-in”), move the rod to-
ward the transom.
Make test runs with the trim set to different
angles to find the position that works best for
your boat and operating conditions.
EWM00400
● Stop the engine before adjusting the
trim angle.
● Use care to avoid being pinched when
removing or installing the rod.
● Use caution when trying a trim position
for the first time. Increase speed gradu-
ally and watch for any signs of instabil-
ity or control problems. Improper trim
angle can cause loss of control.
The outboard motor trim angle can be
changed approximately 4 degrees by shifting
the trim rod one hole.

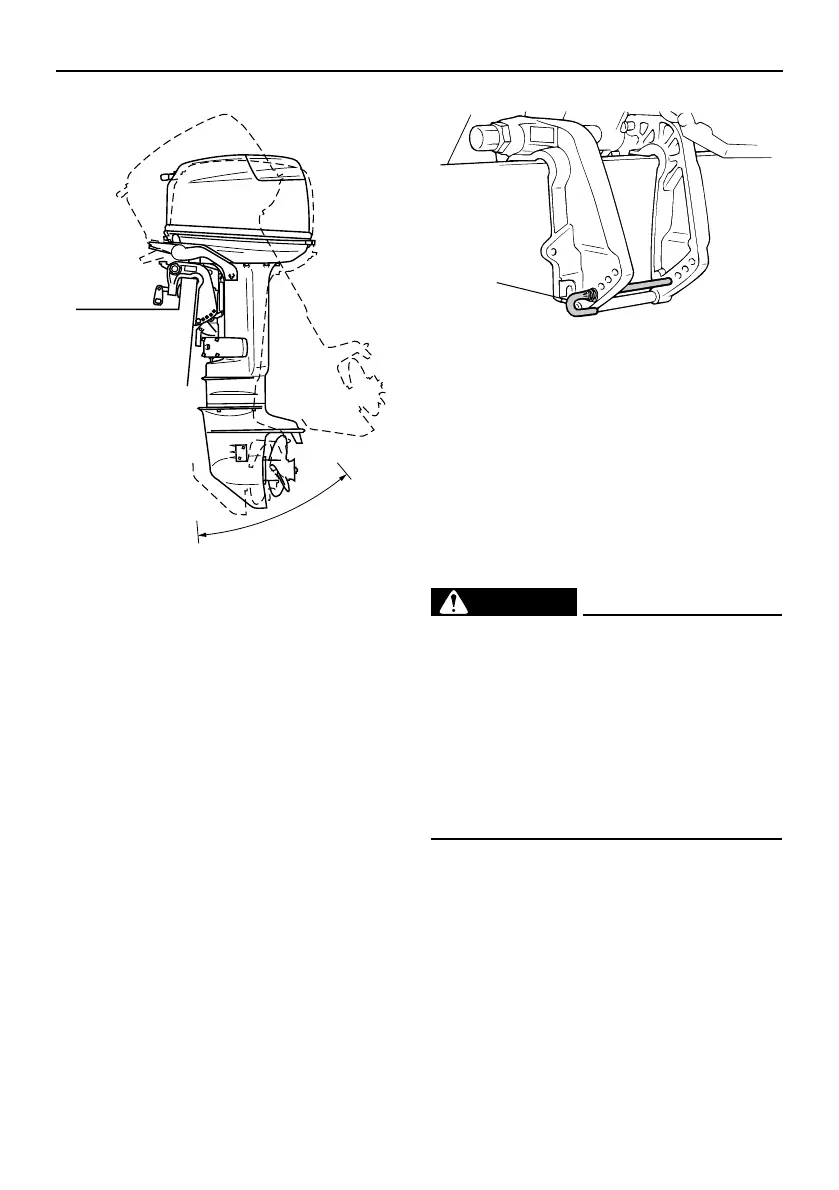

EMU27912
Adjusting boat trim
When the boat is on plane, a bow-up attitude
results in less drag, greater stability and effi-
ciency. This is generally when the keel line of
the boat is up about 3 to 5 degrees. With the
1. Trim operating angle
1. Trim rod
