Components
19
EMU26012

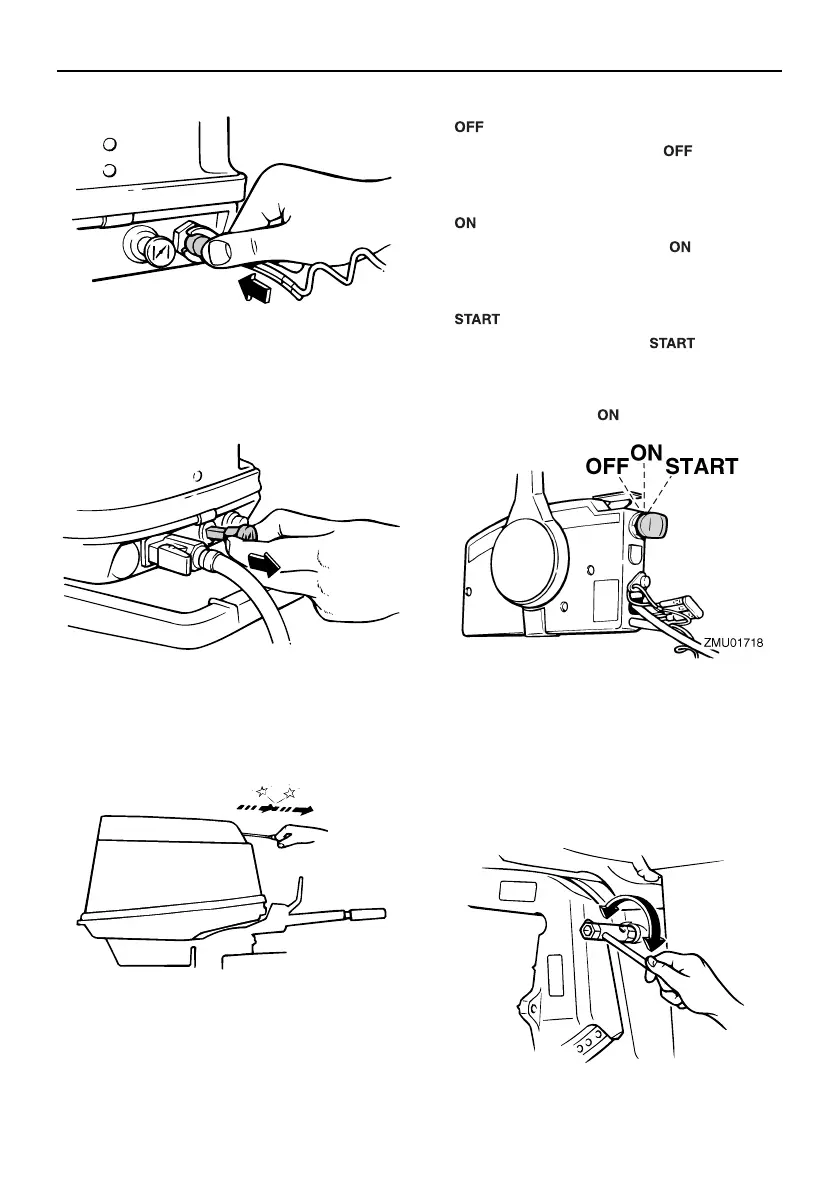

Choke knob for pull type
To supply the engine with the rich fuel mix-
ture required to start, pull out this knob.
EMU26073
Manual starter handle
The manual starter handle is used to crank
and start the engine.
EMU26091
Main switch
The main switch controls the ignition system;
its operation is described below.
● “” (off)
With the main switch in the “ ” (off) posi-
tion, the electrical circuits are off, and the key
can be removed.
● “” (on)
With the main switch in the “ ” (on) posi-
tion, the electrical circuits are on, and the key
cannot be removed.
● “” (start)
With the main switch in the “ ” (start) po-
sition, the starter motor turns to start the en-
gine. When the key is released, it returns
automatically to the “ ” (on) position.
EMU26122
Steering friction adjuster
A friction device provides adjustable resis-
tance to the steering mechanism, and can be
set according to operator preference. An ad-
justing screw or bolt is located on the swivel
bracket.
