Maintenance
57

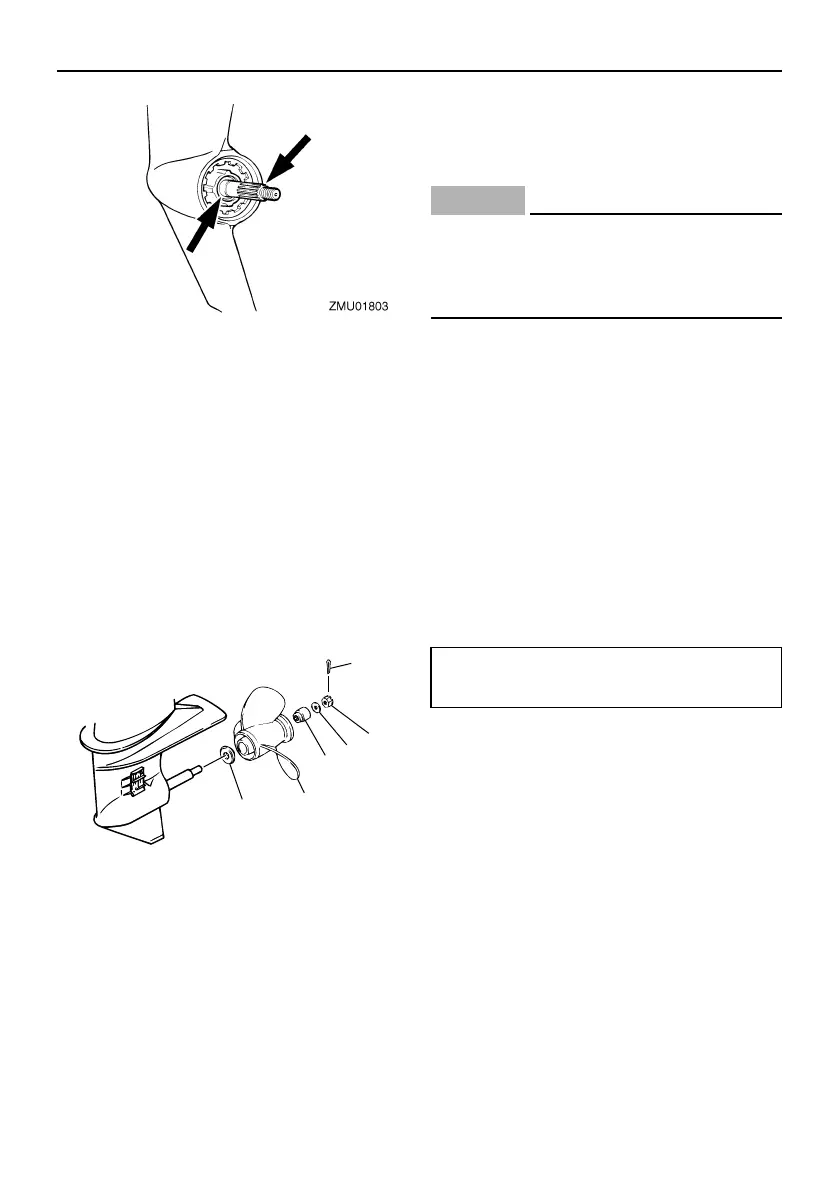

● Check the propeller shaft oil seal for dam-
age.
EMU30662
Removing propeller
EMU29197
Spline models
1. Straighten the cotter pin and pull it out
using a pair of pliers.
2. Remove the propeller nut, washer, and
spacer (if equipped). WARNING! Do
not use your hand to hold the propel-
ler when loosening the propeller nut.
[EWM01890]
3. Remove the propeller, washer (if
equipped), and thrust washer.
EMU30672
Installing propeller
EMU29234
Spline models
ECM00501
Make sure to use a new cotter pin and
bend the ends over securely. Otherwise,
the propeller could come off during oper-
ation and be lost.
1. Apply Yamaha marine grease or a corro-
sion resistant grease to the propeller
shaft.
2. Install the spacer (if equipped), thrust
washer, washer (if equipped), and pro-
peller on the propeller shaft. NOTICE:
Make sure to install the thrust washer
before installing the propeller. Other-
wise, the lower case and propeller
boss could be damaged.
[ECM01881]
3. Install the spacer (if equipped) and the
washer. Tighten the propeller nut to the
specified torque.
4. Align the propeller nut with the propeller
shaft hole. Insert a new cotter pin in the
hole and bend the cotter pin ends.
NOTICE: Do not reuse the cotter pin.
Otherwise, the propeller can come off
during operation.
[ECM01891]
1. Cotter pin
2. Propeller nut
3. Washer
4. Spacer
5. Propeller
6. Thrust washer
Propeller nut tightening torque:
35.0 Nm (3.57 kgf-m, 25.8 ft-lb)
69R-9-2A-1E0.book 57 ページ ２０１０年２月３日 水曜日 午後５時１８分
