Yamaha EF5500EFW - Battery Installation (EF5500 EFW)

– 15 –
1
2
3
4
5
Battery (For EF5500EFW)
(See page 34 for more details)
This generator is designed to be equipped with a
VRLA (Valve Regulated Lead Acid) battery. There is
no need to check the electrolyte or to add distilled
water.

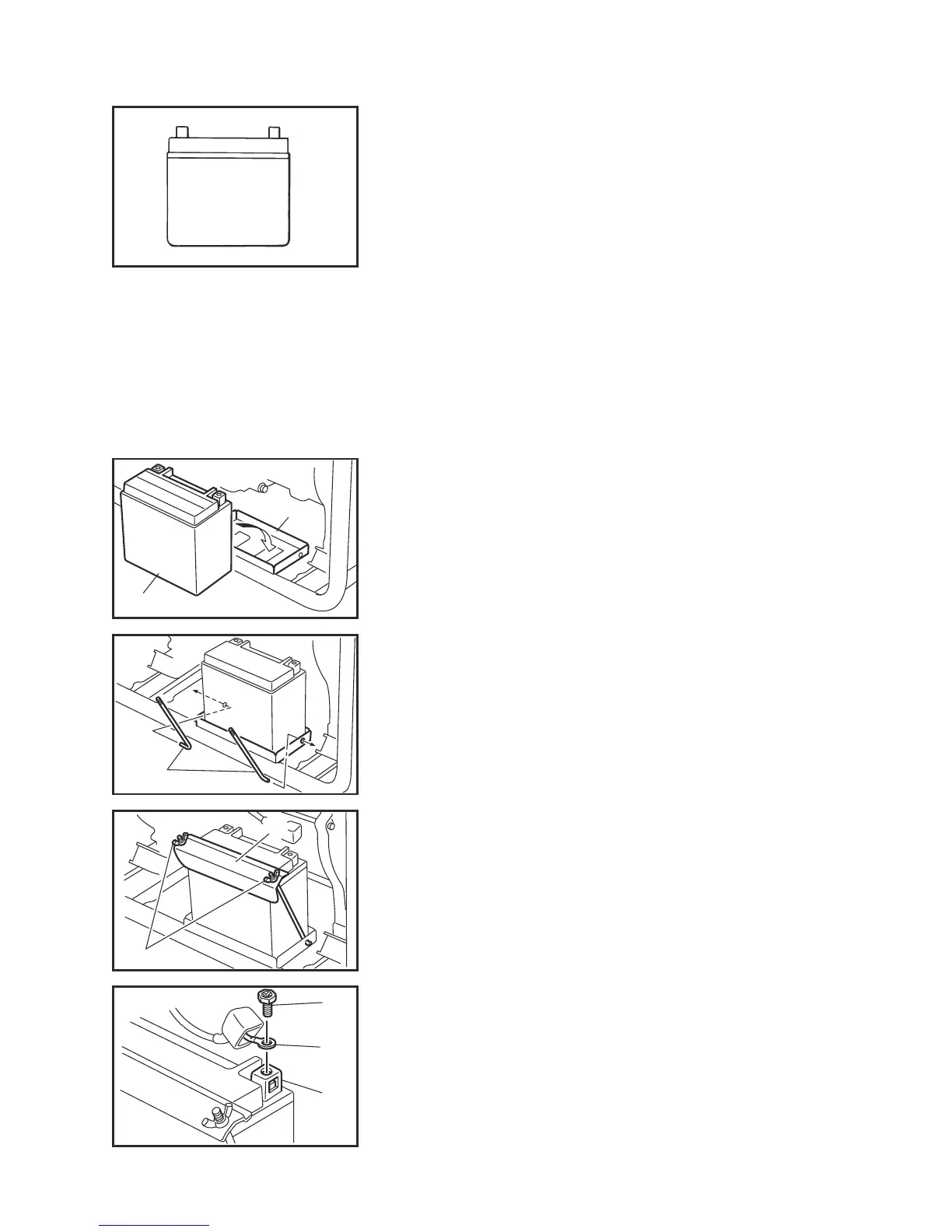

Installation
1. Turn the engine switch to “5” (STOP) to prevent
accidental short circuiting.
2. Place the battery on the battery mount tray.
1 Battery
2 Battery mount tray
3. Install the battery mounting rods and battery
mounting plate, and then install and tighten the
wing nuts.
3 Battery mounting rod
4 Wing nut
5 Battery mounting plate
8
6
7
4. Connect the positive lead (Red) to the positive (+)
battery terminal.
6 Bolt
7 Positive lead (Red)
8 Positive battery terminal
