Yamaha F150D - Control Systems

Components
19

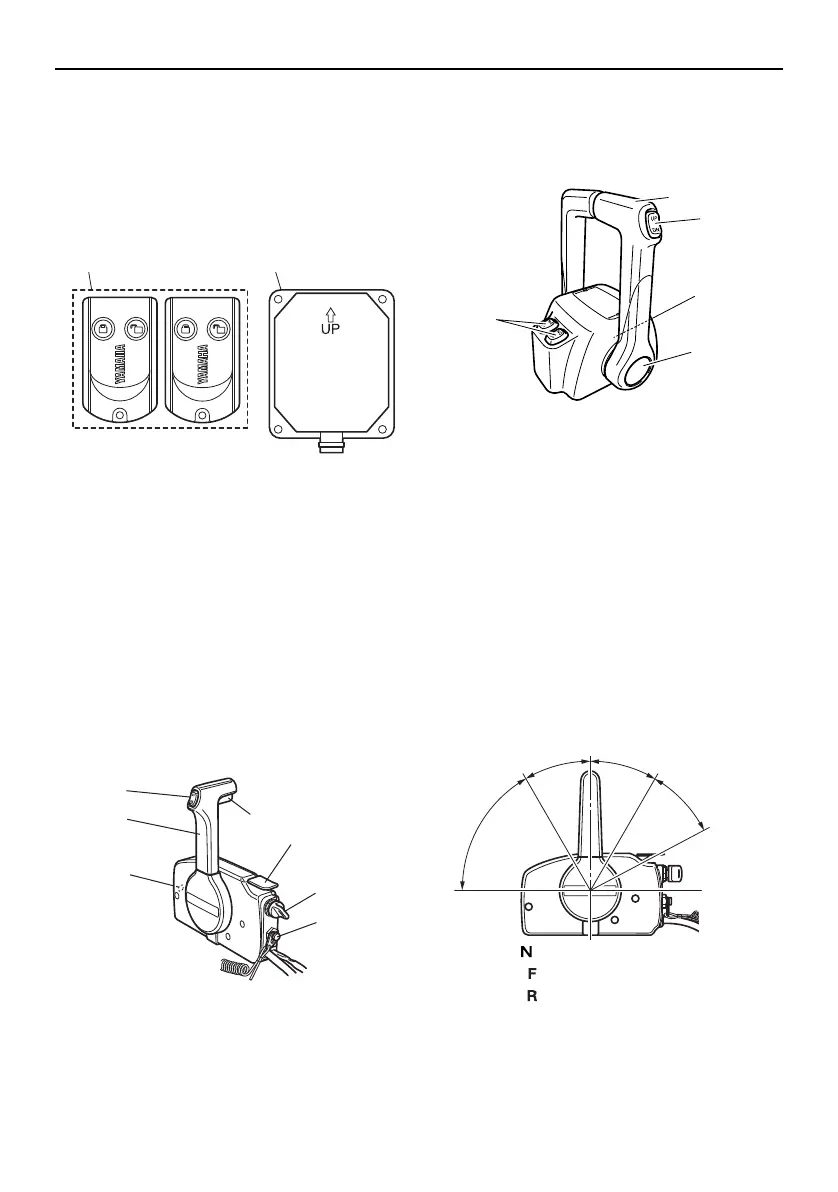

The Yamaha Security System, which pro-
tects against theft, consists of the receiver
and remote control transmitters. The Yamaha
Security System is available from your
Yamaha dealer. For details, consult your
Yamaha dealer.
The engine cannot be started if the security
system is in the lock mode. The engine can
be started only in the unlock mode. For more
information, see the installation and owner’s
manual included with the security system.
EMU26182
Remote control box
The remote control lever actuates both the
shifter and the throttle. The electrical switch-
es are mounted on the remote control box.
EMU26191
Remote control lever
Moving the lever forward from the neutral po-
sition engages forward gear. Pulling the lever
back from neutral engages reverse. The en-
gine will continue to run at idle until the lever
is moved about 35° (a detent can be felt).
Moving the lever farther opens the throttle,
and the engine will begin to accelerate.
1. Remote control transmitter
2. Receiver
1. Power trim and tilt switch
2. Remote control lever
3. Neutral interlock trigger
4. Neutral throttle lever
21
ZMU08527
1
2
3
5
4
6
7
ZMU01723
5. Main switch
6. Engine shut-off switch
7. Throttle friction adjuster
1. Remote control lever
2. Power trim and tilt switch
3. Free accelerator
4. Throttle friction adjuster
1. Neutral “ ”
2. Forward “ ”
3. Reverse “ ”
4. Shift
5. Fully closed
6. Throttle
2
3
2
1
4
ZMU04569
1
23
44
5
5
6
6
7
7
F
N
R
ZMU01725
