Water separator-alert indicator
This indicator will blink when water has accu-
mulated in the water separator. In such an
event, stop the engine and drain the water
from the separator.
This indicator only operates when a water
separator sensor is equipped.
EMU46662
6YC Multifunction meter
The 6YC Multifunction meter shows engine
status and alert information.
Multifunction display
TIP:
The optional items displayed on the multi-
function display can be changed. For infor-
mation on other settings or changing the
displayed optional items, see the operation
manual included with the 6YC Multifunction
meter.
This manual mainly covers the alert display of
the 6YC Multifunction meter. See the follow-
ing sections for information about the display
and indicators.
Indicators

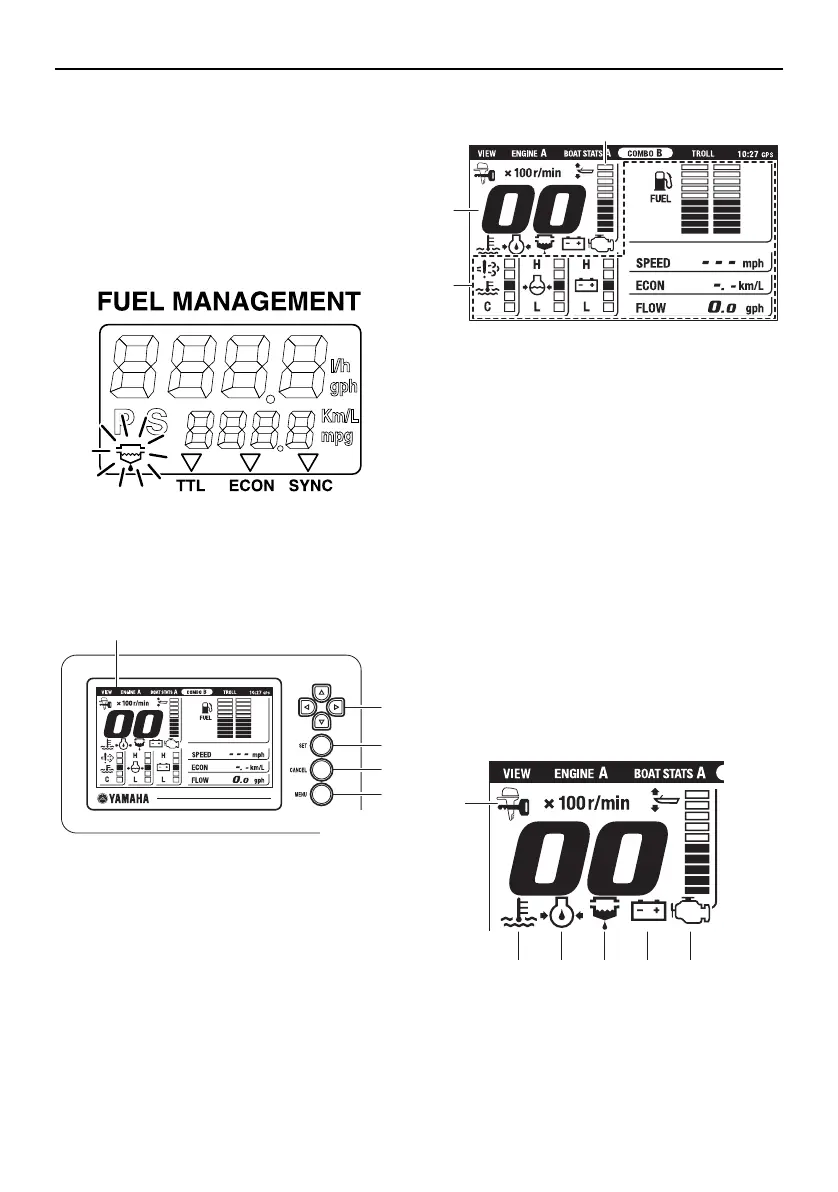

1. Multifunction display
2. Directional keypad
3. Set button
4. Cancel button
5. Menu button
ZMU01755
5
4
3
2
1
ZMU08323
1. Trim meter
2. Optional items
3. Tachometer
1. Yamaha Security System indicator (optional)
2. Engine trouble-alert indicator
3. Low battery voltage-alert indicator
4. Water separator-alert indicator
5. Low oil pressure-alert indicator
3
2
1
ZMU08324
6 5 4 3 2
1
ZMU08325
