Yamaha F150D - Main Switch; Power Trim and Tilt Switch on Remote Control

Components
22
EMU26092

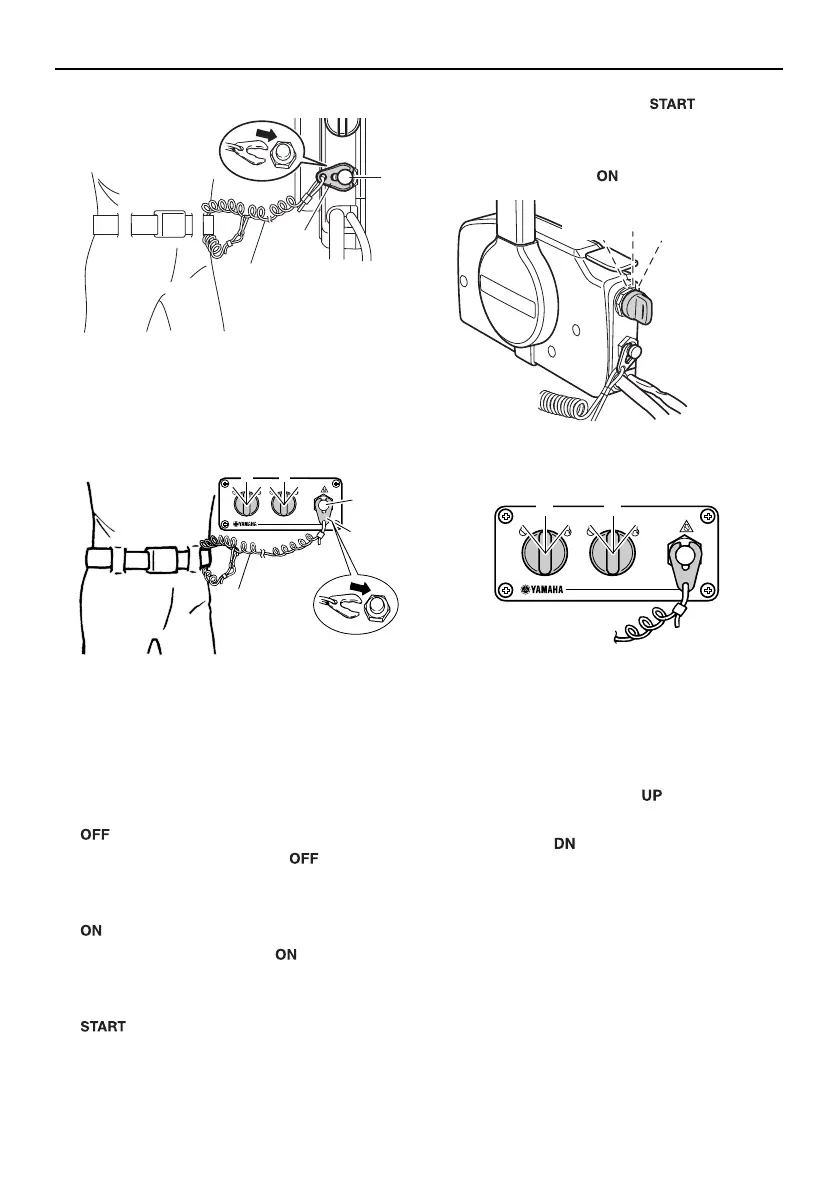

Main switch
The main switch controls the ignition system;
its operation is described below.
 “” (off)
With the main switch in the “ ” (off) posi-
tion, the electrical circuits are off, and the key
can be removed.
 “” (on)
With the main switch in the “ ” (on) position,
the electrical circuits are on, and the key can-
not be removed.
 “” (start)
With the main switch in the “ ” (start) po-
sition, the starter motor turns to start the en-
gine. When the key is released, it returns
automatically to the “ ” (on) position.
EMU32054
Power trim and tilt switch on remote
control
The power trim and tilt system adjusts the
outboard motor angle in relation to the tran-
som. Pushing the switch “ ” (up) trims the
outboard motor up, and then tilts it up. Push-
ing the switch “ ” (down) tilts the outboard
motor down and trims it down. When the
switch is released, the outboard motor will
stop in its current position. For instructions
on using the power trim and tilt switch, see
pages 55 and 57.
1. Engine shut-off cord (lanyard)
2. Clip
3. Engine shut-off switch
1. Engine shut-off cord (lanyard)
2. Clip
3. Engine shut-off switch
ZMU01716
1
2
3
ON
STARTOFF
ON
STARTOFF
1
2
3
ZMU05818
ON
STARTOFF
ZMU01718
ON
OFF
START
ON
OFF
START
ZMU05821
