4-5
REMOVING THE ENGINE
ENG
NOTE:
NOTE:
EB400700

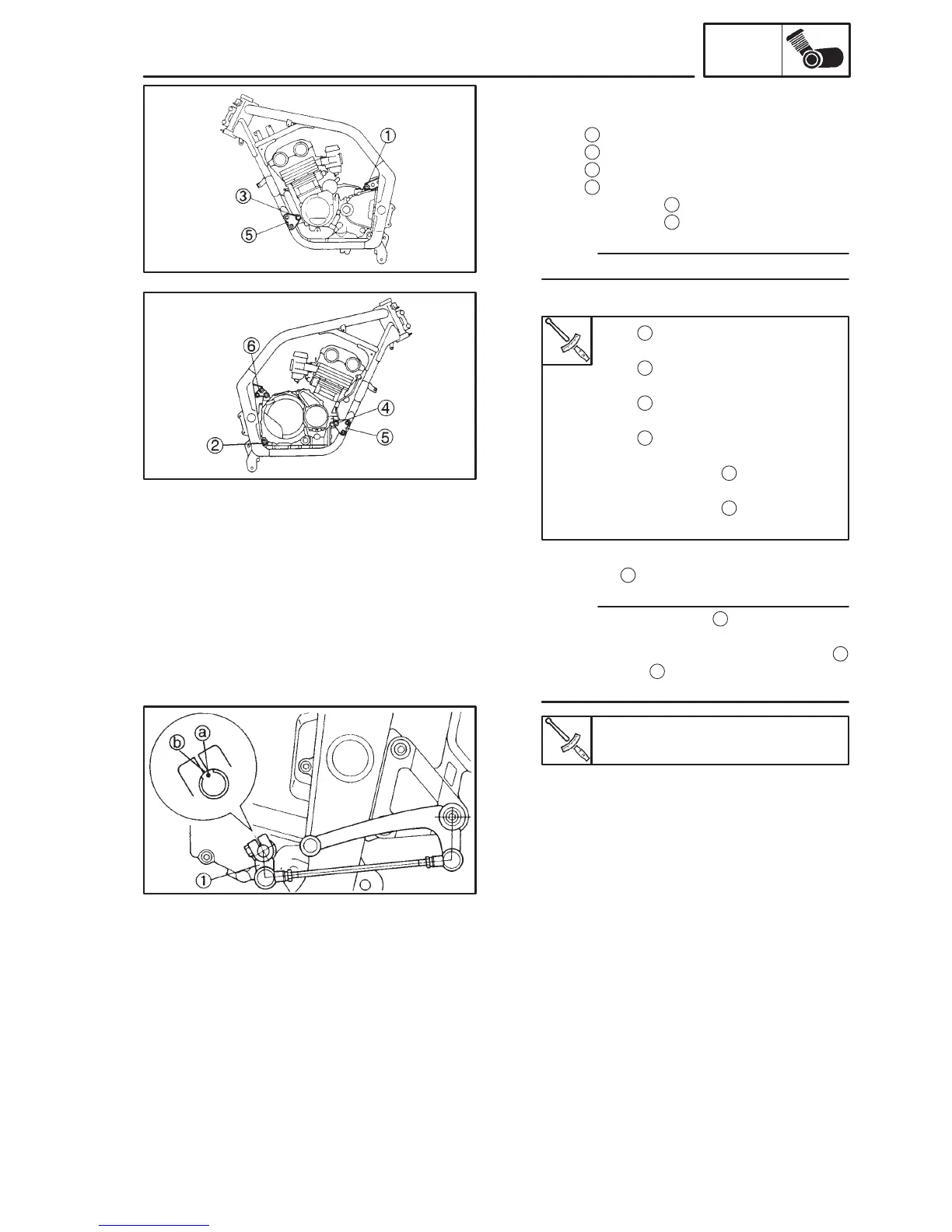

INSTALLING THE ENGINE
1.Install:
 bolt
1
 bolt
2
 bolt
3
 bolt
4
 engine bracket
5
 engine bracket
6
Do not fully tighten the bolts.
2.Tighten the bolts in the following order.
Bolt
1
55 Nm (5.5 mkg)
Bolt
2
55 Nm (5.5 mkg)
Bolt
3
55 Nm (5.5 mkg)
Bolt
4
55 Nm (5.5 mkg)
Engine bracket
5
33 Nm (3.3 mkg)
Engine bracket
6
10 Nm (10 mkg)
3.Install:
 shift arm
1
 Align the punch mark
a
in the shift shaft
with the slot in the shift arm.
 Align the bottom edge of the shift pedal
b
with the mark
a
on the frame-to-swingarm
bracket.
Shift arm bolt
10 Nm (1.0 mkg)

Yamaha fzs 600 1998 Specifications

General

Year	1998
Manufacturer	Yamaha
Model	FZS 600
Category	Motorcycle
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Tire	160/60-ZR17
Width	740 mm
Wheelbase	1, 440 mm
Displacement	599 cc
Ignition	Digital
Rear Suspension	Swingarm
Front Brakes	Dual 298 mm discs, 2-piston calipers
Rear Brakes	245 mm disc 1 piston caliper
Front Tire	120/70-ZR17
Height	1, 190 mm
Seat Height	790 mm
Fuel Capacity	18 liters
Engine Type	Liquid cooled, 4 stroke, transverse inline 4 cylinder, DOHC, 4 valves per cylinder
Bore x Stroke	62.0 x 49.8 mm / 2.4 x 2.0 inches
