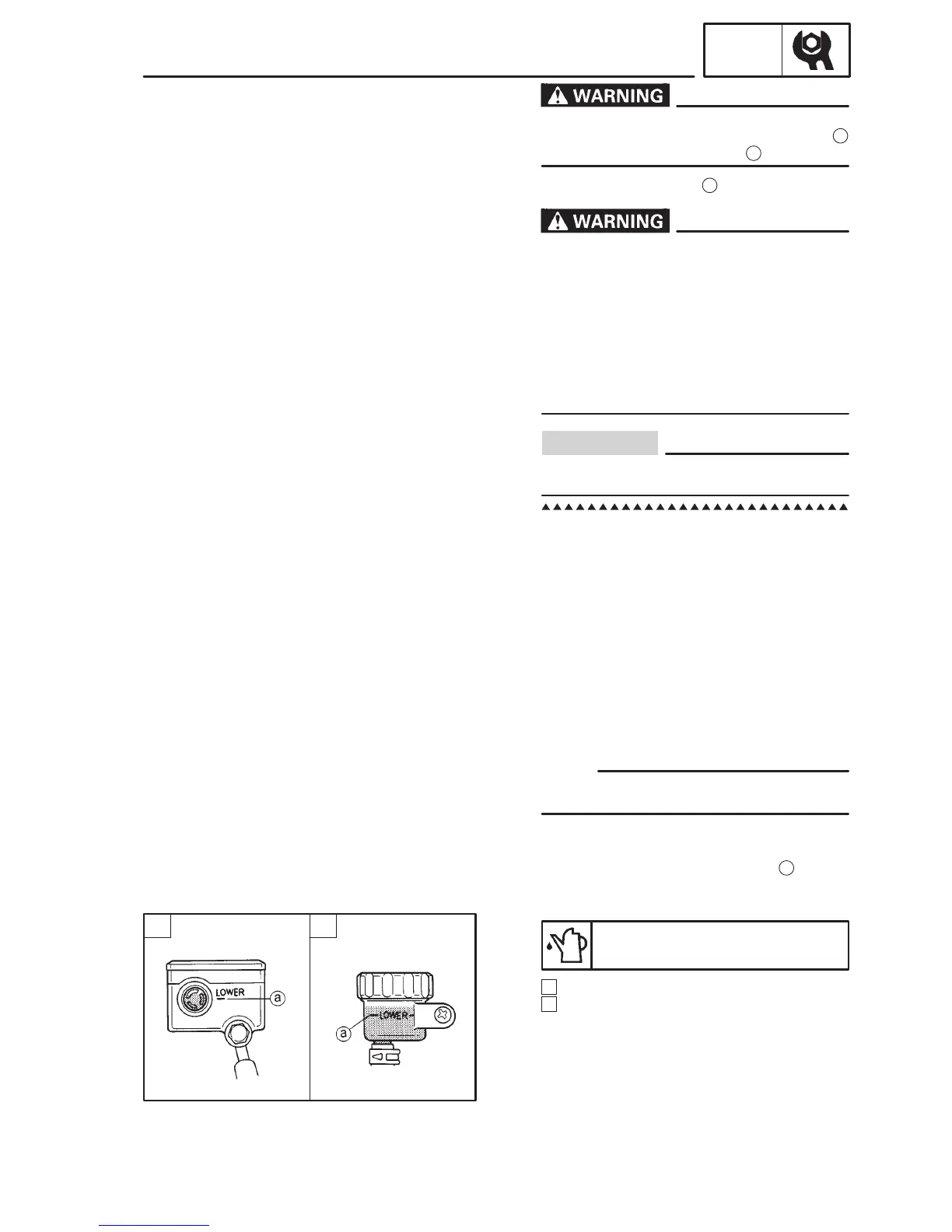

ADJUSTING THE REAR BRAKE/
CHECKING THE BRAKE FLUID LEVEL
CHK
ADJ
A B
CAUTION:
NOTE:
After adjusting the brake pedal position,
check that the end of the adjusting bolt
2
is visible through the hole
c
.
c. Tighten the locknut
1
to specification.
A soft or spongy feeling in the brake ped-
al can indicate the presence of air in the
brake system. Before the vehicle is oper-
ated, the air must be removed by bleed-
ing the brake system. Air in the brake
system will considerably reduce braking
performance and could result in loss of
control and possibly an accident. There-
fore, inspect and, if necessary, bleed the
brake system.
After adjusting the brake pedal position,
make sure that there is no brake drag.
3.Adjust:
 rear brake light switch
Refer to “ADJUSTING THE REAR BRAKE
LIGHT SWITCH”.
EB304020
CHECKING THE BRAKE FLUID LEVEL
1.Stand the motorcycle on a level surface.
 Place the motorcycle on a suitable stand.
 Make sure that the motorcycle is upright.
2.Check:
 brake fluid level
Below the minimum level mark
a
 Add
the recommended brake fluid to the proper
level.
Recommended brake fluid
DOT4
A
Front brake
B
Rear brake

Yamaha fzs 600 1998 Specifications

General

Year	1998
Manufacturer	Yamaha
Model	FZS 600
Category	Motorcycle
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Tire	160/60-ZR17
Width	740 mm
Wheelbase	1, 440 mm
Displacement	599 cc
Ignition	Digital
Rear Suspension	Swingarm
Front Brakes	Dual 298 mm discs, 2-piston calipers
Rear Brakes	245 mm disc 1 piston caliper
Front Tire	120/70-ZR17
Height	1, 190 mm
Seat Height	790 mm
Fuel Capacity	18 liters
Engine Type	Liquid cooled, 4 stroke, transverse inline 4 cylinder, DOHC, 4 valves per cylinder
Bore x Stroke	62.0 x 49.8 mm / 2.4 x 2.0 inches
