Yamaha fzs 600 1998 User Manual

4-59
10 Nm (1.0 mkg)
Order Job name/Part name Q’ty Remarks
1
2
3
4
5

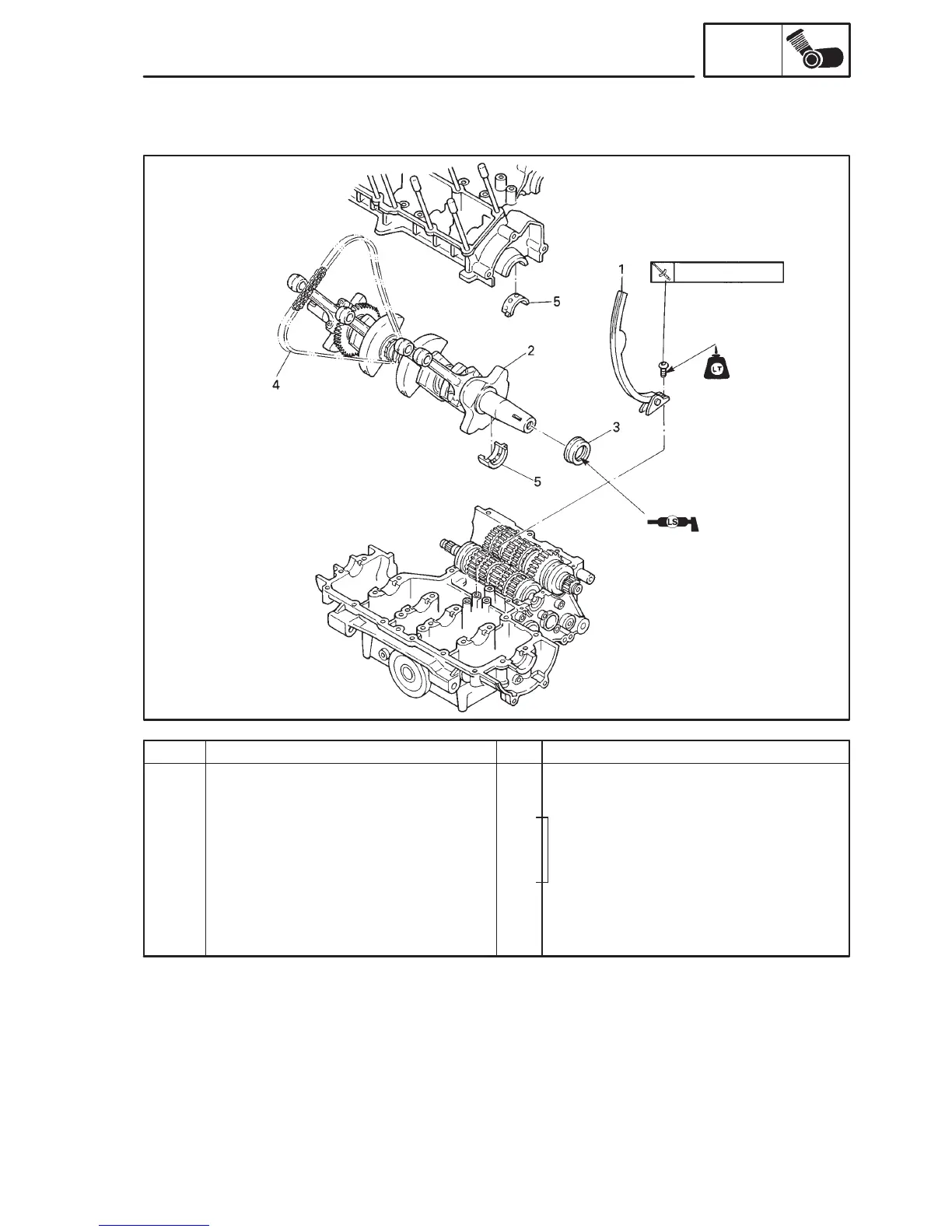

Removing the crankshaft
Disassembly the crankcase
Timing chain guide (intake side)
Crankshaft assembly
Oil seal
Timing chain
Crankshaft journal bearing
1
1
1
1
12
Remove the parts in the order listed.
Refer to “CRANKCASE” section.
Refer to “REMOVING/INSTALLING THE
CRANKSHAFT ASSEMBLY” section.
For installation, reverse the removal
procedure.
CRANKSHAFT
ENG
CRANKSHAFT

Yamaha fzs 600 1998 Specifications

General

Year	1998
Manufacturer	Yamaha
Model	FZS 600
Category	Motorcycle
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Tire	160/60-ZR17
Width	740 mm
Wheelbase	1, 440 mm
Displacement	599 cc
Ignition	Digital
Rear Suspension	Swingarm
Front Brakes	Dual 298 mm discs, 2-piston calipers
Rear Brakes	245 mm disc 1 piston caliper
Front Tire	120/70-ZR17
Height	1, 190 mm
Seat Height	790 mm
Fuel Capacity	18 liters
Engine Type	Liquid cooled, 4 stroke, transverse inline 4 cylinder, DOHC, 4 valves per cylinder
Bore x Stroke	62.0 x 49.8 mm / 2.4 x 2.0 inches
