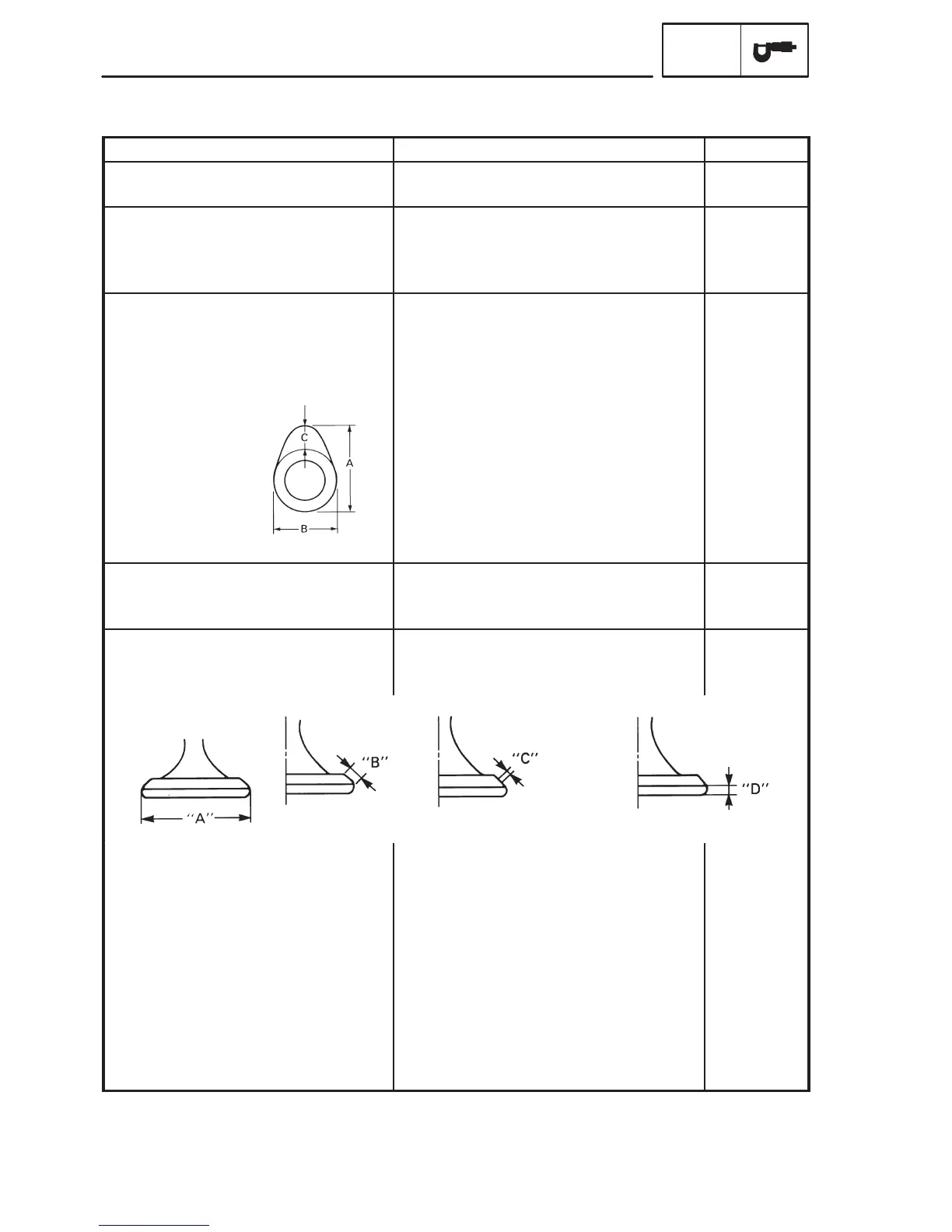

MAINTENANCE SPECIFICATIONS
SPEC
Face Width Seat Width Margin Thickness
MAINTENANCE SPECIFICATIONS
ENGINE
Item
Standard Limit
Cylinder head:
Warp limit
 0.05 mm
Cylinder:
Bore size
Taper limit
Out of round limit
62.00  62.01 mm


62.1 mm
0.09 mm
0.07 mm
Camshaft:
Drive method
Cam cap inside dia.
Camshaft out side dia.
Camshaft to cap clearance
Cam dimensions:
Intake “A”
“B”
“C”
Exhaust “A”
“B”
“C”
Camshaft runout limit
Chain drive (center)
23.000  23.021 mm
23.967  22.980 mm
0.020  0.054 mm
32.75  32.85 mm
25.0  25.1 mm
7.65  7.85 mm
32.45  32.55 mm
24.95  25.05 mm
7.4  7.6 mm




0.08 mm
32.7 mm
24.95 mm
7.5 mm
32.4 mm
24.9 mm
7.25 mm
0.03 mm
Cam chain:
Cam chain type/No. of links
Cam chain adjustment method
92RH2010J/130
Automatic


Valve, valve seat, valve guide:
Valve clearance (cold) IN
EX
0.11  0.20 mm
0.21  0.30 mm


Valve dimensions:
“A” head dia. IN
EX
“B” face width IN
EX
“C” seat width IN
EX
“D” margin thickness IN
EX
Stem outside dia. IN
EX
Guide inside dia. IN
EX
23.9  24.1 mm
20.9  21.1 mm
1.56  2.40 mm
1.56  2.40 mm
0.9  1.1 mm
0.9  1.1 mm
0.6  0.8 mm
0.6  0.8 mm
3.975  3.990 mm
3.960  3.975 mm
4.000  4.012 mm
4.000  4.012 mm




1.6 mm
1.6 mm
0.5 mm
0.5 mm
3.95 mm
3.935 mm
4.042 mm
4.042 mm

Yamaha fzs 600 1998 Specifications

General

Year	1998
Manufacturer	Yamaha
Model	FZS 600
Category	Motorcycle
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Tire	160/60-ZR17
Width	740 mm
Wheelbase	1, 440 mm
Displacement	599 cc
Ignition	Digital
Rear Suspension	Swingarm
Front Brakes	Dual 298 mm discs, 2-piston calipers
Rear Brakes	245 mm disc 1 piston caliper
Front Tire	120/70-ZR17
Height	1, 190 mm
Seat Height	790 mm
Fuel Capacity	18 liters
Engine Type	Liquid cooled, 4 stroke, transverse inline 4 cylinder, DOHC, 4 valves per cylinder
Bore x Stroke	62.0 x 49.8 mm / 2.4 x 2.0 inches
