ADJUSTING THE THROTTLE CABLE FREE PLAY/
CHECKING THE SPARK PLUGS
CHK
ADJ
CAUTION:
NOTE:
After adjusting the throttle cable free
play, turn the handlebar to the right and
to the left to ensure that this does not
cause the engine idling speed to change.
4.Install:
 fuel pump
 ignition coil
 bracket
EB303040

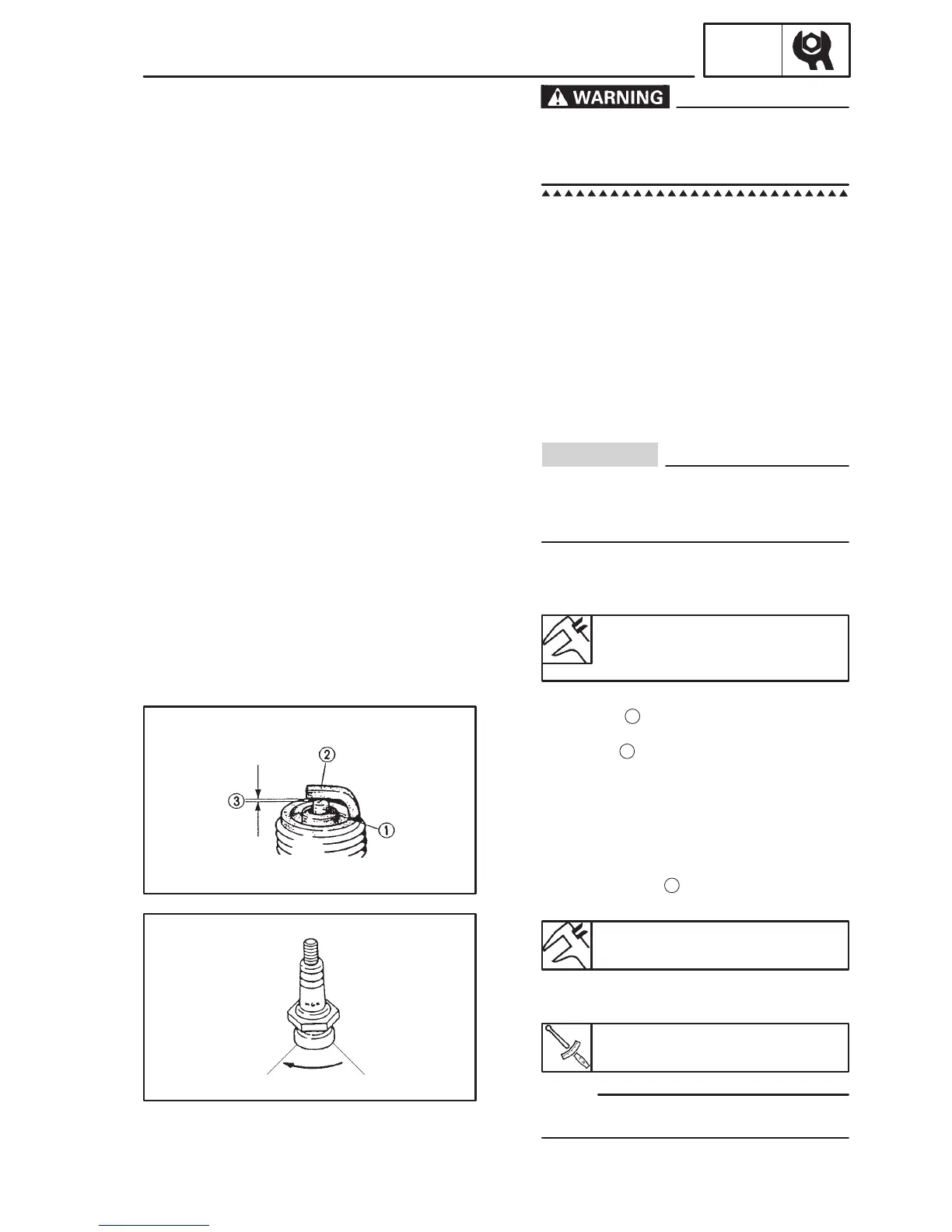

CHECKING THE SPARK PLUGS
The following procedure applies to all of the
spark plugs.
1.Disconnect:
 spark plug cap
2.Remove:
 spark plug
Before removing the spark plugs, blow
away any dirt accumulated in the spark
plug wells with compressed air to pre-
vent it from falling into the cylinders.
3.Check:
 spark plug type
Incorrect  Change.
Spark plug type (manufacturer)
CR8E (NGK)
U24ESR-N (DENSO)
4.Check:
 electrode
1
Damage/wear  Replace the spark plug.
 insulator
2
Abnormal color  Replace the spark plug.
Normal color is a medium-to-light tan color.
5. Clean:
 spark plug
(with a spark plug cleaner or wire brush)
6.Measure:
 spark plug gap
3
(with a specification  Regap.
Spark plug gap
0.7  0.8 mm
7.Install:
 spark plug
Spark plug
13 Nm (1.3 mkg)
Before installing the spark plug, clean the
spark plug and gasket surface.
