Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9

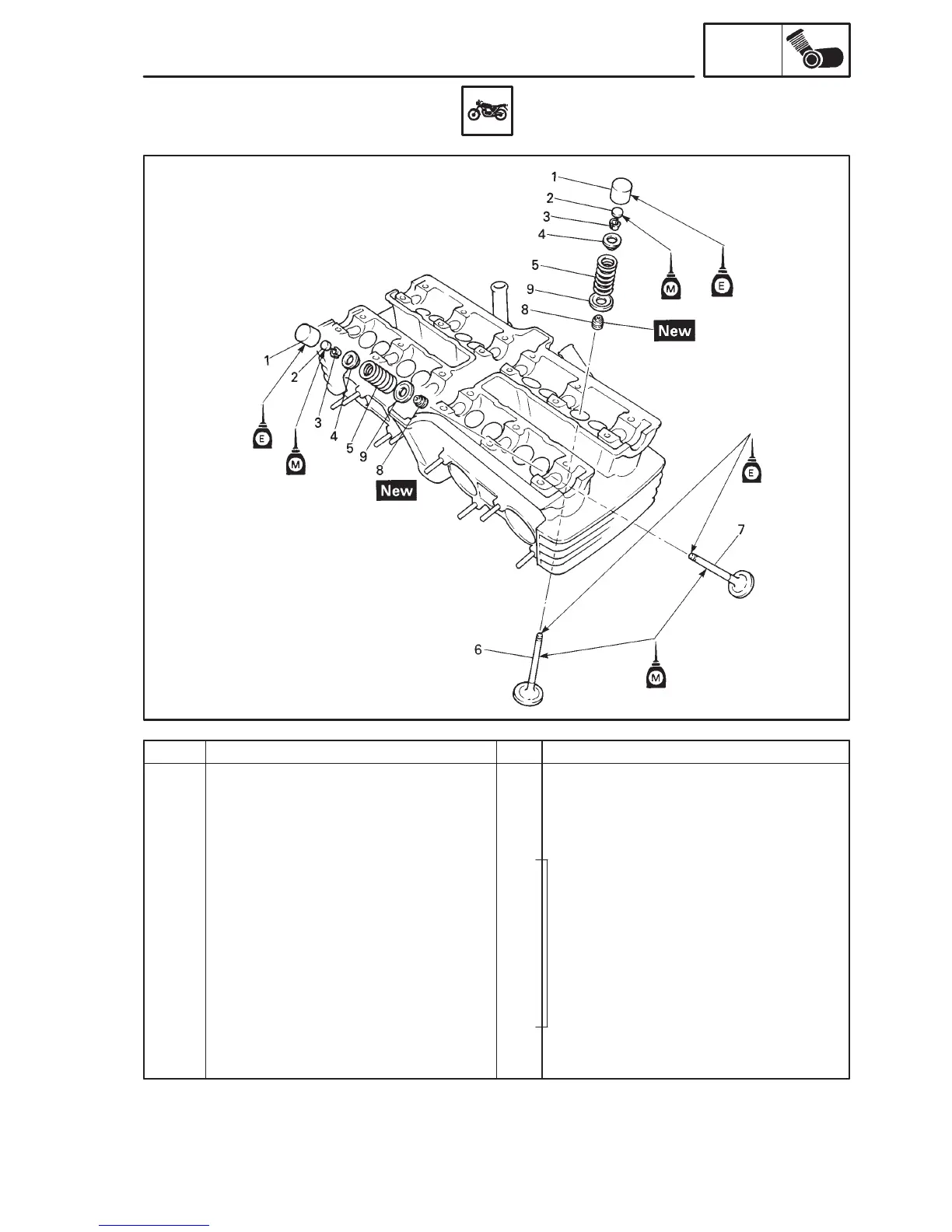

Removing the valves and valve
springs
Camshaft
Cylinder head
Valve lifter
Adjusting pad
Valve cotters
Upper spring seat
Valve spring
Valve (intake)
Valve (exhaust)
Oil seal
Lower spring seat
4
4
8
4
4
2
2
4
4
Remove the parts in the order listed.
Refer to “CAMSHAFT” section.
Refer to “CYLINDER HEAD” section.
Refer to “REMOVING/INSTALLING THE
VALVES” section.
For installation, reverse the removal
procedure.
VALVES AND VALVE SPRINGS
ENG
VALVES AND VALVE SPRINGS

Yamaha fzs 600 1998 Specifications

General

Year	1998
Manufacturer	Yamaha
Model	FZS 600
Category	Motorcycle
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Tire	160/60-ZR17
Width	740 mm
Wheelbase	1, 440 mm
Displacement	599 cc
Ignition	Digital
Rear Suspension	Swingarm
Front Brakes	Dual 298 mm discs, 2-piston calipers
Rear Brakes	245 mm disc 1 piston caliper
Front Tire	120/70-ZR17
Height	1, 190 mm
Seat Height	790 mm
Fuel Capacity	18 liters
Engine Type	Liquid cooled, 4 stroke, transverse inline 4 cylinder, DOHC, 4 valves per cylinder
Bore x Stroke	62.0 x 49.8 mm / 2.4 x 2.0 inches
