7-53
110 Nm (11.0 mkg)
52 Nm (5.2 mkg)1st
18 Nm (1.8 mkg)2nd
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8

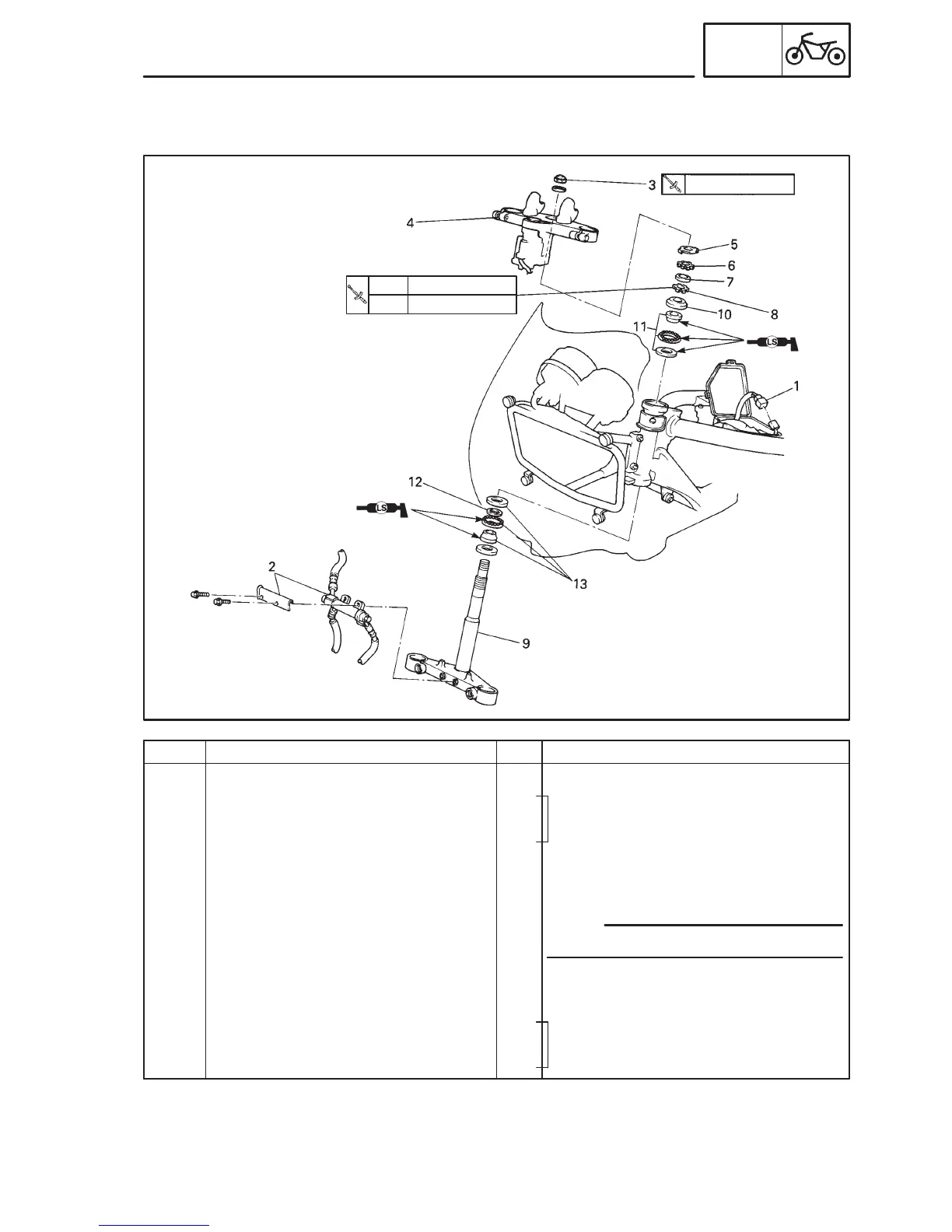

Removing the lower bracket
Front cowling
Fuel tank
Front wheel
Front fork
Handle bar
Main switch lead coupler
Brake hose joint/cover
Steering stem nut
Upper bracket
Lock washer
Ring nut (upper)
Rubber washer 1
Ring nut (lower)
1
1/1
1
1
1
1
1
1
Remove the parts in the order listed.
Refer to “FRONT COWUNG/SEAT/
SIDE COVER/FUEL TANK” section in
chapter 3
Refer to “FRONT WHEEL” section.
Refer to “FRONT FORK” section.
Refer to “HANDLEBAR” section.
Disconnect the coupler.
Refer to “REMOVING THE LOWER
BRACKET/INSTALLING THE STEER-
ING HEAD” section.
NOTE:
STEERING HEAD
CHAS
STEERING HEAD
LOWER BRACKET

Yamaha fzs 600 1998 Specifications

General

Year	1998
Manufacturer	Yamaha
Model	FZS 600
Category	Motorcycle
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Tire	160/60-ZR17
Width	740 mm
Wheelbase	1, 440 mm
Displacement	599 cc
Ignition	Digital
Rear Suspension	Swingarm
Front Brakes	Dual 298 mm discs, 2-piston calipers
Rear Brakes	245 mm disc 1 piston caliper
Front Tire	120/70-ZR17
Height	1, 190 mm
Seat Height	790 mm
Fuel Capacity	18 liters
Engine Type	Liquid cooled, 4 stroke, transverse inline 4 cylinder, DOHC, 4 valves per cylinder
Bore x Stroke	62.0 x 49.8 mm / 2.4 x 2.0 inches
