Yamaha fzs 600 1998 User Manual

7-48
7 Nm (0.7 mkg)
10 Nm (1.0 mkg)
23 Nm (2.3 mkg)
7 Nm (0.7 mkg)
Order Job name/Part name Q’ty Remarks
1
2
3
4
5
6
7
8
9
10
11
12
13

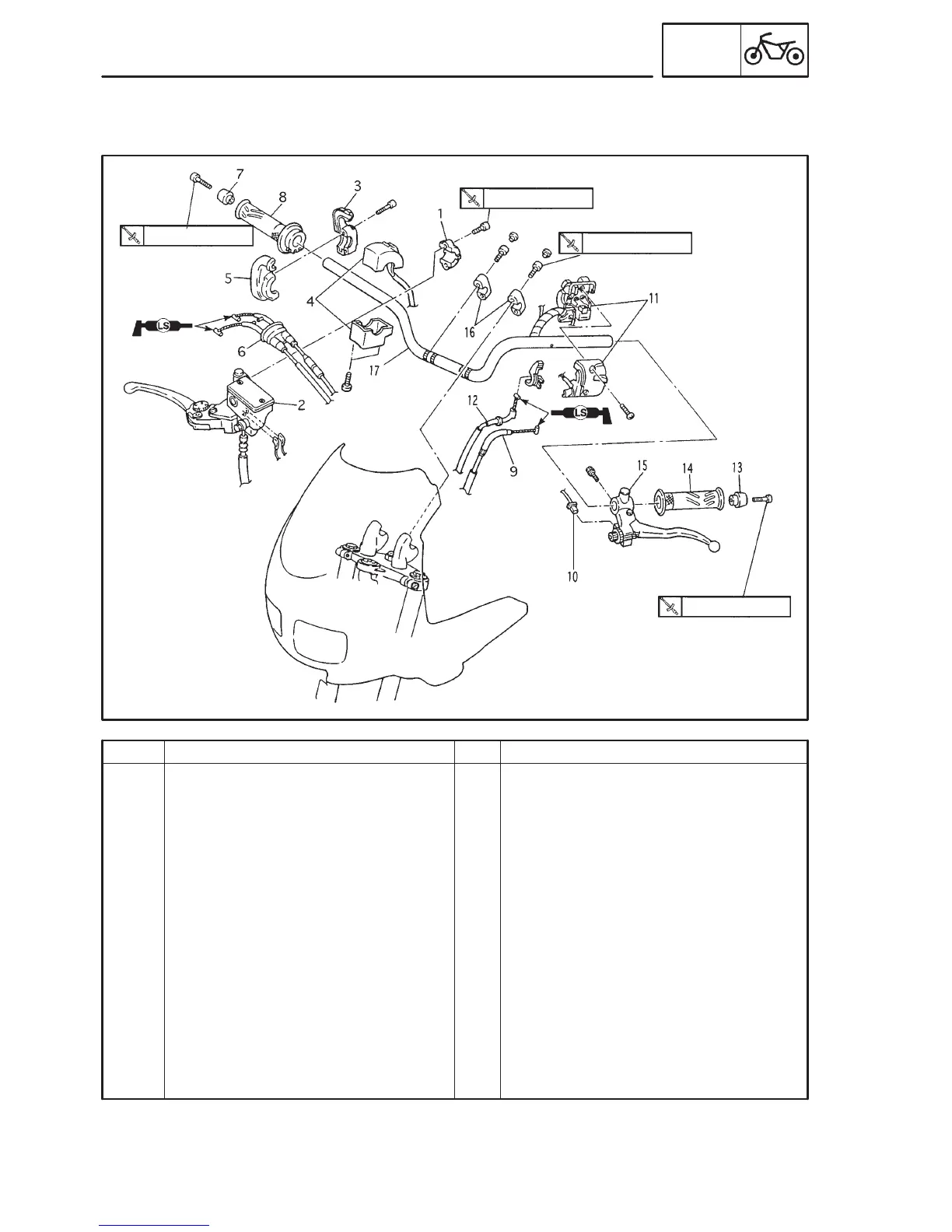

Removing the handle bar
Master cylinder bracket
Master cylinder assembly
Throttle cable housing cover
Handle bar switch (right)
Throttle cable housing
Throttle cable
Grip end
Grip assembly
Clutch cable
Clutch switch
Handle bar switch (left)
Starter cable
Grip end
1
1
1
1
1
1
1
1
1
1
1
1
1
Remove the parts in the order listed.
Refer to “INSTALLING THE
HANDLEBAR” section.
Refer to “INSTALLING THE
HANDLEBAR” section.
HANDLEBAR
CHAS
HANDLEBAR

Yamaha fzs 600 1998 Specifications

General

Year	1998
Manufacturer	Yamaha
Model	FZS 600
Category	Motorcycle
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Tire	160/60-ZR17
Width	740 mm
Wheelbase	1, 440 mm
Displacement	599 cc
Ignition	Digital
Rear Suspension	Swingarm
Front Brakes	Dual 298 mm discs, 2-piston calipers
Rear Brakes	245 mm disc 1 piston caliper
Front Tire	120/70-ZR17
Height	1, 190 mm
Seat Height	790 mm
Fuel Capacity	18 liters
Engine Type	Liquid cooled, 4 stroke, transverse inline 4 cylinder, DOHC, 4 valves per cylinder
Bore x Stroke	62.0 x 49.8 mm / 2.4 x 2.0 inches
