4-66
CRANKSHAFT
ENG
2
2
3
2
2
NOTE:
For example, if the connecting rod “P
1
” and
the crankshaft web “P1” numbers are “4”
and “1” respectively, then the bearing size
for “P
1
” is:
Bearing size for P
1
:
P
1
(connecting rod) – P1 (crankshaft-
web) = 4 – 1 = 3 (brown)
BIG END
BEARING
COLOR CODE
1 2 3 4
blue black brown green
EB412700

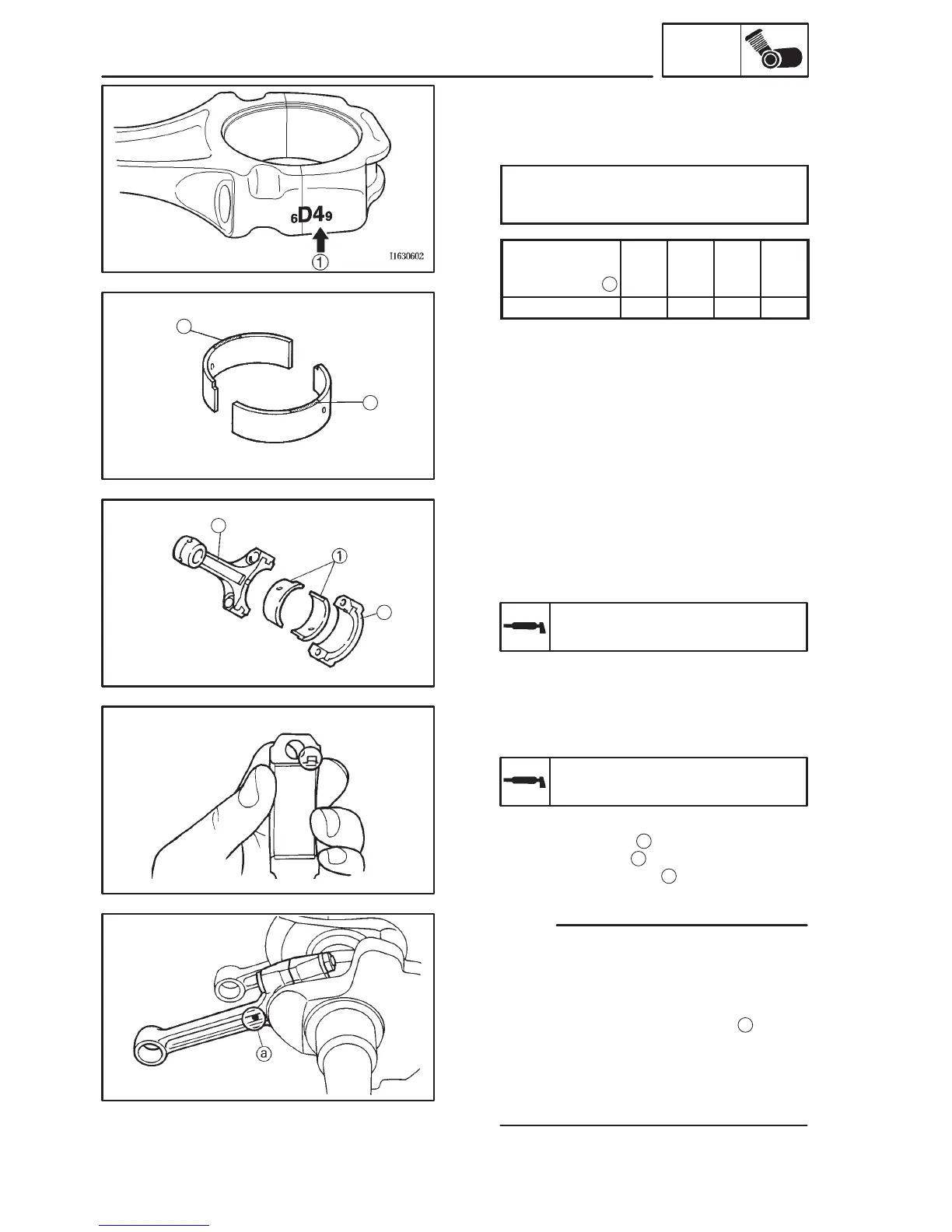

INSTALLING THE CONNECTING RODS
1.Lubricate:
 bolt threads
 nut seats
(with the recommended lubricant)
Recommended lubricant
Molybdenum disulfide grease
2.Lubricate:
 crankshaft pins
 big end bearings
 connecting rod inner surface
(with the recommended lubricant)
Recommended lubricant
Engine oil
3.Install:
 big end bearings
1
 connecting rods
2
 connecting rod caps
3
(onto the crankshaft pins)
 Align the projections on the big end bear-
ings with the notches in the connecting
rods and connecting rod caps.
 Be sure to reinstall each big end bearing in
its original place.
 Make sure that the “Y” marks
a
on the
connecting rods face towards the left side
of the crankshaft.
 Make sure that the characters on both the
connecting rod and connecting rod cap are
aligned.

Yamaha fzs 600 1998 Specifications

General

Year	1998
Manufacturer	Yamaha
Model	FZS 600
Category	Motorcycle
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Tire	160/60-ZR17
Width	740 mm
Wheelbase	1, 440 mm
Displacement	599 cc
Ignition	Digital
Rear Suspension	Swingarm
Front Brakes	Dual 298 mm discs, 2-piston calipers
Rear Brakes	245 mm disc 1 piston caliper
Front Tire	120/70-ZR17
Height	1, 190 mm
Seat Height	790 mm
Fuel Capacity	18 liters
Engine Type	Liquid cooled, 4 stroke, transverse inline 4 cylinder, DOHC, 4 valves per cylinder
Bore x Stroke	62.0 x 49.8 mm / 2.4 x 2.0 inches
