Yamaha fzs 600 1998 User Manual

4-8
CAMSHAFT
ENG
2
NOTE:
NOTE:
EB401102

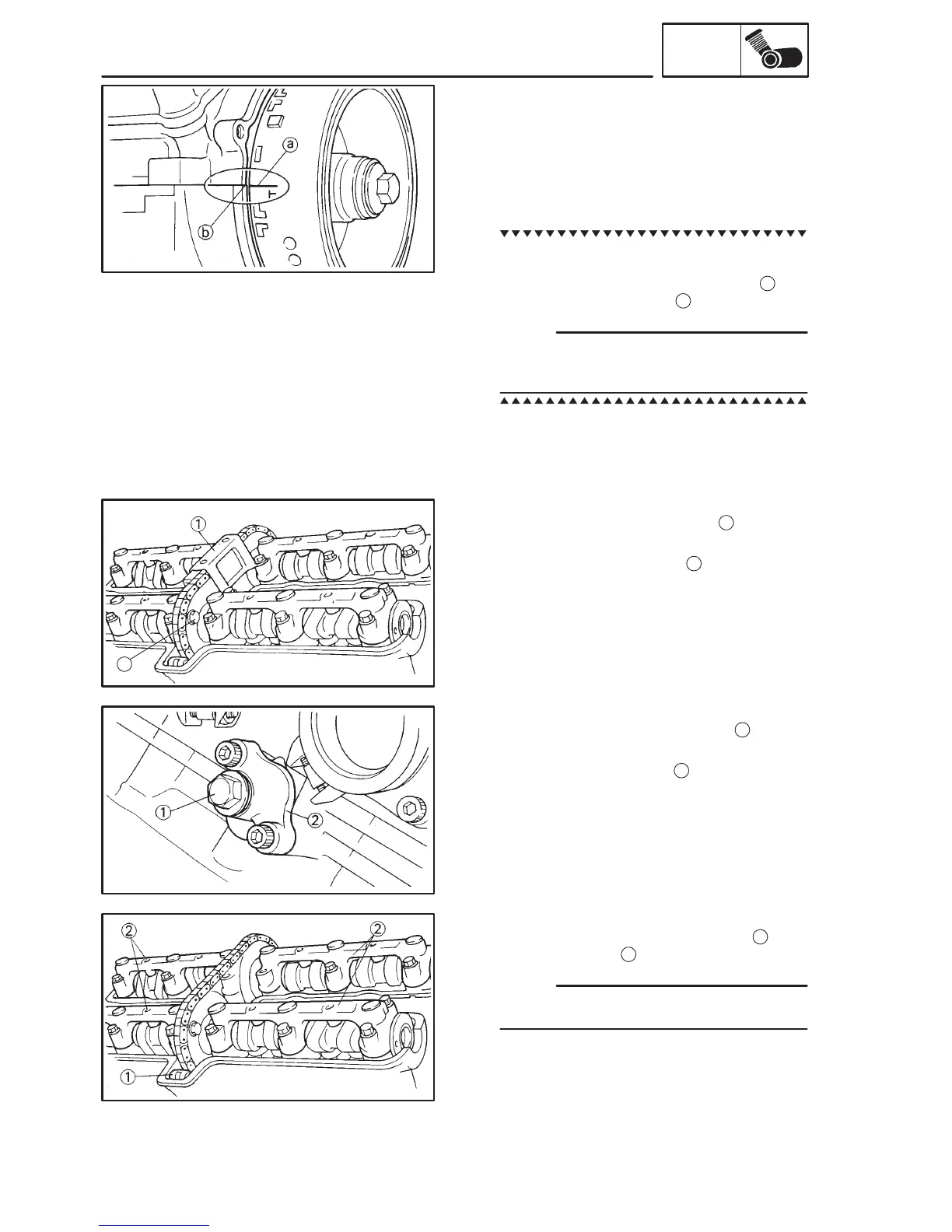

REMOVING THE CAMSHAFTS
1.Remove:
 magneto cover
2.Align:
 “T” mark on the magneto rotor
(with the stationary pointer on the crank-
case)
a. Turn the crankshaft counterclockwise.
b. When piston #1 is at TDC on the com-
pression stroke, align the “T” mark
a
with
the stationary pointer
b
.
TDC on the compression stroke can be
found when the camshaft lobes are turned
away from each other.
3.Remove:
 timing chain guide (top side)
1
4.Loosen:
 camshaft sprocket bolts
2
5.Loosen:
 timing chain tensioner cap bolt
1
6.Remove:
 timing chain tensioner
2
7.Remove:
 timing chain guide (exhaust side)
1
 camshaft caps
2
For reference during installation, put identifi-
cation marks on each camshaft cap.

Yamaha fzs 600 1998 Specifications

General

Year	1998
Manufacturer	Yamaha
Model	FZS 600
Category	Motorcycle
Transmission	6-speed
Final Drive	Chain
Front Suspension	Telescopic fork
Rear Tire	160/60-ZR17
Width	740 mm
Wheelbase	1, 440 mm
Displacement	599 cc
Ignition	Digital
Rear Suspension	Swingarm
Front Brakes	Dual 298 mm discs, 2-piston calipers
Rear Brakes	245 mm disc 1 piston caliper
Front Tire	120/70-ZR17
Height	1, 190 mm
Seat Height	790 mm
Fuel Capacity	18 liters
Engine Type	Liquid cooled, 4 stroke, transverse inline 4 cylinder, DOHC, 4 valves per cylinder
Bore x Stroke	62.0 x 49.8 mm / 2.4 x 2.0 inches
