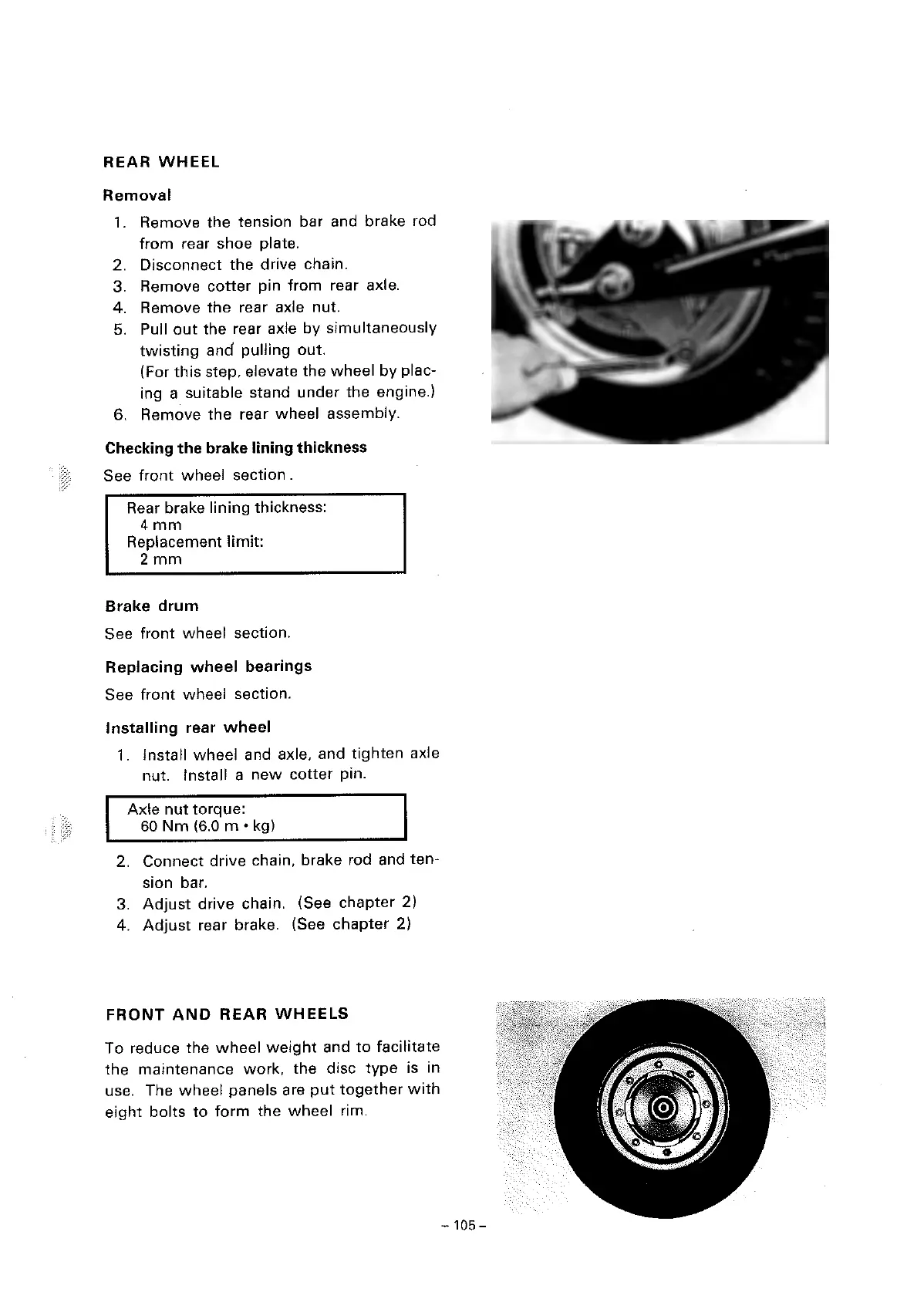

REAR WHEEL
Removal
1. Remove the tension bar and brake rod
from rear shoe plate.
2. Disconnect the drive chain.
3. Remove
cotter pin from rear axle.
4. Remove the rear axle nut.
5. Pull out the rear axle by simultaneously
twisting and pulling out.
(For
this step. elevate the wheel by plac-
ing a suitable stand
under the engine.)
6. Remove
the rear wheel assembly.
Checking
the brake lining thickness
See front wheel section .
Rear brake
lining thickness:
4mm
Replacement limit:
2mm
Brake drum
See front wheel section.
Replacing wheel bearings
See front wheel section.
Installing rear wheel
1. Install wheel and axle, and tighten axle
nut. Install a
new cotter pin.
Axle
nut torque:
60 Nm (6.0 m • kg)
2. Connect drive chain, brake rod and
ten-
sion bar.
3. Adjust drive chain. (See chapter 2)
4.
Adjust rear brake. (See chapter 2)
FRONT AND REAR WHEELS
To reduce the wheel weight and to facilitate
the maintenance work, the disc type is in
use. The
wheel panels are put together with
eight bolts to form the wheel rim.
- 105 -
