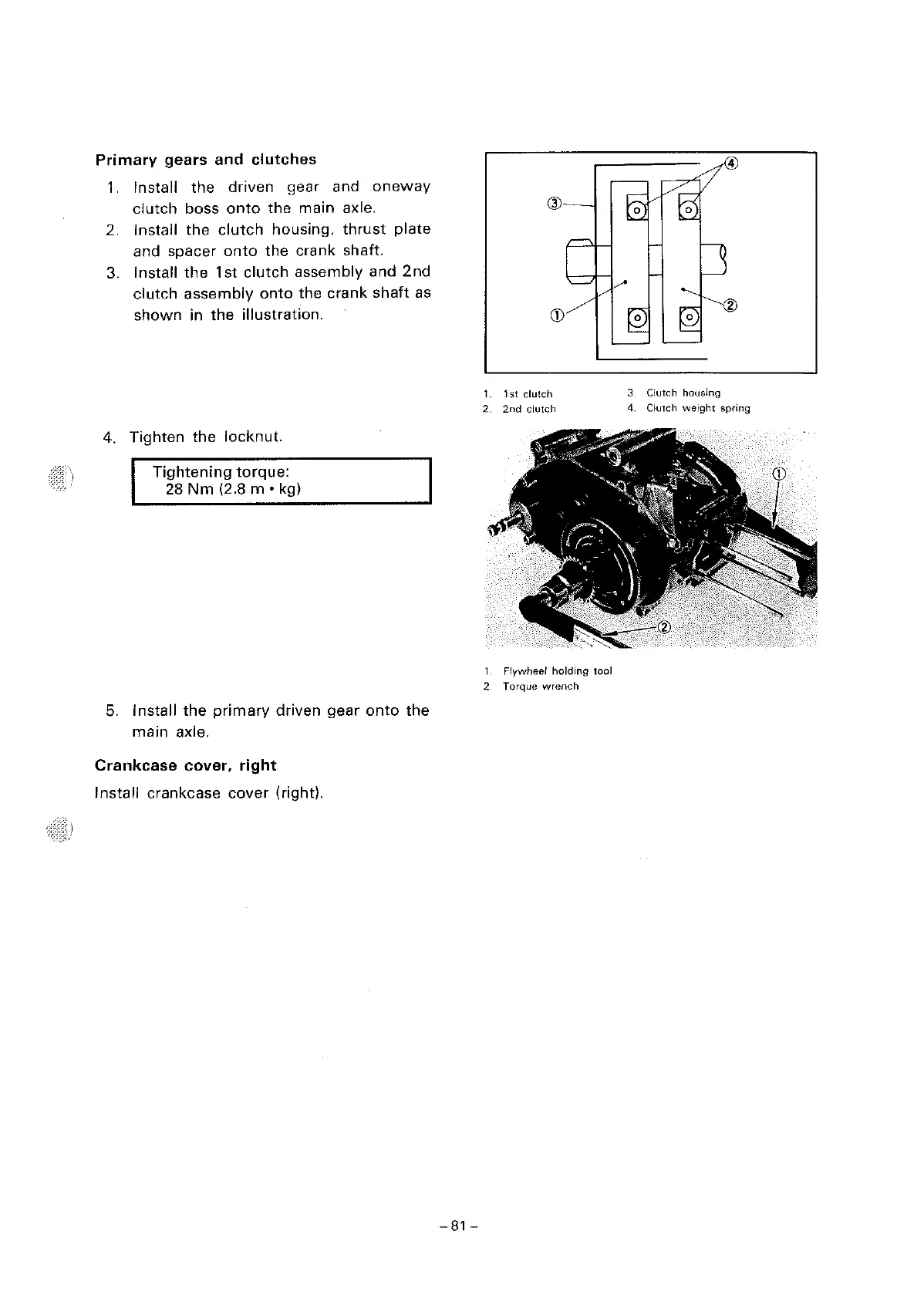

Primary gears and clutches
1. Install the driven gear and oneway
clutch boss onto the main axle.
2. Install
the clutch housing, thrust plate
and spacer onto the crank shaft.
3. Install
the 1st clutch assembly and 2nd
clutch assembly onto the crank shaft as
shown in the illustration.
4. Tighten the locknut.
Tightening torque:
28 Nm (2.8 m • kg)
5. Install the primary driven gear onto the
main axle.
Crankcase cover, right
Install crankcase cover (right).
-81 -
l. 1st clutch
2.
2nd clutch
1 Flywheel holding tool
2 Torque wrench
3 Clutch housing
4. Clutch weight spring
